Xerox WorkCentre 5230 User Manual

February, 2008
5-11
WorkCentre 5225, 5230
PL 2.4
Parts List
Launch Version

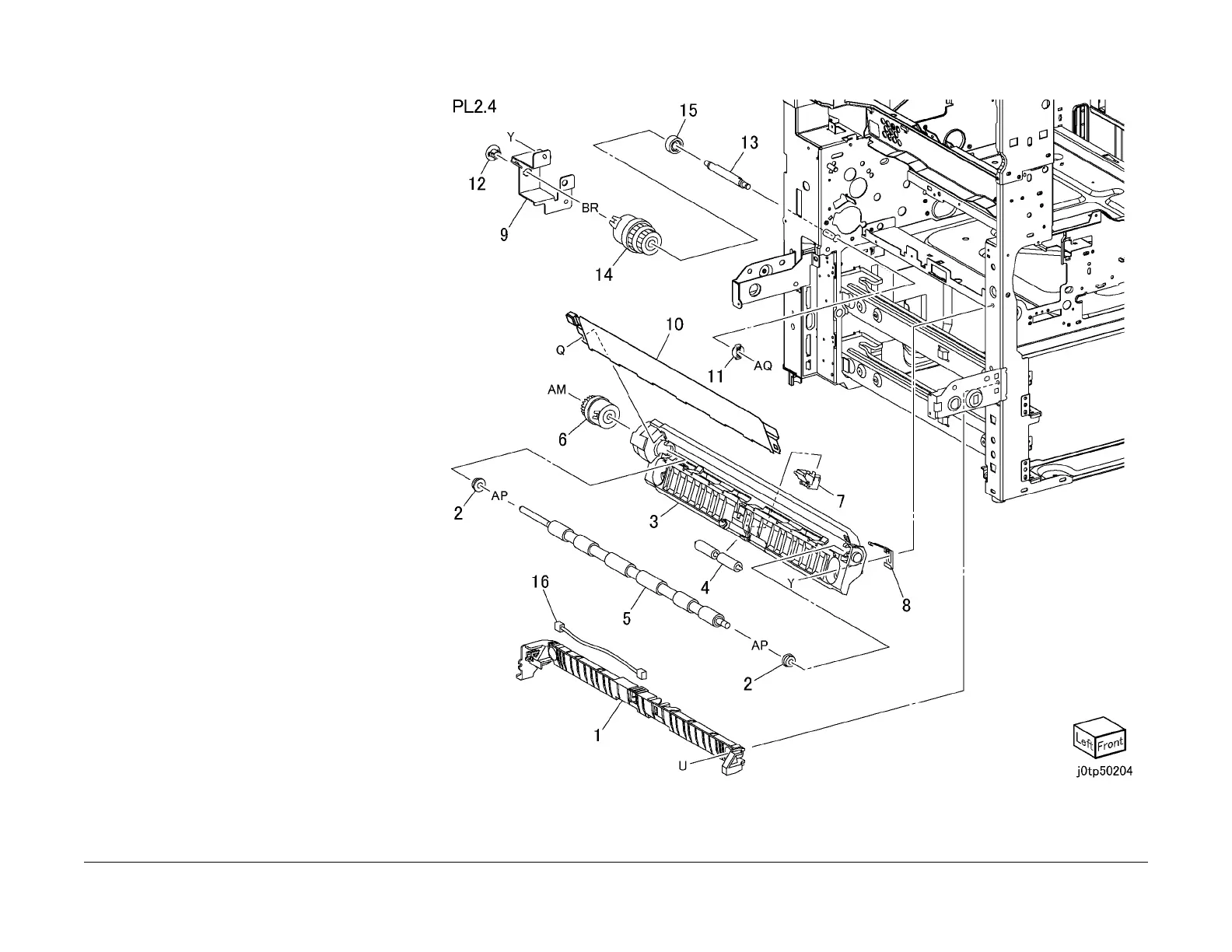

PL 2.4 Registration
Item Part Description
1 054K35390 Chute
2 013E26760 Bearing
3 054E23940 Registration Chute
4 059E98590 Idler Roll
5 059K31021 Registration Roll
6 121K32660 Registration Roll
7 130K64270 Registration Sensor
8 – Earth Plate (Not Spared)
9 – Bracket (Not Spared)
10 054K23940 Chute Assembly
11 013E26060 Bearing
12 013E26091 Bearing
13 – Shaft (Not Spared)
14 121K32730 Takeaway Roll Clutch (Alternate)
15 007E79320 Gear (19T) (23/28CPM)
16 – Wire Harness (Not Spared)
