Xerox WorkCentre 5230 User Manual

February, 2008
5-94
WorkCentre 5225, 5230
PL 23.7
Launch Version
Parts List

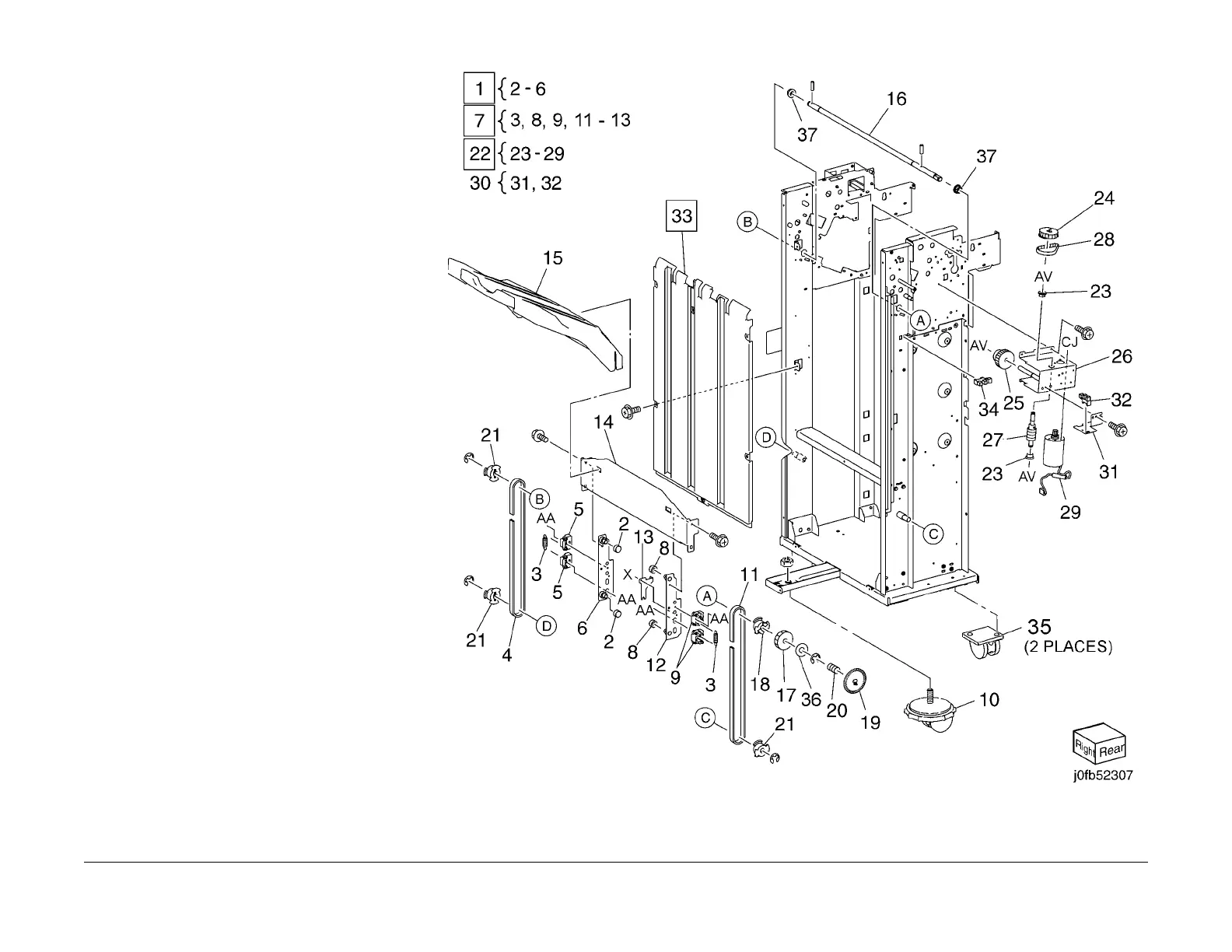

PL 23.7 Finisher Stacker
Item Part Description
1 041K95980 Front Carriage Assembly (REP
16.2.27)
2 – Bearing (P/O PL 23.7 Item 1)
3 809E56850 Spring
4 – Front Stacker Belt (P/O PL 23.7
Item 1)
5 – Clamp (P/O PL 23.7 Item 1)
6 – Front Carriage Assembly (P/O PL
23.7 Item 1)
7 041K95990 Rear Carriage Assembly (REP
16.2.27)
8 – Bearing (P/O PL 23.7 Item 7)
9 – Clamp (P/O PL 23.7 Item 7)
10 017K94620 Knob Caster Assembly
11 – Rear Stacker Belt (P/O PL 23.7
Item 7)
12 – Rear Carriage (P/O PL 23.7 Item 7)
13 – Actuator (P/O PL 23.7 Item 7)
14 – Carriage Tray (Not Spared)
15 050K61104 Stacker Tray (REP 16.2.16)
16 – Shaft (Not Spared)
17 807E08990 Gear
18 020E37710 Pulley
19 146E90650 Encoder
20 809E56860 Spring
21 020E37720 Pulley (T18)
22 068K58303 Stacker Elevator Motor Assembly
(REP 16.2.15)
23 – Bearing (P/O PL 23.7 Item 22)
24 020E44181 Pulley (T60)
25 – Gear (Z15/Z37) (P/O PL 23.7 Item
22)
26 – Motor Bracket (P/O PL 23.7 Item
22)
27 – Worm Shaft (P/O PL 23.7 Item 22)
28 – Belt (P/O PL 23.7 Item 22)
29 – Stacker Elevator Motor (P/O PL
23.7 Item 22)
30 – Stacker Encoder Sensor Assembly
(Not Spared)
31 – Bracket (P/O PL 23.7 Item 30)
32 – Stacker Encoder Sensor (P/O PL
23.7 Item 30)
33 – Stacker Upper Cover (REP 16.2.8)
34 930W00111 Stacker No Paper Sensor
35 017K94630 Caster Assembly
36 251W31178 Washer
37 413W79359 Bearing
