Xerox WorkCentre 5230 User Manual

February, 2008
4-115
WorkCentre 5225, 5230
REP 15.4.1, REP 15.4.2
Repairs and Adjustments
Launch Version

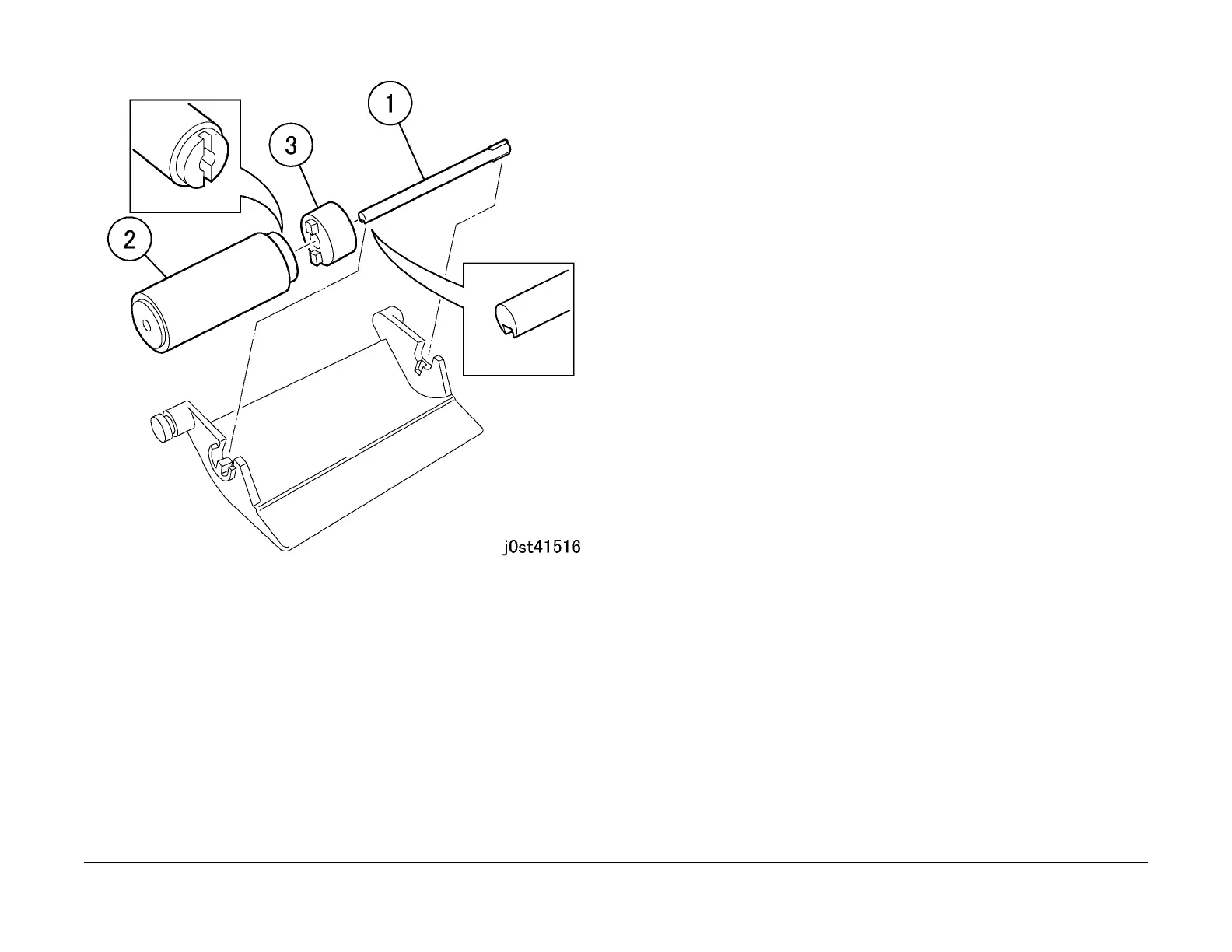

Figure 4 Installing the Retard Roll
2. Install the Retard Roll into the DADF.
REP 15.4.2 Top Cover Assembly
Parts List on PL 15.5
Removal
WARNING
To avoid personal injury or shock, do not perform repair or adjustment with electrical
power applied to the machine.
1. Open the Top Cover Assembly.
2. Remove the following covers:
• DADF Front Cover (REP 15.2.3)
• DADF Rear Cover (REP 15.2.4)
3. Remove the Feed Upper Chute. (Figure 1)
1. Remove the screw (1).
2. Remove the Feed Upper Chute.
3. Take note of the following at installation:
A. Insert the Bosses into the U-grooves.
B. Insert the Tabs into the Tab Slots.
