Xerox WorkCentre 5230 User Manual

February, 2008
4-140
WorkCentre 5225, 5230
REP 16.2.8, REP 16.2.9
Launch Version
Repairs and Adjustments
REP 16.2.8 Stacker Upper Cover
Parts List on PL 23.7
Removal
WARNING
To avoid personal injury or shock, do not perform repair or adjustment with electrical
power applied to the machine.
1. Remove the Stacker Tray. (REP 16.2.16)
2. Remove the Stacker Lower Cover. (REP 16.2.7)
3. Remove the Screws (6). (Figure 1)
4. Remove the Stacker Upper Cover.

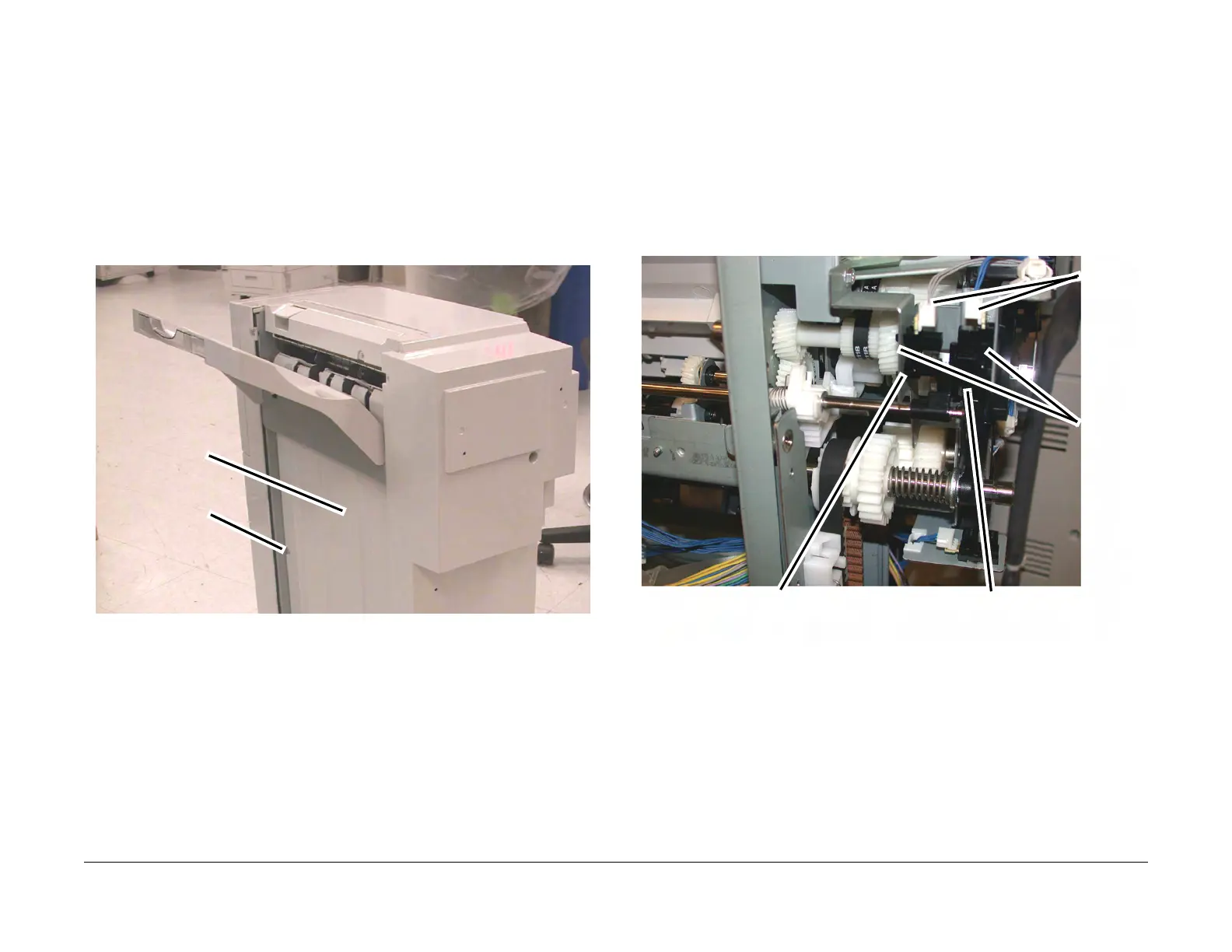

Figure 1 Removing the Stacker Upper Cover (j0st41700)
Replacement
1. Reverse the removal procedure for replacement.
REP 16.2.9 Stack Height Sensors 1 and 2
Parts List on PL 23.11
Removal
WARNING
To avoid personal injury or shock, do not perform repair or adjustment with electrical
power applied to the machine.
1. Remove the Rear Upper Cover. (REP 16.2.3)
2. Remove the Stack Height Sensor 1 or 2. (Figure 1)
a. Disconnect the connector.
b. Remove the Sensor.
Figure 1 Removing the Stack Height Sensor 1 or 2
Stacker Upper Cover
Screw (6)
1
Discon-
nect the
connec-
tor
2
Remove
the Sen-
sor
Stack Height Sen-
sor 2
Stack Height Sensor 1
