Image Quality
IQS8 Trail Edge Deletion Specification
Procedure
Use Side A of the Standard Test Pattern.
The image deleted intentionally along the trail edge must be
2mm from the trail edge of the copy (Figure 1). (maximum is
4mm)
Figure 1 Trail Edge Deletion(j0st3211)
IQS9 Side Edge Deletion Specification
Procedure
Use Side A of the Standard Test Pattern.
The image deleted intentionally along both of side edge must be 2mm from the side edge of the copy (Figure 1). (maximum is
4mm)

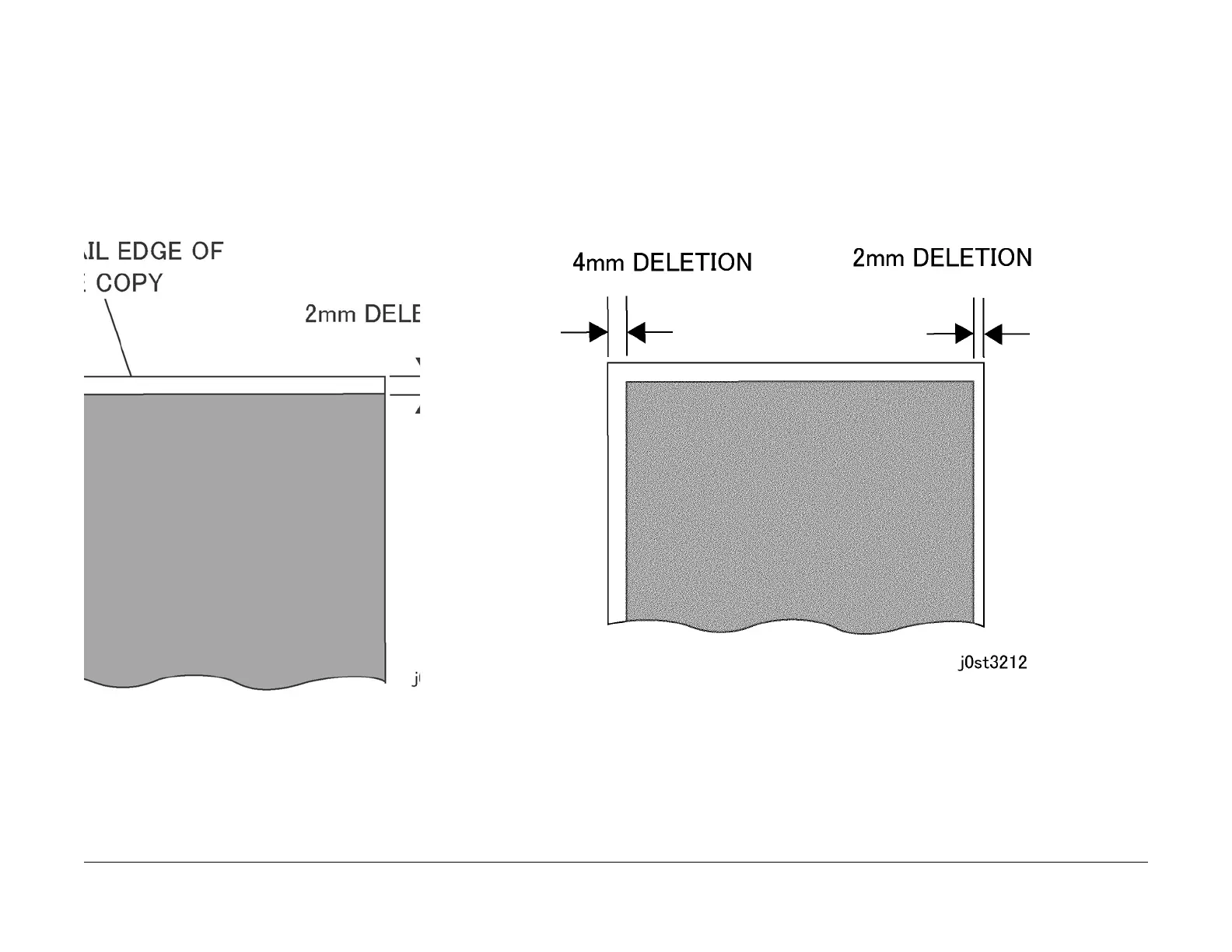

Figure 1 Side Edge Deletion(j0st3212)

Xerox WorkCentre 5230 Specifications

General

Maximum print size	A3 (297 x 420 mm)
Standard input capacity	500 sheets
Internal memory	No MB
Type	Digital copier
