February, 2008
4-13
WorkCentre 5225, 5230
REP 2.4.1, REP 2.5.1
Repairs and Adjustments
Launch Version

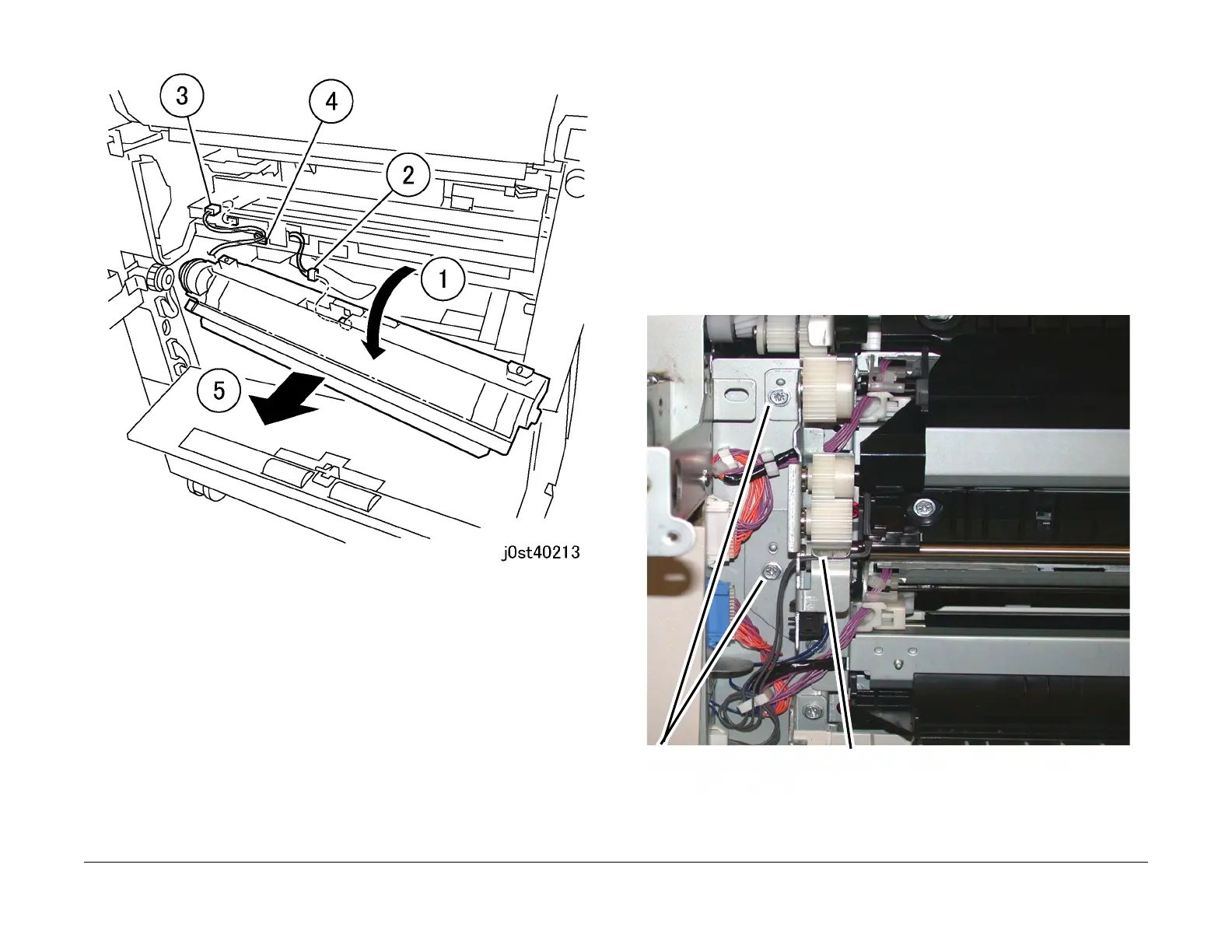

Figure 2 Removing the Registration Assembly (j0st40213)
Replacement
1. To install, carry out the removal steps in reverse order.
REP 2.5.1 Takeaway Roll
Parts List on PL 2.5
Removal
WARNING
To avoid personal injury or shock, do not perform repair or adjustment with electrical power
applied to the machine.
1. Remove the MPT Assembly. (REP 7.1.1)
2. Disconnect the HCF (Paper Tray 6) and move it aside.
3. Remove the L/H Upper Cover. (REP 2.6.2)
4. Open the L/H Lower Cover.
5. Remove the Gear Assembly. (Figure 1)
a. Remove the wire harness from the Gear Assembly holder
b. Remove the screws (2)
Figure 1 Removing the Gear Assembly
6. Removing the Gear Assembly (Figure 2)
b
Remove the screws (2)
a
Remove the wire harness
To Next Page
