4-92
WorkCentre 5225, 5230
REP 13.3.1
Launch Version
Repairs and Adjustments

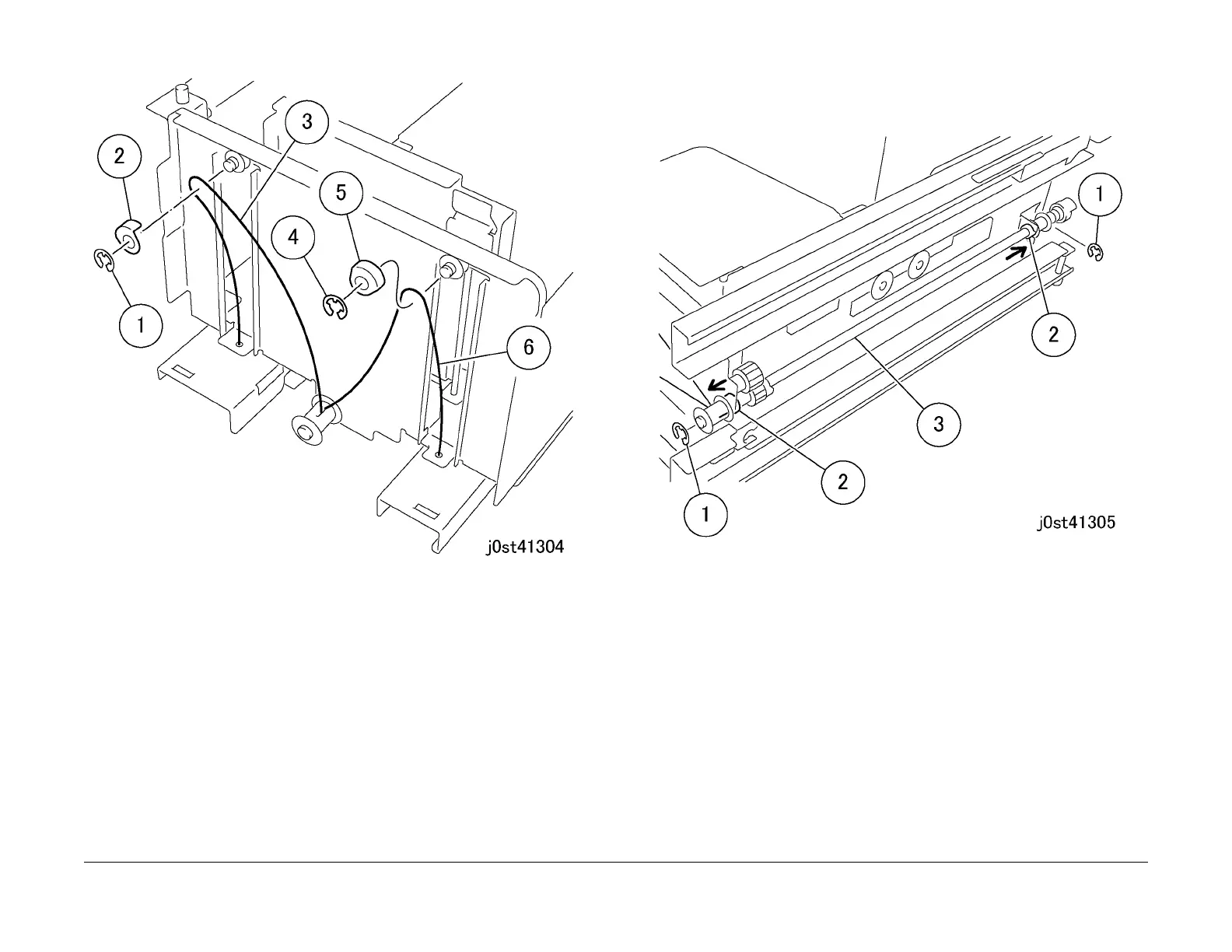

Figure 2 Removing the Tray Cable (j0st41304)
4. Remove the Left Shaft Assembly to remove the Tray Cable. (Figure 3)
1. Remove the E-Clip.
2. Slide the bearings (x2).
3. Remove the Lift Shaft Assembly.
Figure 3 Removing the Left Shaft Assembly to remove the Tray Cable (j0st41305)
Replacement
1. To install, carry out the removal steps in reverse order.
