Xerox WorkCentre 5230 User Manual

February, 2008
5-44
WorkCentre 5225, 5230
PL 12.2
Launch Version
Parts List

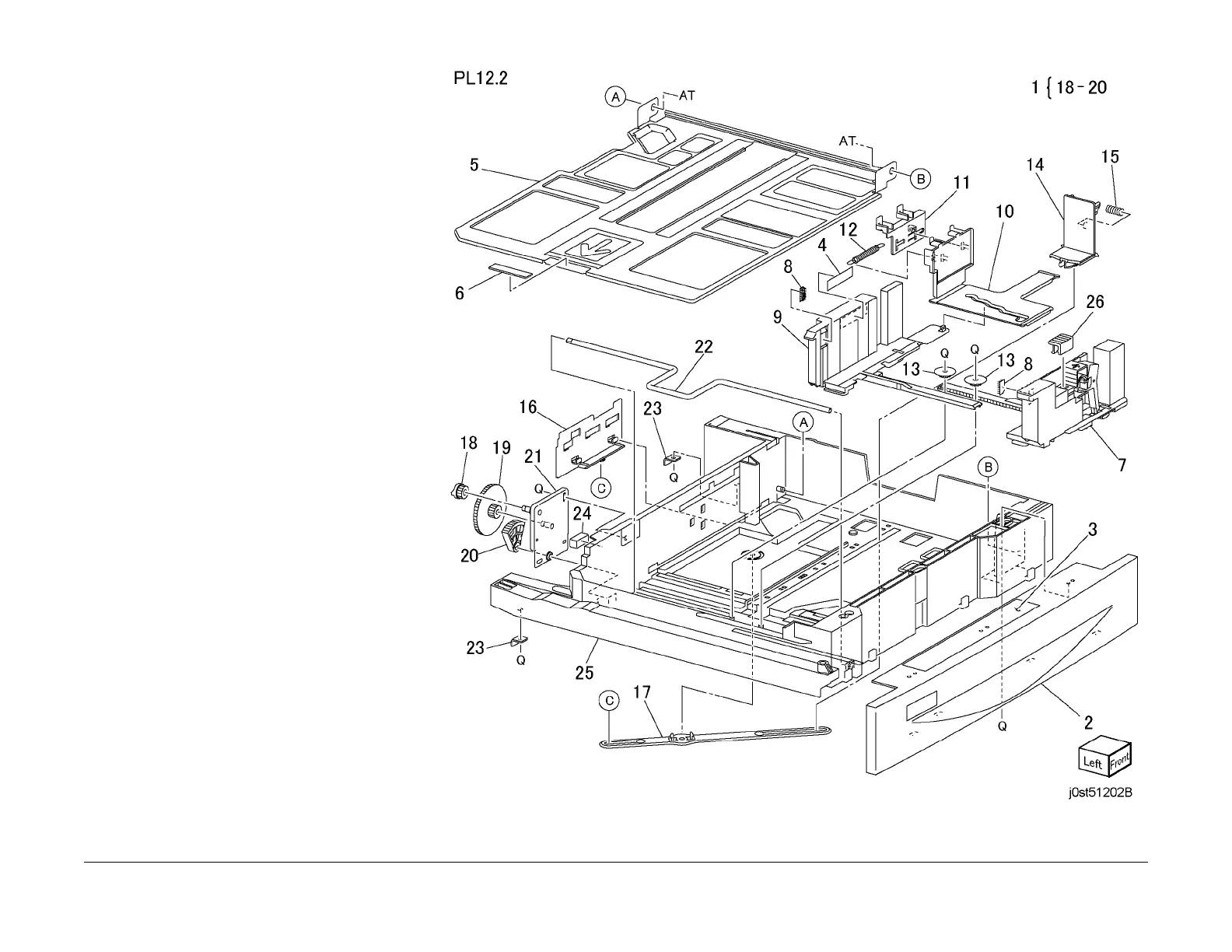

PL 12.2 Tray 3/4 Assembly-2 Tray
Item Part Description
1 604K20541 Tray Gear Kit
2 – Tray Cover (Not Spared)
3 – Label (Instruction) (P/O PL 12.1
Item 7)
4 – Label (Max) (P/O PL 12.1 Item 7)
5 – Bottom Plate (P/O PL 12.1 Item 1)
6 – Bottom Pad (P/O PL 12.1 Item 1)
7 – Front Side Guide (P/O PL 12.1 Item
1)
8 – Tray Pad (P/O PL 12.1 Item 1)
9 – Rear Side Guide (P/O PL 12.1 Item
1)
10 – Side Guide Actuator (P/O PL 12.1
Item 1)
11 – Guide Actuator (P/O PL 12.1 Item
1)
12 – Spring (P/O PL 12.1 Item 1)
13 – Pinion Gear (P/O PL 12.1 Item 1)
14 – End Guide (P/O PL 12.1 Item 1)
15 – Spring (P/O PL 12.1 Item 1)
16 – End Guide Actuator (P/O PL 12.1
Item 1)
17 – Link (P/O PL 12.1 Item 1)
18 – Coupling Gear (13T) (P/O PL 12.2
Item 1)
19 – Gear (13T/60T) (P/O PL 12.2 Item
1)
20 – Sector Gear (P/O PL 12.2 Item 1)
21 – Bracket (P/O PL 12.1 Item 1)
22 – Lift Up Shaft (P/O PL 12.1 Item 1)
23 – Stopper (P/O PL 12.1 Item 1)
24 – Seal (P/O PL 12.1 Item 1)
25 – Tray (P/O PL 12.1 Item 1)
26 010E94240 Slide Lock

Xerox WorkCentre 5230 Specifications

General

Maximum print size	A3 (297 x 420 mm)
Standard input capacity	500 sheets
Internal memory	No MB
Type	Digital copier
