Xerox WorkCentre 5230 User Manual

February, 2008
4-138
WorkCentre 5225, 5230
REP 16.2.5
Launch Version
Repairs and Adjustments
4. Make sure the Latch Hook and Latch Pin are positioned as shown. (Figure 5)

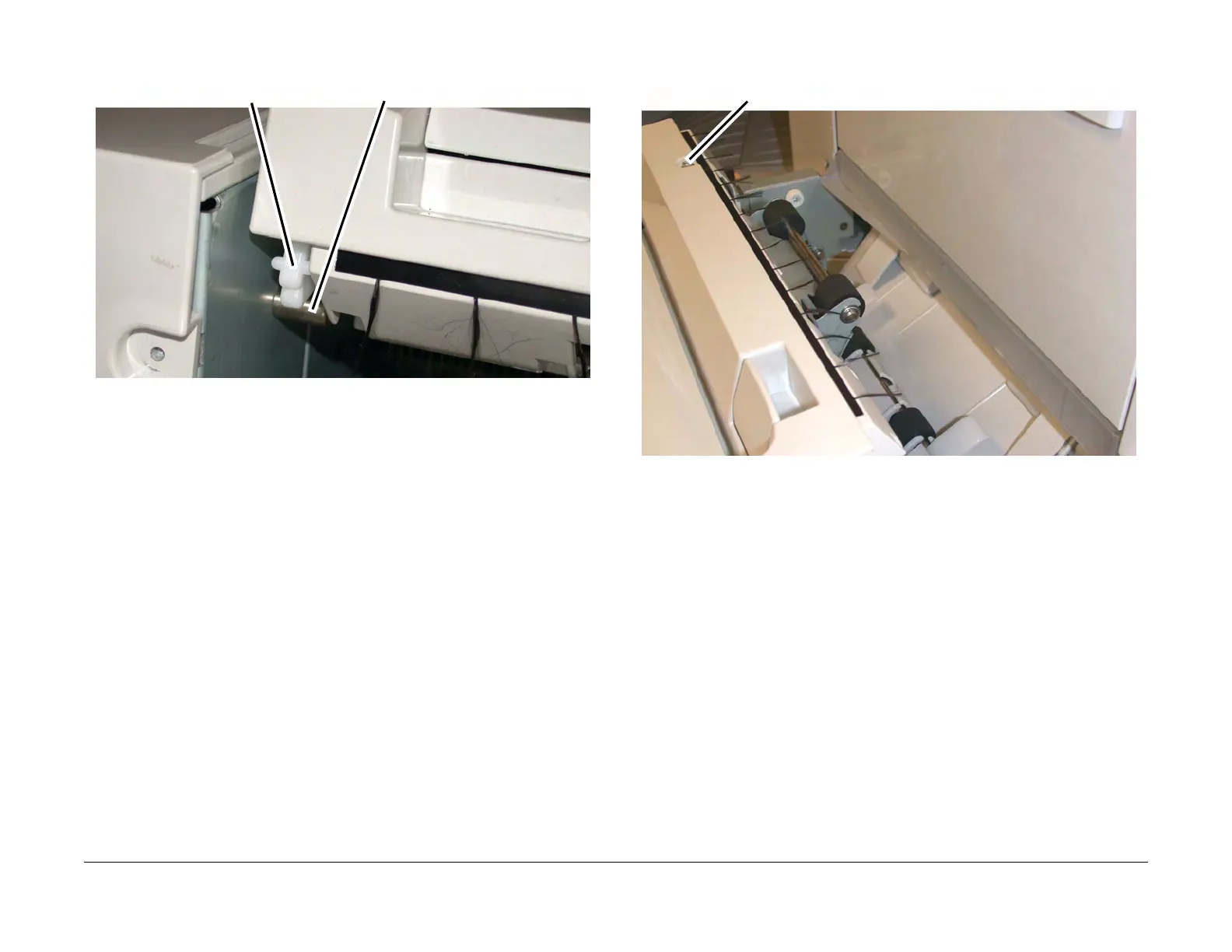

Figure 5 Positioning the Latch Hook and Latch Pin (j0st41689)
5. Install the Retaining Screw (1). (Figure 6)
Figure 6 Installing the Retaining Screw (j0st41683)
Latch Hook Latch Pin
Retaining Screw

Xerox WorkCentre 5230 Specifications

General

Maximum print size	A3 (297 x 420 mm)
Standard input capacity	500 sheets
Internal memory	No MB
Type	Digital copier
