February, 2008
5-19
WorkCentre 5225, 5230
PL 4.2
Parts List
Launch Version

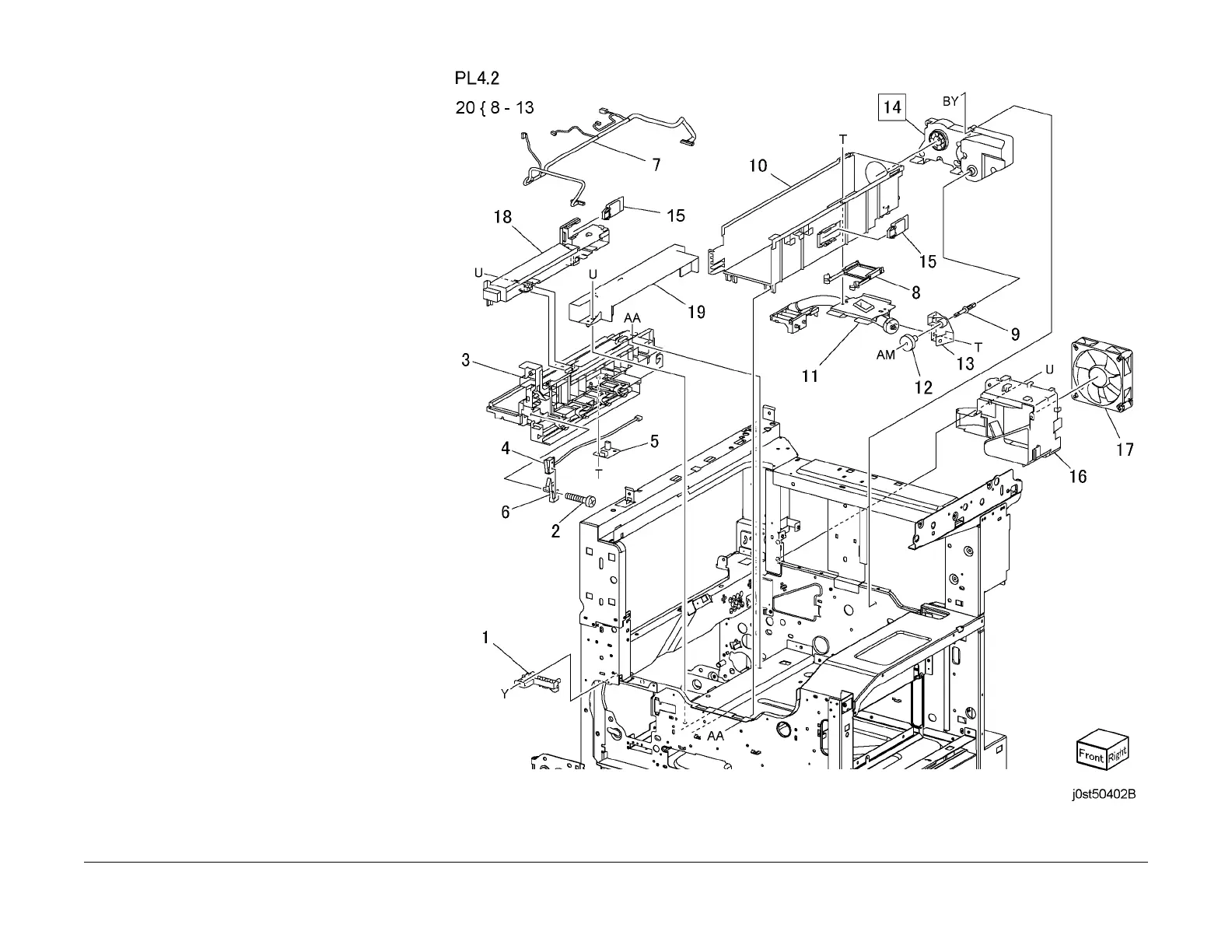

PL 4.2 Toner System
Item Part Description
1 – Stopper (Not Spared)
2 – Screw (Not Spared)
3 – Guide Assembly (Not Spared)
4 110K11810 Xerographics Interlock Switch
5 130K87980 HUM and Temp Sensor
6 – Plate (Not Spared)
7 962K13060 Wire Harness
8 – Stopper (P/O PL 4.2 Item 20)
9 – Shaft (P/O PL 4.2 Item 20)
10 – Toner Box (P/O PL 4.2 Item 20)
11 – Dispense Motor (P/O PL 4.2 Item
20)
12 807E01360 Gear (13T)
13 849E23310 Support
14 127K38040 Dispense Motor (REP 4.2.1)
15 160K95831 Toner Crum PWB, Xerographic
Crum PWB
16 – Duct (Not Spared)
17 127K37881 Fuser Fan
18 – Housing Assembly (Not Spared)
19 – Housing Assembly (Not Spared)
20 032K96941 Toner Box Assembly
To Next Page
