Xerox WorkCentre 5230 User Manual

February, 2008
5-80
WorkCentre 5225, 5230
PL 22.3
Launch Version
Parts List

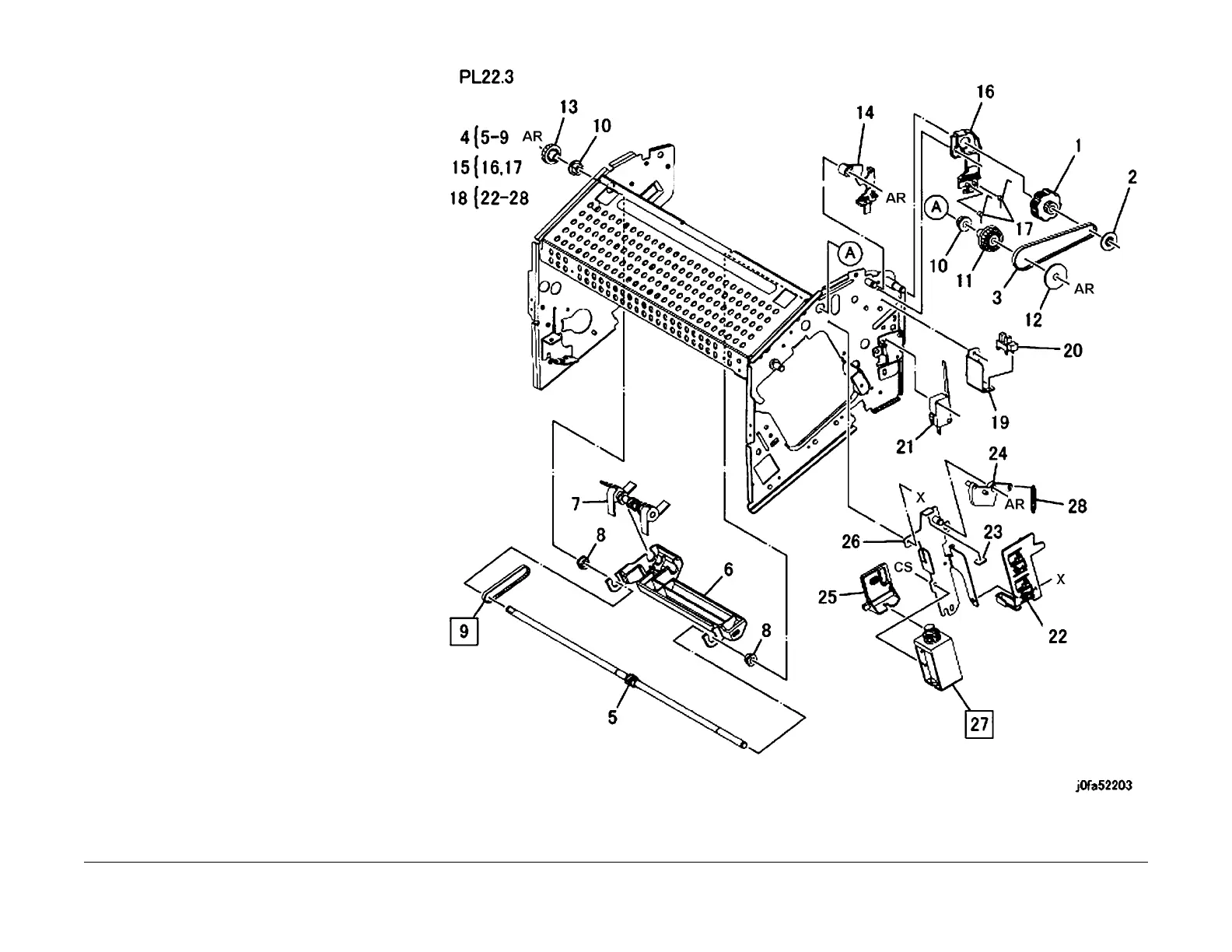

PL 22.3 Stacker Base Assembly (Part
1 of 5)
Item Part Description
1 003E65500 Knob
2 005E89470 Collar
3 423W10454 Belt
4 012K96370 Link Shaft Assembly
5 – Link Shaft (P/O PL 22.3 Item 4)
6 012E16150 Support
7 – Sub Paddle Shaft Assembly (P/O
PL 22.3 Item 4)
8 – Bearing (P/O PL 22.3 Item 4)
9 423W06054 Paddle Belt (REP 22.3.1)
10 413W75959 Bearing
11 020K13900 Pulley
12 005E89490 Collar
13 807E13260 Gear (21T)
14 120E27240 Actuator
15 802K85560 Knob Cover Assembly
16 – Knob Cover (P/O PL 22.3 Item 15)
17 – Spring (P/O PL 22.3 Item 15)
18 012K94990 Sub Paddle Solenoid Assembly
19 – Bracket (Not Spared)
20 130K88780 Finisher Top Cover Interlock
Sensor
21 110K12980 Finisher Top Cover Interlock (+24V)
22 – Support (P/O PL 22.3 Item 18)
23 – Cushion (P/O PL 22.3 Item 18)
24 – Link (P/O PL 22.3 Item 18)
25 – Arm (P/O PL 22.3 Item 18)
26 – Bracket (P/O PL 22.3 Item 18)
27 121K34620 Sub Paddle Solenoid (REP 22.3.2)
28 – Spring (P/O PL 22.3 Item 18)
