Xerox WorkCentre 5230 User Manual

February, 2008
4-71
WorkCentre 5225, 5230
REP 11.5.1
Repairs and Adjustments
Launch Version

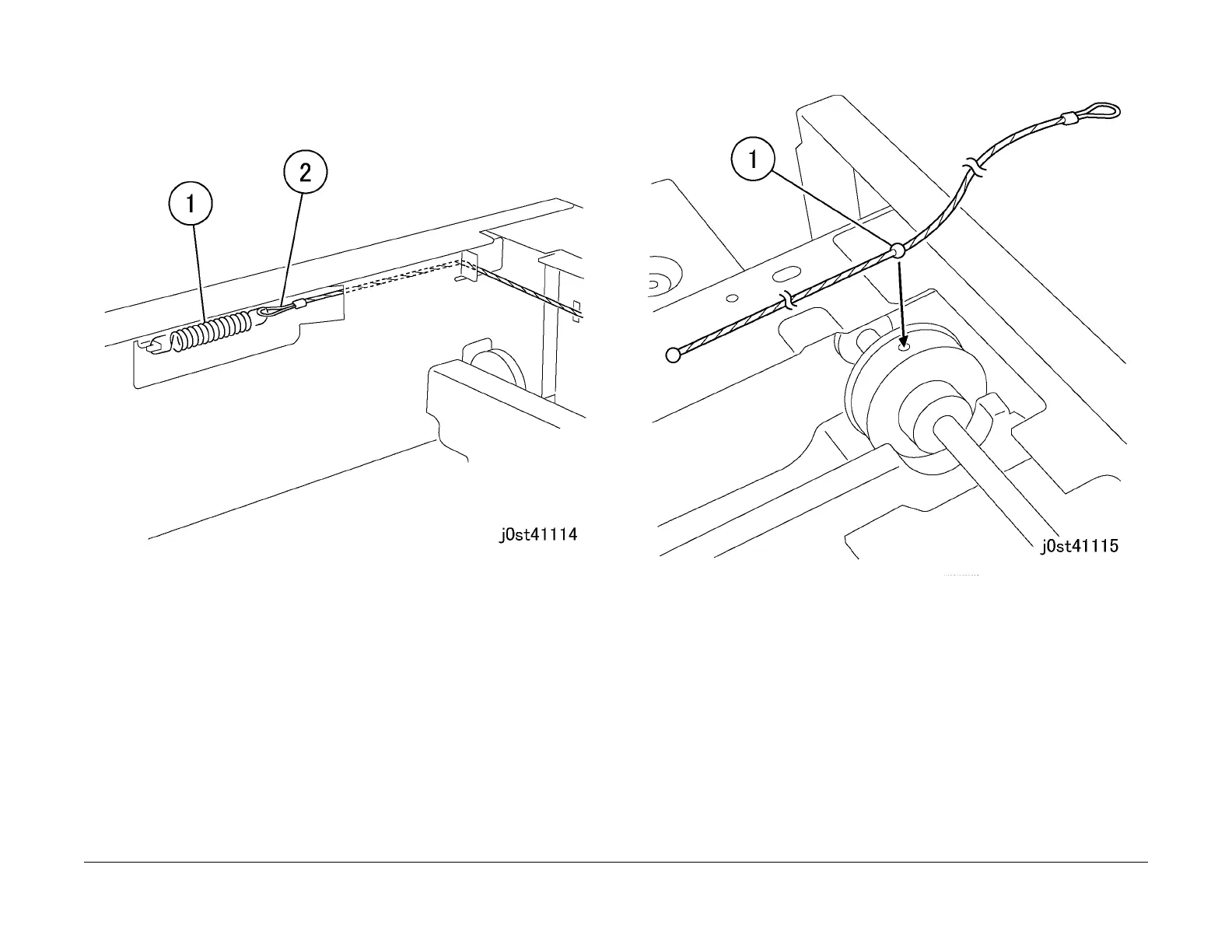

Figure 4 Removing the spring (j0st41114)
Replacement
1. Wind the Carriage Cable around the pulley. (Figure 5, Figure 6, Figure 7)
1.Insert the Carriage Cable ball into the ditch of the pulley.
2.Wind the spring end of the cable around the pulley for 1.5 rounds.
3.Fix the cable at the spring end on the frame with tape.
4.Wind the cable at the ball end around the pulley for 2 rounds.
5.Fix the cable on the pulley with tape to prevent it from moving.
Figure 5 Winding the Carriage Cable around the pulley. 1/3 (j0st41115)
