February, 2008
5-60
WorkCentre 5225, 5230
PL 15.1
Launch Version
Parts List

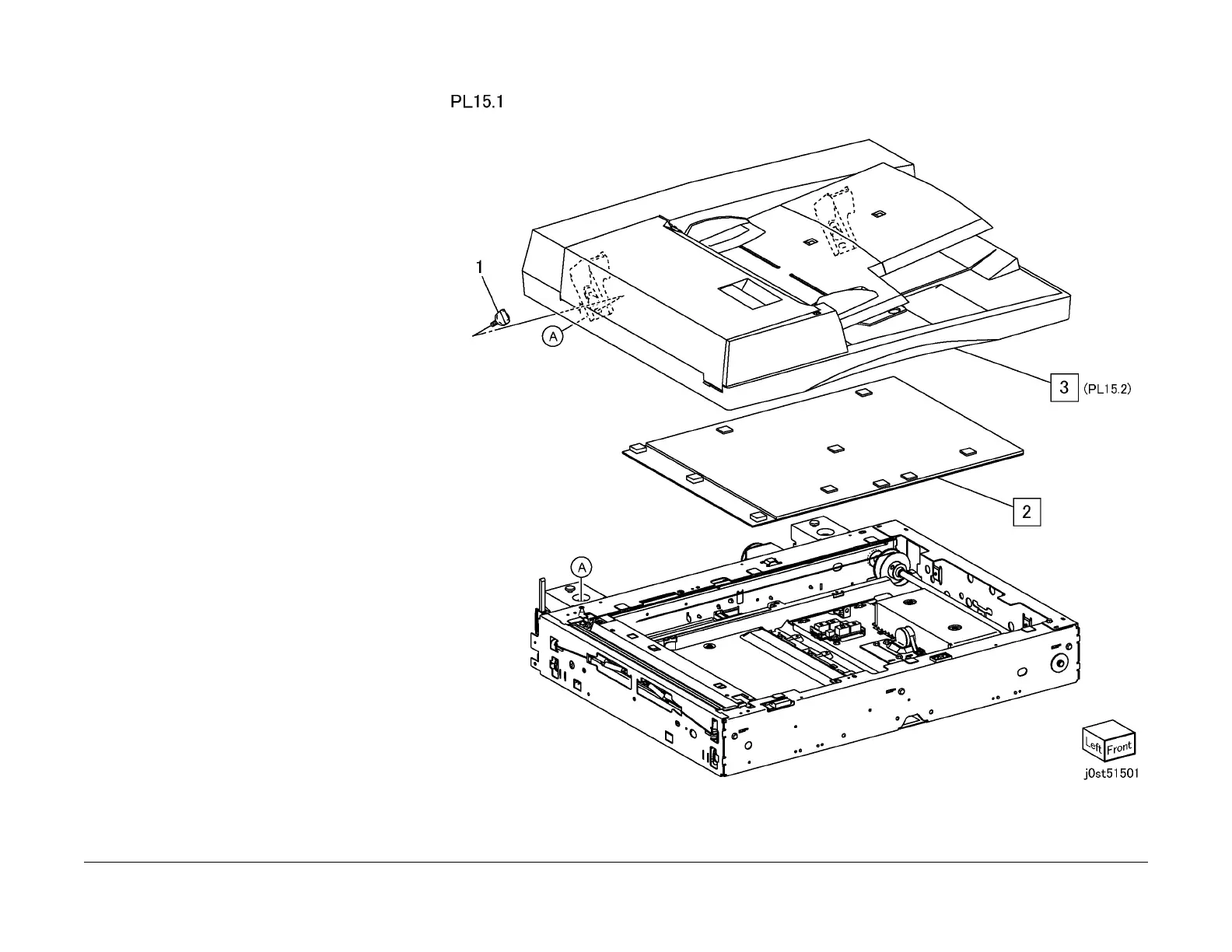

PL 15.1 DADF Accessory
Item Part Description
1 – Knob Screw (Not Spared)
2 – DADF Platen Cushion (Not Spared)
(REP 15.1.2)
3 059K54576 DADF (With Item 2 Without PL 15.3
Item 31) (PL 15.2) (REP 15.1.1)
