WorkCentre 5225, 5230
PL 23.12
Parts List
Launch Version

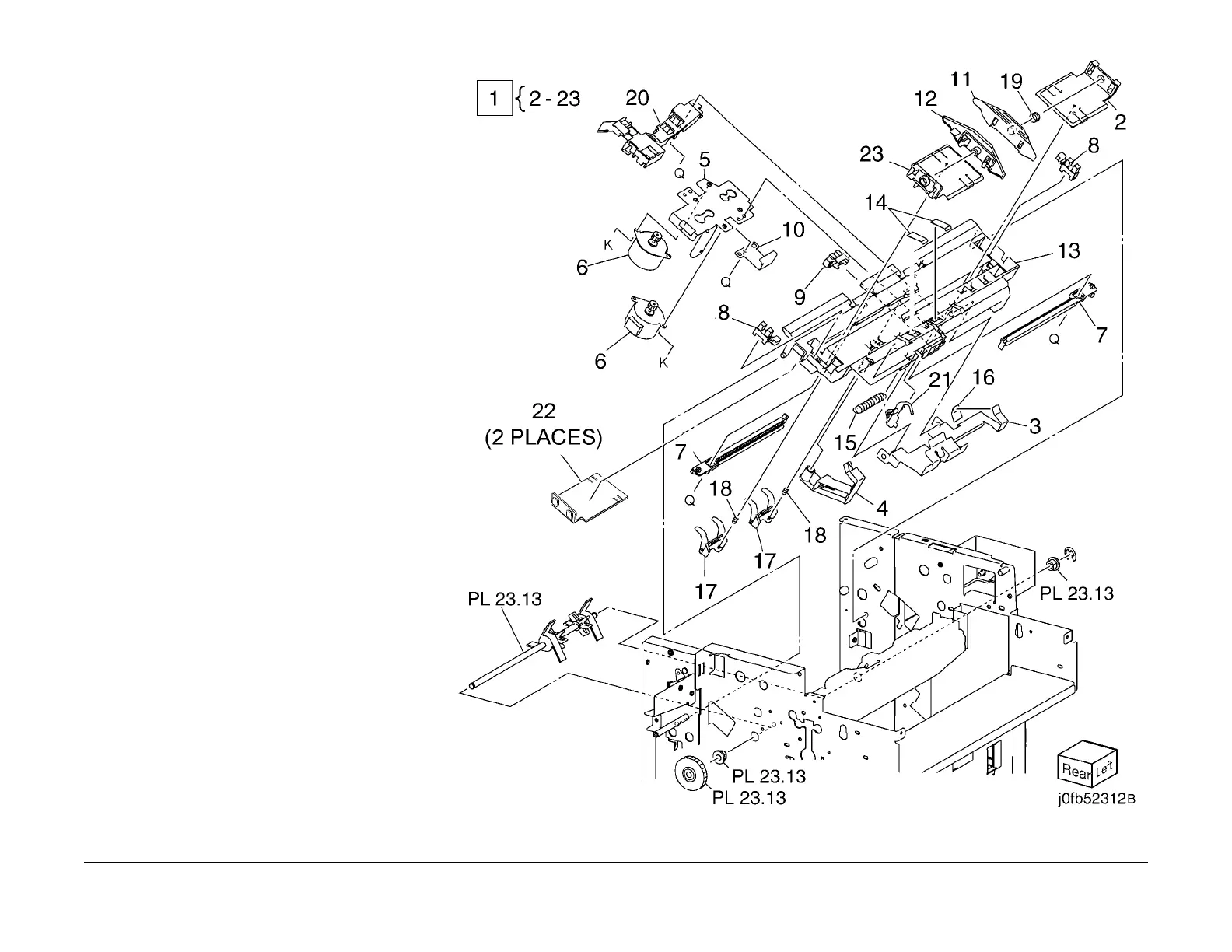

PL 23.12 Finisher Eject (4 of 5)
Item Part Description
1 050K61090 Compile Tray Assembly (REP
16.2.13)
2 038E36461 Tamper Guide, Rear
3 – Compile Center Paper Guide (P/O
PL 23.12 Item 1)
4 – Compile Rear Paper Guide (P/O PL
23.12 Item 1)
5 – Bracket (P/O PL 23.12 Item 1)
6 127K48210 Tamper Motor (REP 16.2.24)
7 – Rack (Front) (P/O PL 23.12 Item 1)
8 930W00111 Front Tamper Home Sensor, Rear
Tamper Home Sensor (REP
16.2.25)
9 130E81600 Compile Tray No Paper Sensor
(REP 16.2.26)
10 – Spring (P/O PL 23.12 Item 1)
11 – Tamper Front Guide (P/O PL 23.12
Item 1)
12 – Tamper Rear Guide (P/O PL 23.12
Item 1)
13 – Compile Tray (P/O PL 23.12 Item 1)
14 – Paper Paddle Guide (P/O PL 23.12
Item 1)
15 809E79000 Spring
16 – Paper End Guide (P/O PL 23.12
Item 1)
17 – Paper Tray Guide (P/O PL 23.12
Item 1)
18 – Spring (P/O PL 23.12 Item 1)
19 – Spring (P/O PL 23.12 Item 1)
20 – Harness Guide (P/O PL 23.12 Item
1)
21 120E29760 Actuator
22 801E04902 Tamper Base (REP 16.2.24)
23 038E36451 Tamper Guide, Front
