WorkCentre 5225, 5230
PL 13.4
Parts List
Launch Version

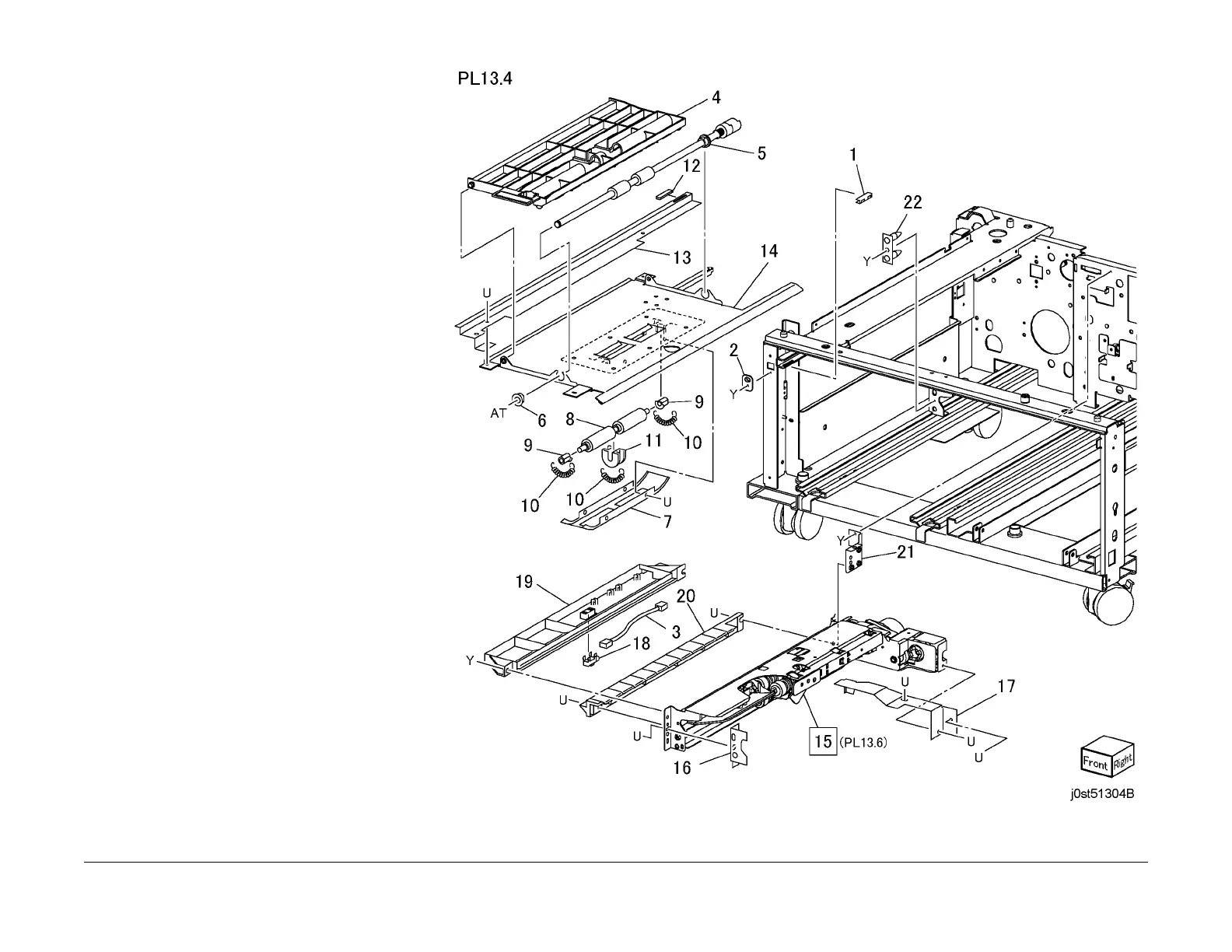

PL 13.4 Paper Feed (1/2)-Tandem
Item Part Description
1 – Spacer (Not Spared)
2 – Guide (Not Spared)
3 – Wire Harness (Not Spared)
4 – Upper Chute (P/O PL 13.3 Item 2)
5 059K26350 Takeaway Roll
6 – Bearing (P/O PL 13.3 Item 2)
7 – Cover (P/O PL 13.3 Item 2)
8 059E98860 Pinch Roll
9 – Bearing (P/O PL 13.3 Item 2)
10 – Spring (P/O PL 13.3 Item 2)
11 – Bearing (P/O PL 13.3 Item 2)
12 – Spacer (P/O PL 13.3 Item 2)
13 – Transport Rail (P/O PL 13.3 Item 2)
14 – Lower Chute (P/O PL 13.3 Item 2)
15 – Tray 4 Feeder (Not Spared)
16 – Bracket (Not Spared)
17 – Cover (Not Spared)
18 930W00212 Tray 4 Feed Out Sensor
19 – Upper Chute (Not Spared)
20 – Lower Chute (Not Spared)
21 – Bracket (Not Spared)
22 – Stand Bracket (Not Spared)
