February, 2008
5-32
WorkCentre 5225, 5230
PL 9.2
Launch Version
Parts List

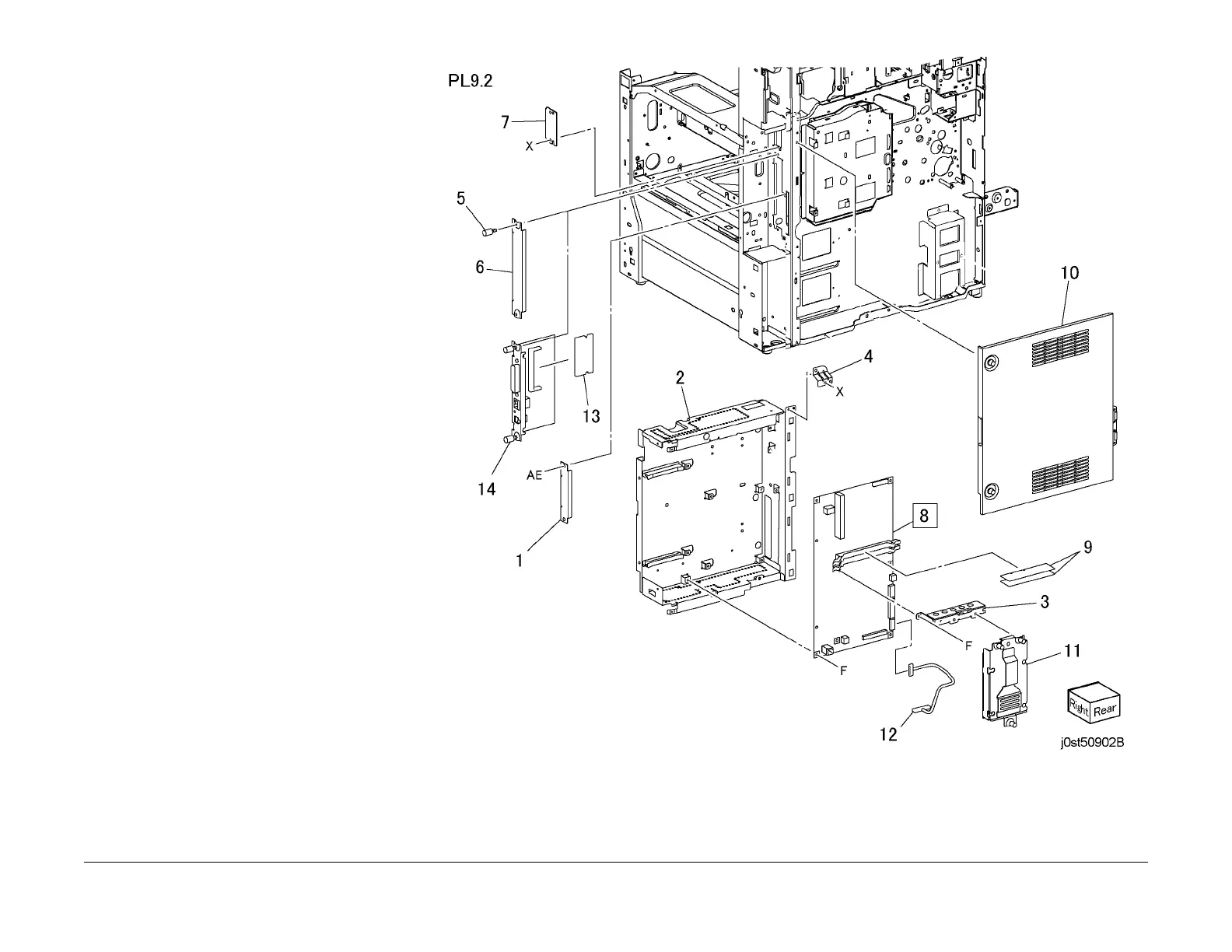

PL 9.2 ESS
Item Part Description
1 – Panel (Not Spared)
2 – ESS Chassis (Not Spared)
3 – Bracket (Not Spared)
4 – Bracket (Not Spared)
5 – Screw (Not Spared)
6 – Panel (Not Spared)
7 – Panel (Not Spared)
8 101K55270 ESS PWB (REP 9.2.1)
9 133K25440 DDR DIMM (256MB)
10 – ESS Cover (Not Spared)
11 960K35820 HDD (40GB)
12 – Wire Harness (Not Spared)
13 540K08771 PS DIMM
14 540K08781 Printer PWB

Xerox WorkCentre 5230 Specifications

General

Maximum print size	A3 (297 x 420 mm)
Standard input capacity	500 sheets
Internal memory	No MB
Type	Digital copier
