Xerox WorkCentre 5230 User Manual

February, 2008
5-96
WorkCentre 5225, 5230
PL 23.9
Launch Version
Parts List

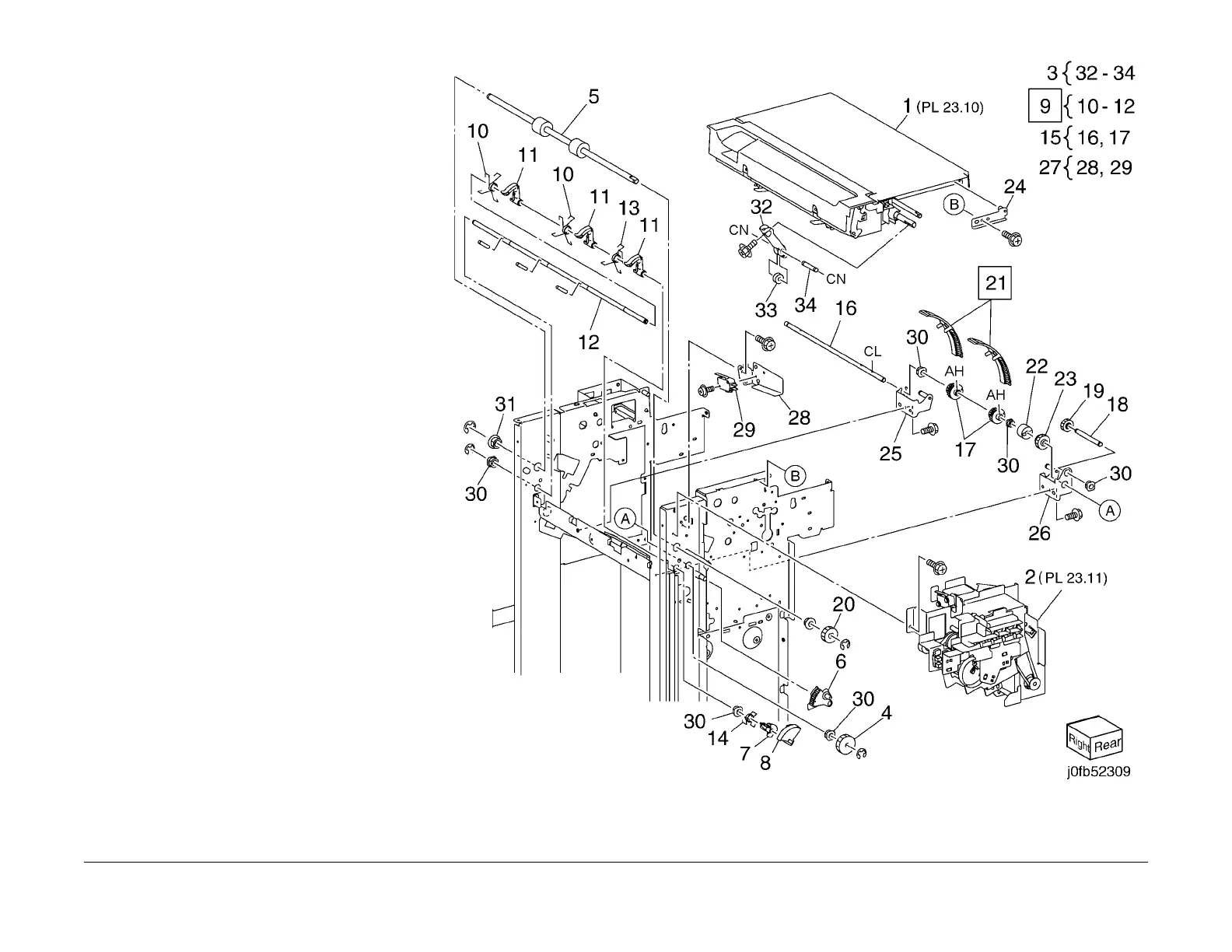

PL 23.9 Finisher Eject (1 of 5)
Item Part Description
1 – Eject Cover Assembly (PL 23.10)
2 – Eject Assembly (PL 23.11)
3 031K93790 Clamp Arm Assembly
4 807E21370 Gear (Z25)
5 059K55110 Eject Roller
6 807E21380 Gear (Z72)
7 807E21391 Gear (Z18)
8 120E29770 Actuator
9 006K86731 Set Clamp Shaft Assembly
10 – Spring (P/O PL 23.9 Item 9)
11 019K09391 Set Clamp Holder
12 – Shaft (Not Spared)
13 809E79060 Spring
14 809E79080 Spring
15 006K86741 Guide Paper Shaft Assembly
16 – Guide Paper Shaft (P/O PL 23.9
Item 15)
17 – Gear (Z20) (P/O PL 23.9 Item 15)
18 – Shaft (Not Spared)
19 807E21420 Gear (Z19)
20 807E21400 Gear (Z31)
21 038E36490 Guide Paper (Left/Right)
22 005E25820 Clutch
23 807E21970 Gear (Z23)
24 – Stopper (Not Spared)
25 – Bracket (Front) (Not Spared)
26 – Bracket (Rear) (Not Spared)
27 – Option Switch Assembly (Not
Spared)
28 – Bracket (Not Spared)
29 – Option Switch (Not Spared)
30 – Sleeve Bearing (Not Spared)
31 – Bearing (Not Spared)
32 – Clamp Arm (P/O PL 23.9 Item 3)
33 – Roll (Not Spared)
34 – Shaft (P/O PL 23.9 Item 3)
