Xerox WorkCentre 5230 User Manual

February, 2008
5-82
WorkCentre 5225, 5230
PL 22.5
Launch Version
Parts List

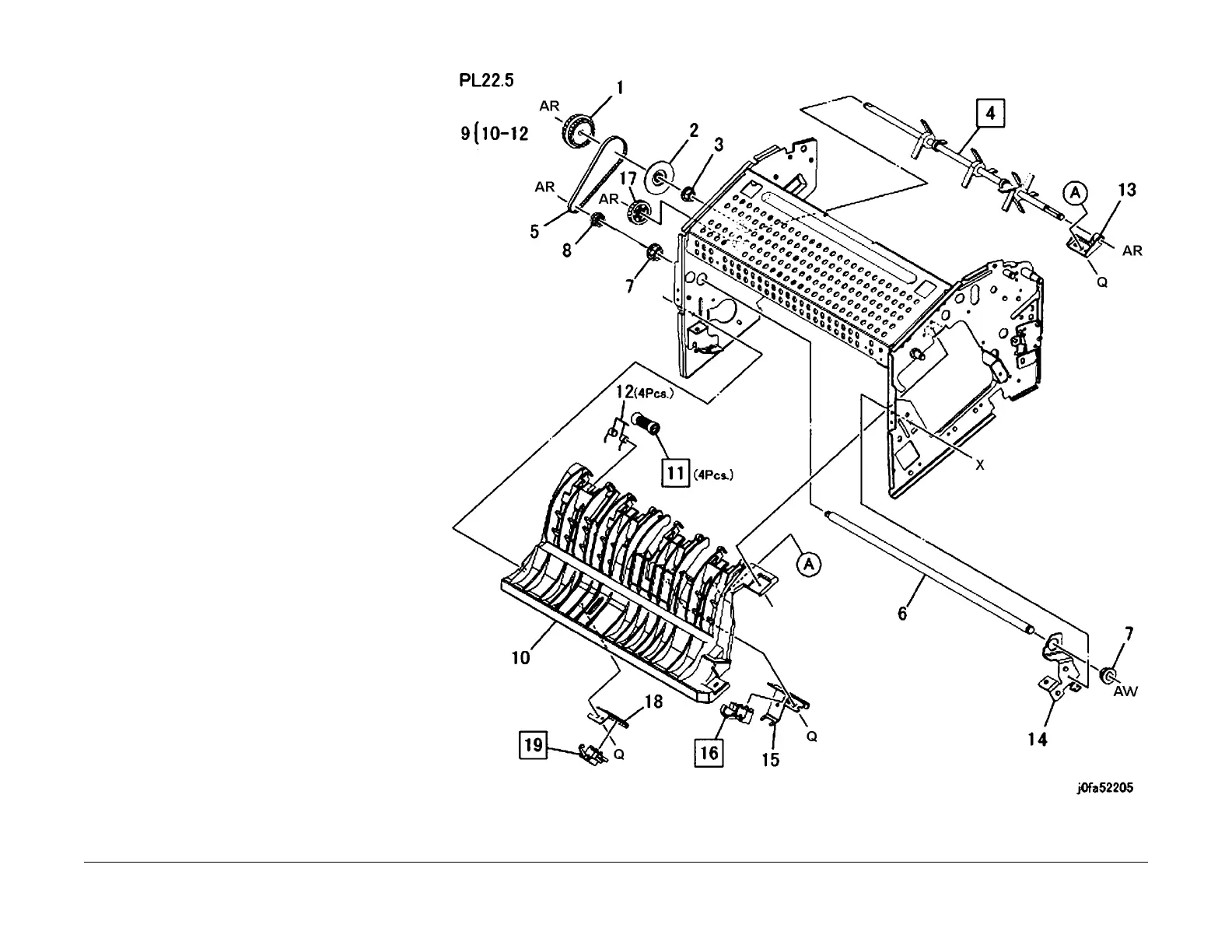

PL 22.5 Stacker Base Assembly (Part
3 of 5)
Item Part Description
1 807E13250 Gear Pulley (37T/45T)
2 005E89480 Collar
3 413W75959 Bearing
4 006K25001 Main Paddle Shaft Assembly (REP
22.5.4)
5 423W09854 Belt
6 – Shaft (Not Spared)
7 413W77559 Bearing
8 020E43500 Pulley (19T)
9 054K30361 Lower Chute Assembly (REP
22.5.5)
10 – Lower Chute (P/O PL 22.5 Item 9)
11 022K73190 Pinch Roll (REP 22.5.1)
12 809E65931 Spring
13 – Support (Not Spared)
14 – Bracket (Not Spared)
15 – Bracket (Not Spared)
16 130K93251 Compile Exit Sensor (REP 22.5.3)
17 807E13240 Gear (27T)
18 – Bracket (Not Spared)
19 130K88190 Finisher Entrance Sensor (REP
22.5.2)
