February, 2008
4-25
WorkCentre 5225, 5230
REP 4.2.1
Repairs and Adjustments
Launch Version
REP 4.2.1 Dispense Motor
Parts List on PL 4.2
Removal
WARNING
To avoid personal injury or shock, do not perform repair or adjustment with electrical
power applied to the machine.
CAUTION
To prevent data loss when the power is turned off, please note the following.
FAX Models
Check that the “Stored Documents” lamp is not on, and press the Job Status button to ensure
that there are no jobs in progress.
Printer Models
Check that “Ready to Print/Send” is displayed on the Control Panel display.
1. Remove the following parts:
• Xero/Developer Cartridge (REP 4.1.1)
• Toner Cartridge (REP 4.1.2)
• Top Cover Assembly (REP 10.1.1)
2. Remove the Front Cover and the Inner Cover. (Figure 1)
1.Remove the screws (x3).
2.Remove the Inner Cover.

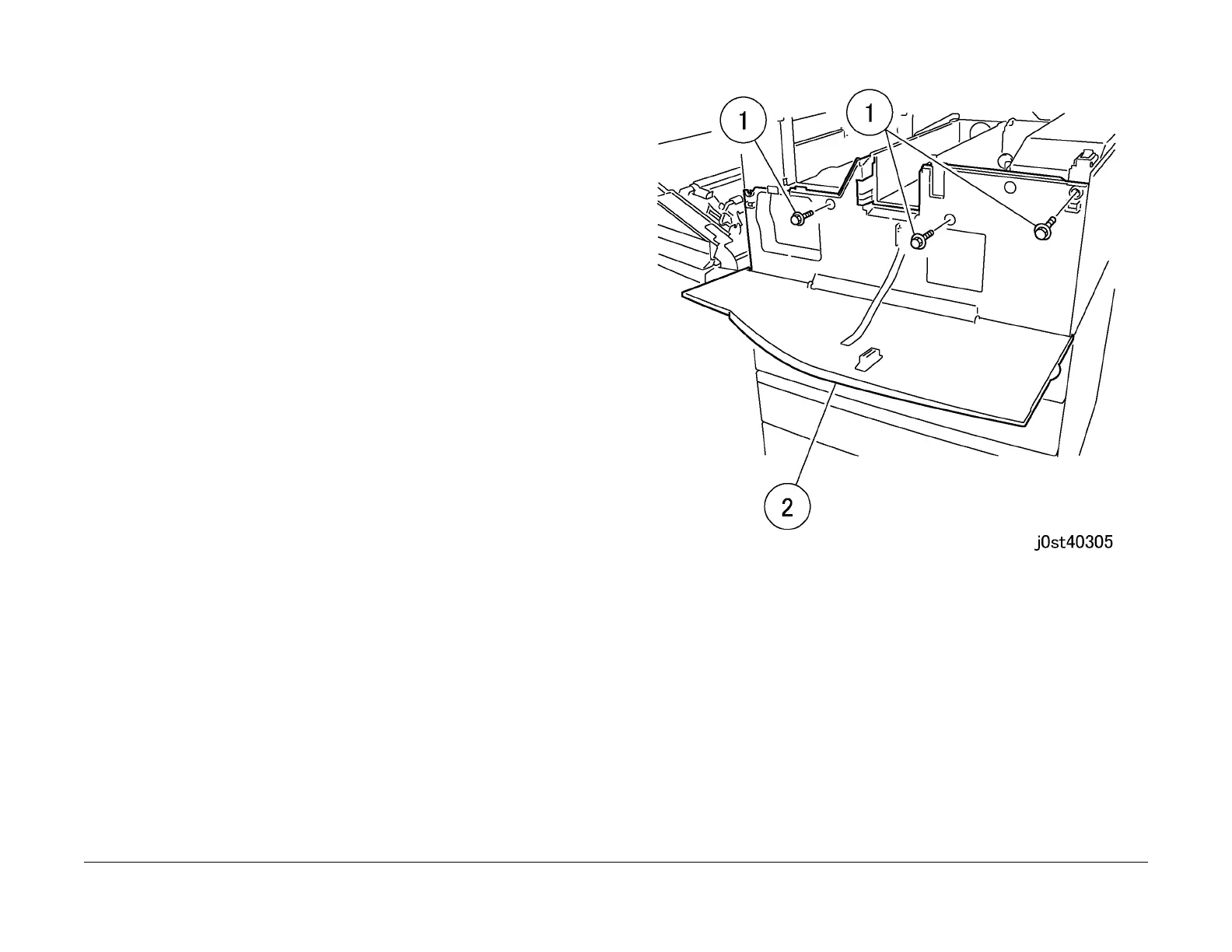

Figure 1 Removing the Inner Cover (j0st40305)
3. Disconnect the connector. (Figure 2)
1.Disconnect the connector.
2.Release the Wire Harness from the Wire Harness Guide.
3.Release the Wire Harness from the Wire Harness Guide.
To Next Page
