Xerox WorkCentre 5230 User Manual

February, 2008
5-75
WorkCentre 5225, 5230
PL 18.6
Parts List
Launch Version

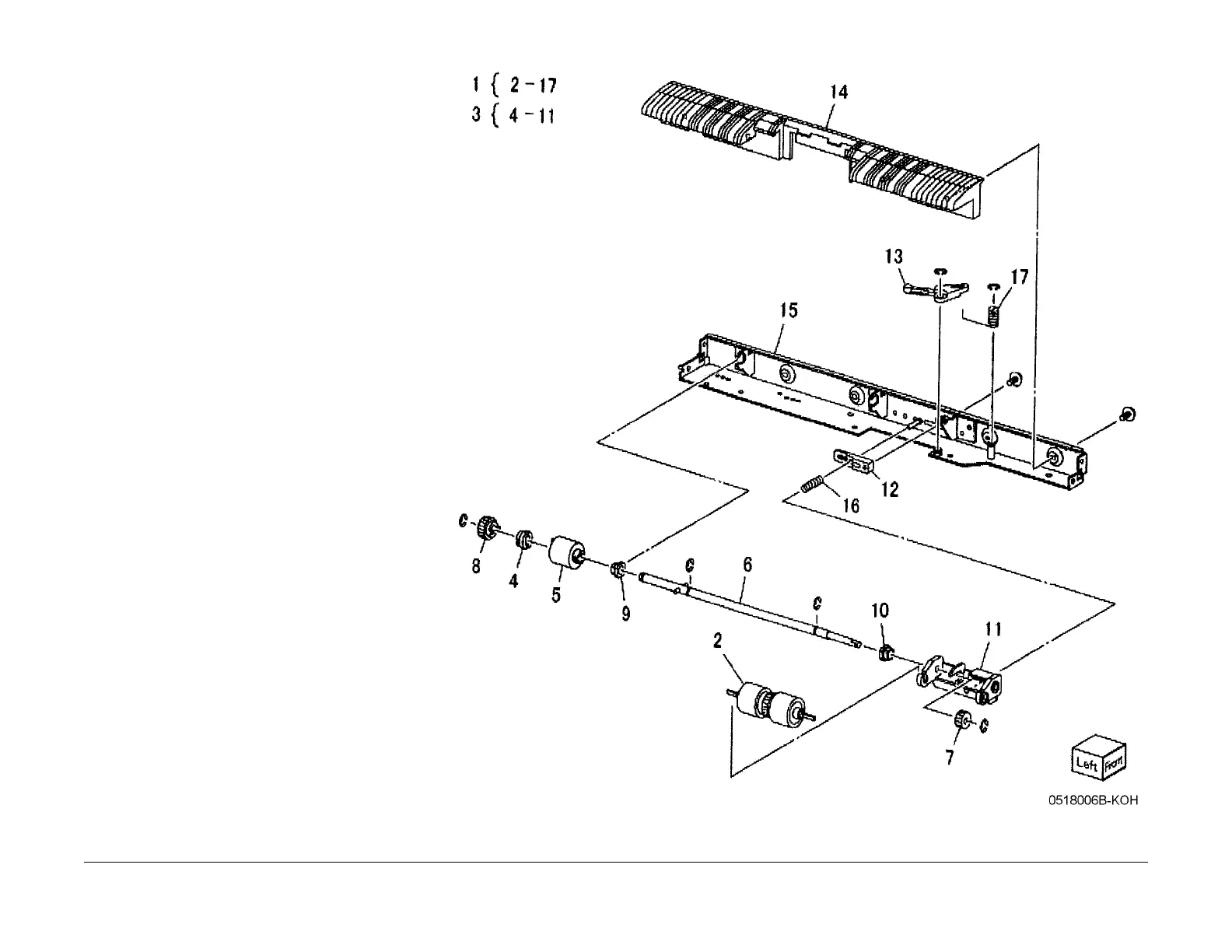

PL 18.6 HCF Feeder (3 of 3)
Item Part Description
1 059K26591 Retard Roll (REP 7.3.5)
2 – Lower Feeder Assembly
3 – Retard Shaft Assembly (Not
Spared)
4 – Collar (P/O PL 18.6 Item 3)
5 005K06701 Friction Clutch
6 – Shaft (P/O PL 18.6 Item 3)
7 007E78170 Gear (15T)
8 007E89760 Gear (22T)
9 013E23600 Bearing
10 013E23610 Bearing
11 – Retard Bracket (P/O PL 18.6 Item
1)
12 – Slide (P/O PL 18.6 Item 1)
13 – Lever (P/O PL 18.6 Item 1)
14 – Lower Chute (P/O PL 18.6 Item 1)
15 – Lower Frame (P/O PL 18.6 Item 1)
16 – Spring (P/O PL 18.6 Item 1)
17 – Spring (P/O PL 18.6 Item 1) (REP
7.3.7)
