4-107
WorkCentre 5225, 5230
REP 15.2.2
Repairs and Adjustments
Launch Version

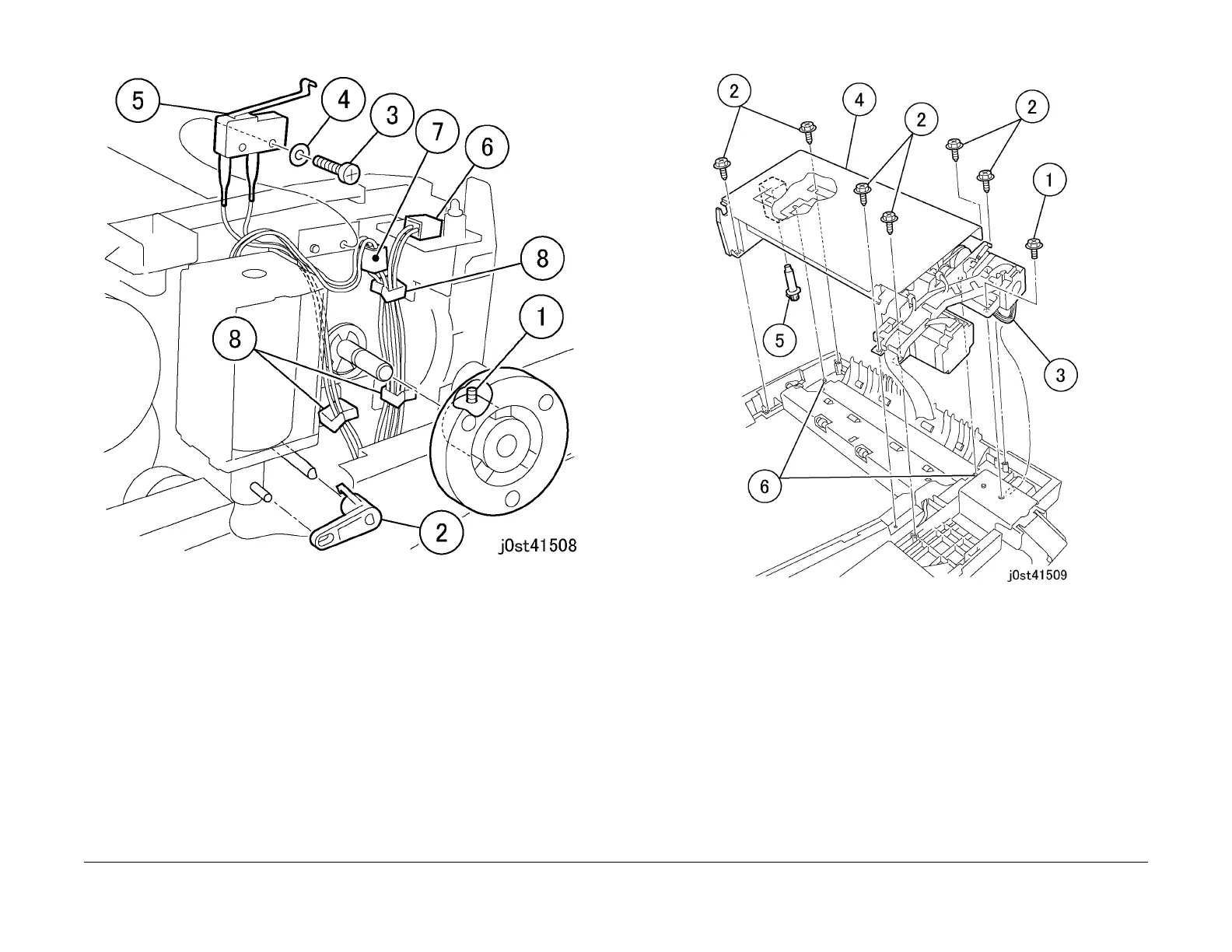

Figure 2 Removing the Lever and Wire Harness
7. Remove the DADF Feeder Assembly. (Figure 3)
1. Remove the screw (1).
2. Remove the Tapping Screws (6).
3. Release the wire harness from clamp.
4. Remove the DADF Feeder Assembly.
5. Remove the plunger.
6. When installing: Align the boss with the boss hole.
Figure 3 Removing the DADF Feeder Assembly
Replacement
1. To install, carry out the removal steps in reverse order.
2. When replacing, enter Diagnostic mode. Clear the [HFSI] counter.
