Xerox WorkCentre 5230 User Manual

February, 2008
5-45
WorkCentre 5225, 5230
PL 12.3
Parts List
Launch Version

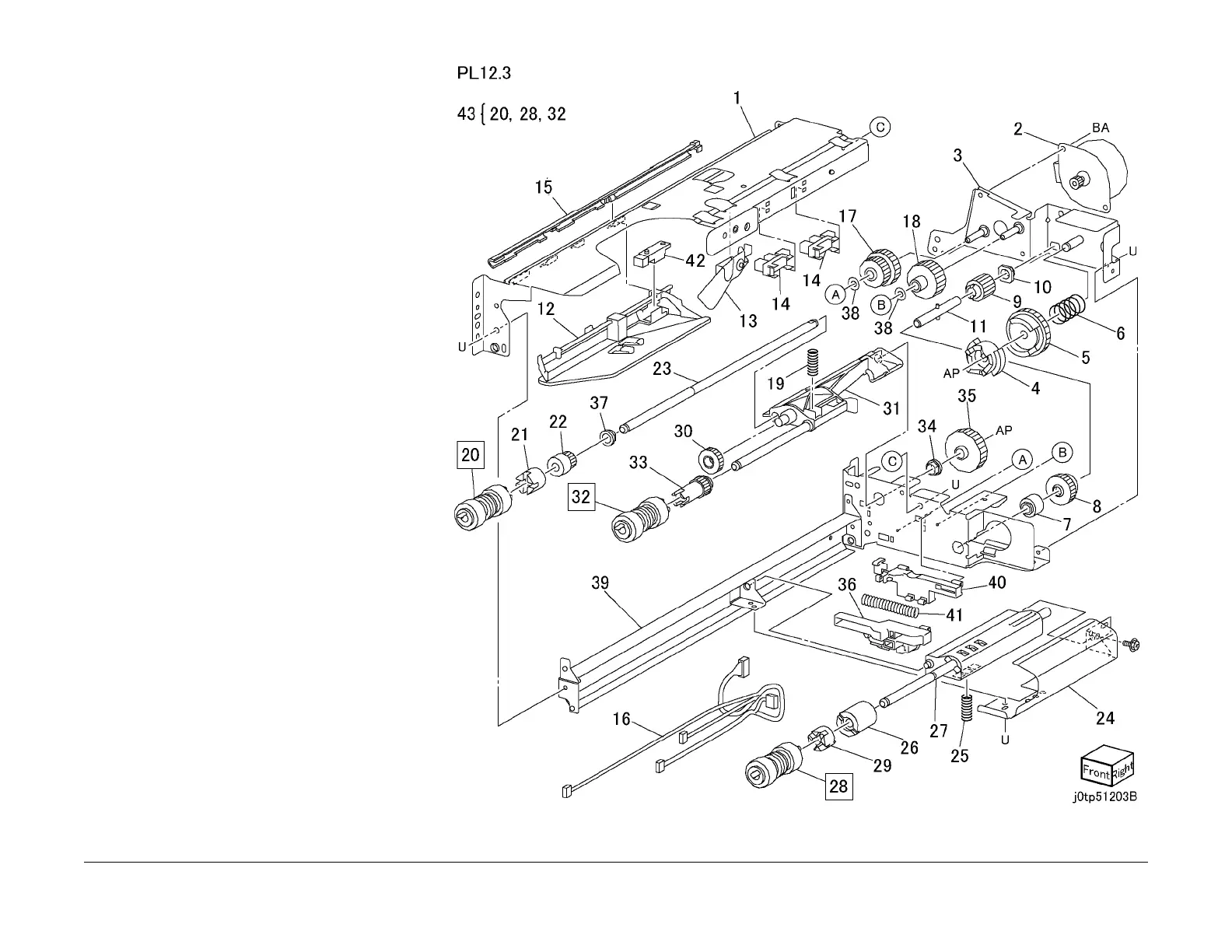

PL 12.3 Tray 3/4 Feeder- 2 Tray
Item Part Description
1 – Upper Frame (P/O PL 12.1 Item 6)
2 127K38171 Tray 3/4 Feed/Lift Up Motor
3 – Bracket (P/O PL 12.1 Item 6)
4 – Spacer (P/O PL 12.1 Item 6)
5 – Gear (31T) (P/O PL 12.1 Item 6)
6 – Spring (P/O PL 12.1 Item 6)
7 – Oneway Clutch (P/O PL 12.1 Item
6)
8 – Oneway Gear (P/O PL 12.1 Item 6)
9 – Gear (33T) (P/O PL 12.1 Item 6)
10 – Bearing (P/O PL 12.1 Item 6)
11 – Shaft (P/O PL 12.1 Item 6)
12 – Front Chute (P/O PL 12.1 Item 6)
13 120E22481 Actuator
14 930W00113 Tray 3/4 Level Sensor, Tray 3/4 No
Paper Sensor
15 – Harness Holder (CTR)
16 962K18912 Wire Harness
17 – Gear (28T/21T) (P/O PL 12.1 Item
6)
18 – Gear (29T) (P/O PL 12.1 Item 6)
19 – Spring (P/O PL 12.1 Item 6)
20 – Feed Roll (P/O PL 12.3 Item 43)
(REP 12.3)
21 005K05890 Oneway Clutch
22 005K06760 Oneway Gear (22T)
23 – Shaft (P/O PL 12.1 Item 6)
24 – Chute (P/O PL 12.1 Item 6)
25 – Spring (P/O PL 12.1 Item 6)
26 005K81880 Friction Clutch
27 – Support (P/O PL 12.1 Item 6)
28 – Retard Roll (P/O PL 12.3 Item 43)
(REP 12.3)
29 – Spacer (P/O PL 12.1 Item 6)
30 – Gear (13T) (P/O PL 12.1 Item 6)
31 – Support (P/O PL 12.1 Item 6)
32 – Nudger Roll (P/O PL 12.3 Item 43)
(REP 12.3)
33 – Gear (25T) (P/O PL 12.1 Item 6)
34 – Bearing (P/O PL 12.1 Item 6)
35 – Gear (34T) (P/O PL 12.1 Item 6)
36 – Lever (P/O PL 12.1 Item 6)
37 – Bearing (P/O PL 12.1 Item 6)
38 – Washer (P/O PL 12.1 Item 6)
39 – Lower Frame (P/O PL 12.1 Item 6)
40 – Holder (P/O PL 12.1 Item 6)
41 – Spring (P/O PL 12.1 Item 6)
42 930W00211 Tray 3/4 Per Feed Sensor
43 604K20360 Feeder Roll Kit
(Feeder/Nudger/Retard)
