WorkCentre 5225, 5230
REP 22.4.2, REP 22.4.3
Launch Version
Repairs and Adjustments
4. Remove the Bracket from the Staple Assembly. (Figure 2)
(1)Remove Screws (2).
(2)Remove Bracket.

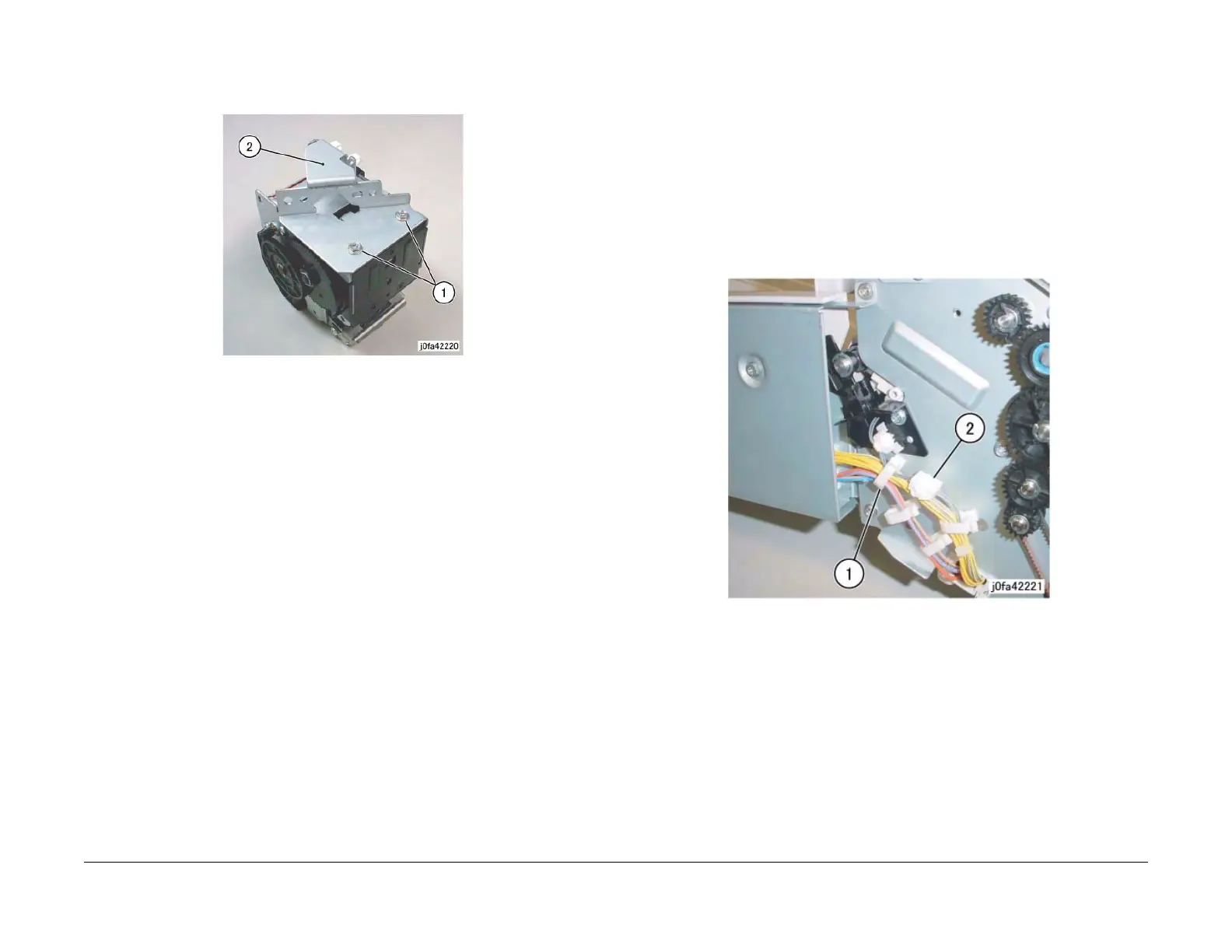

Figure 2 Removing the Bracket (j0fa42220)
Replacement
1. Reverse the removal procedure for replacement.
REP 22.4.3 Set Clamp Home Sensor
Parts List on PL 22.4
Removal
WARNING
To avoid personal injury or shock, do not perform repair or adjustment with electrical
power applied to the machine.
1. Remove the A-Finisher from the machine. (REP 22.1)
2. Remove the Rear Cover. (PL 22.1)
3. Disconnect the Connector. (Figure 1)
(1)Release Clamp and remove the wires.
(2)Disconnect Connector.
Figure 1 Disconnecting Connector (j0fa42221)
