February, 2008
5-31
WorkCentre 5225, 5230
PL 9.1
Parts List
Launch Version

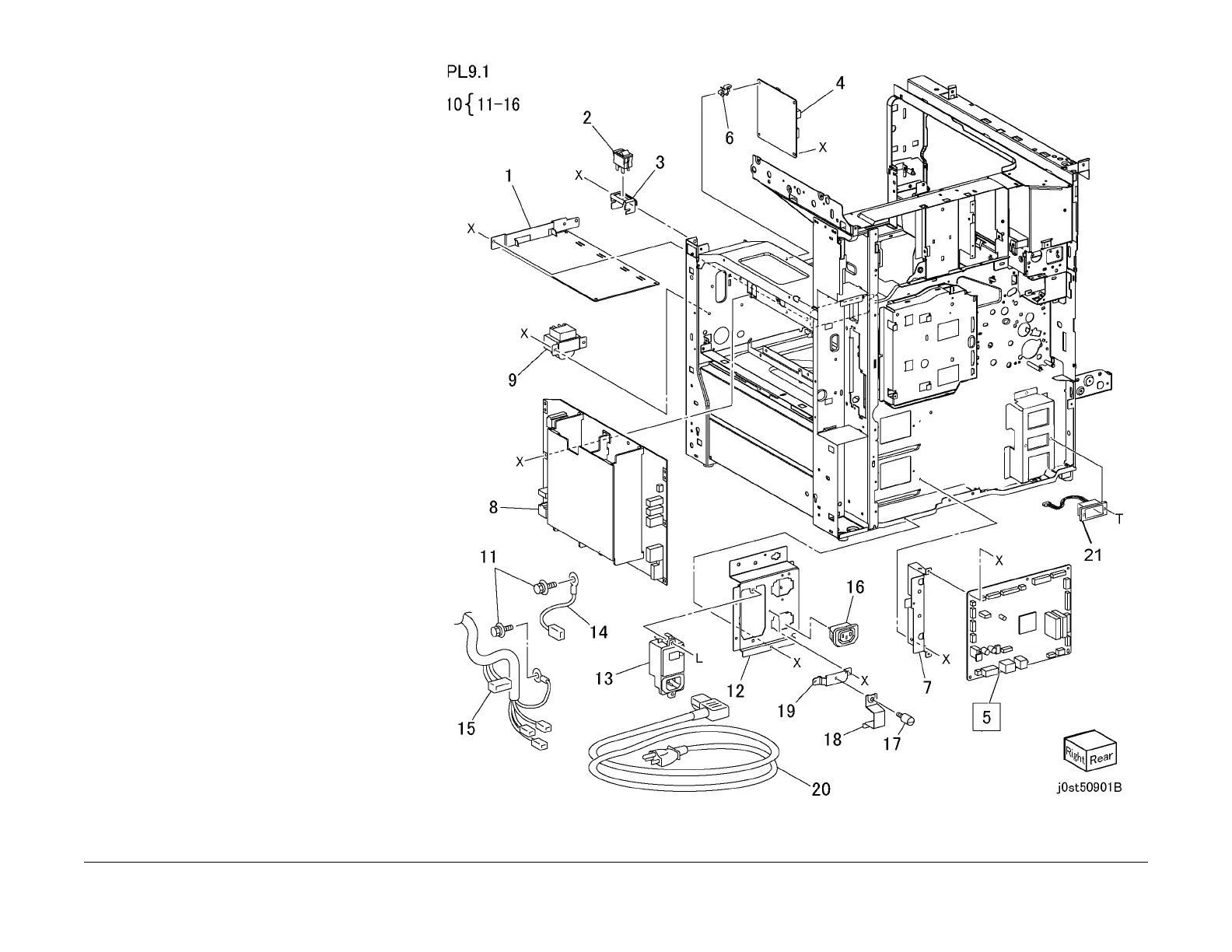

PL 9.1 Electrical
Item Part Description
1 105E17880 HVPS-Y1C
2 110E11230 Main Switch
3 – Bracket (Not Spared)
4 960K37900 Exit PWB
5 960K35862 MCU PWB (REP 9.1.1)
6 – PWB Support (Not Spared)
7 – Bracket (Not Spared)
8 105E17920 Power Unit - B1 (110V)
– 105E17930 Power Unit (220V)
9 104E94080 Choke Coil (220/240V)
10 101K55280 AC Chassis Assembly
11 – Screw (P/O PL 9.1 Item 10)
12 – Bracket (P/O PL 9.1 Item 10)
13 908W01201 GFI Breaker
14 962K18690 Wire Harness
15 – Wire Harness (P/O PL 9.1 Item 10)
16 – Outlet (P/O PL 9.1 Item 10)
17 – Screw (Not Spared)
18 – Holder (Not Spared)
19 – Bracket (Not Spared)
20 – 110V Power Cord (Not Spared)
21 962K57510 HCF Harness Assembly
To Next Page
