WorkCentre 5225, 5230
PL 6.3
Parts List
Launch Version

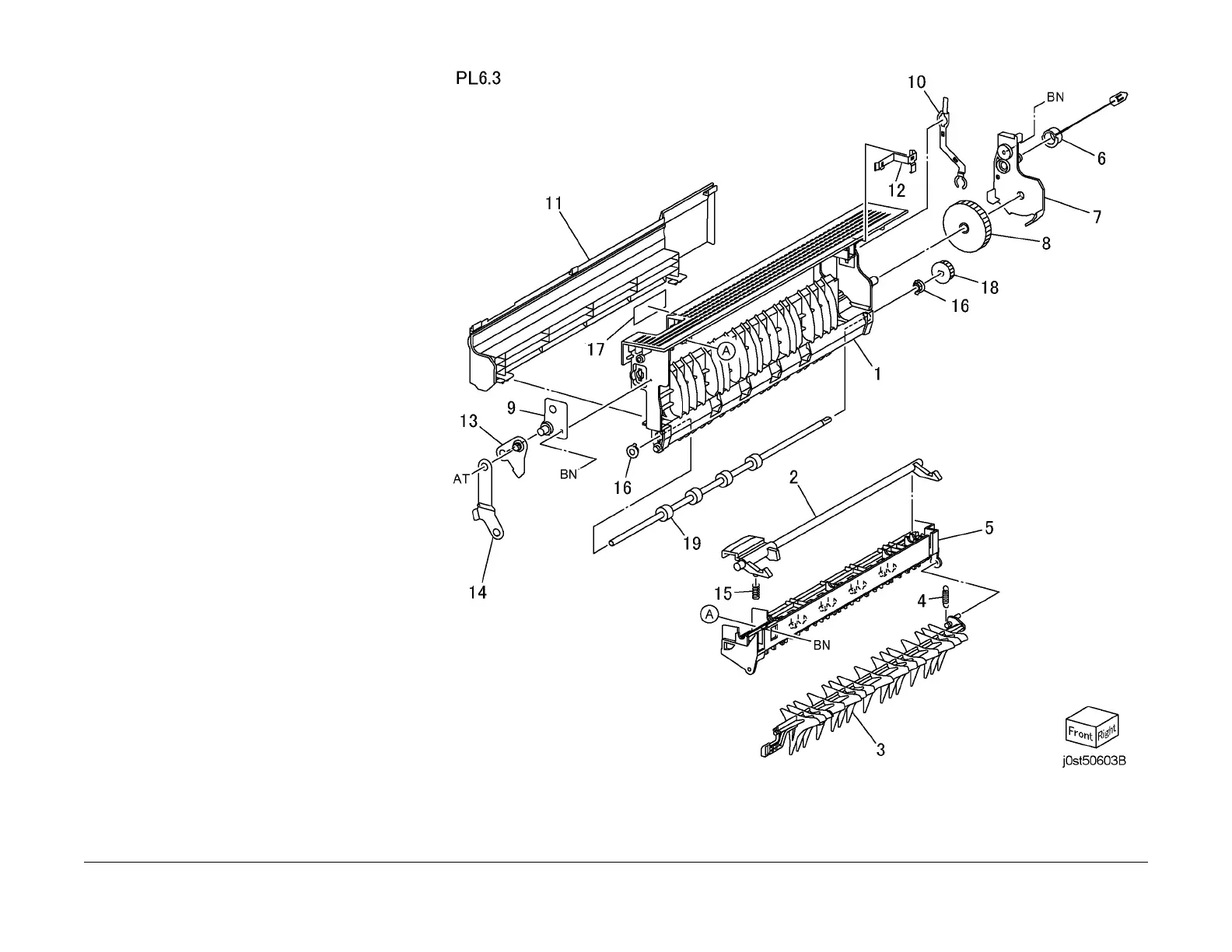

PL 6.3 L/H Upper Chute Assembly
Item Part Description
1 – L/H Upper Chute (P/O PL 6.1 Item
3)
2 003E60161 Latch
3 050E20010 Exit 2 Gate
4 – Spring (P/O PL 6.1 Item 3)
5 054E24372 Upper FU Chute
6 – Stopper (P/O PL 6.1 Item 3)
7 – Gear Cover (P/O PL 6.1 Item 3)
8 – Gear (52T) (P/O PL 6.1 Item 3)
9 – Bracket (P/O PL 6.1 Item 3)
10 – Earth Plate (P/O PL 6.1 Item 3)
11 – Face Up Exit Cover (P/O PL 6.1
Item 3)
12 – Earth Plate (P/O PL 6.1 Item 3)
13 – Bracket (P/O PL 6.1 Item 3)
14 – Link (P/O PL 6.1 Item 3)
15 809E37170 Spring
16 – Bearing (P/O PL 6.1 Item 3)
17 – Label (P/O PL 6.1 Item 3)
18 – Gear (P/O PL 6.1 Item 3)
19 – Invert Roll Assembly (P/O PL 6.1
Item 3)

Xerox WorkCentre 5230 Specifications

General

Maximum print size	A3 (297 x 420 mm)
Standard input capacity	500 sheets
Internal memory	No MB
Type	Digital copier
