WorkCentre 5225, 5230
PL 7.1
Launch Version
Parts List

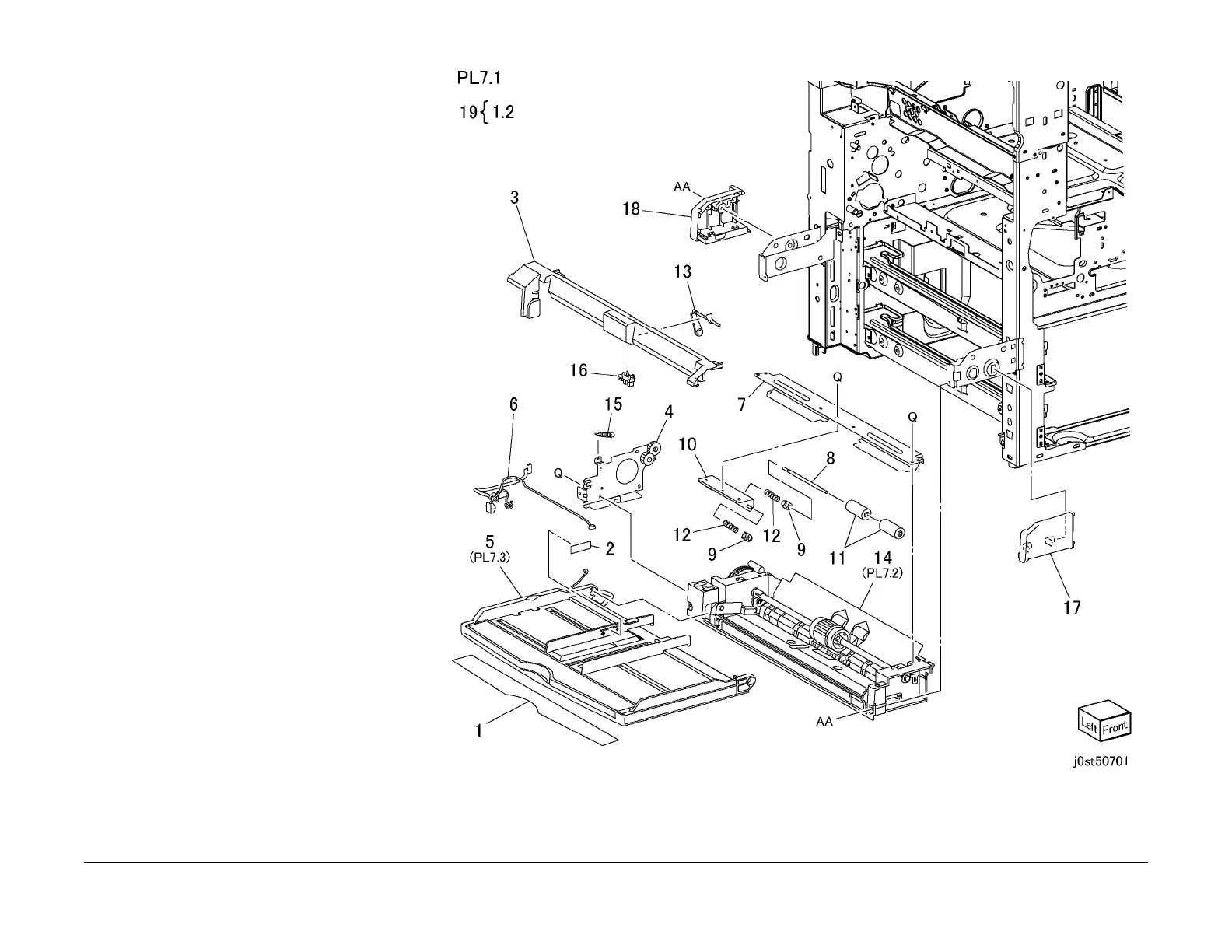

PL 7.1 MSI Assembly
Item Part Description
1 – Label (P/O PL 7.1 Item 19)
2 – Label (Max) (P/O PL 7.1 Item 19)
3 – Upper Frame (Not Spared)
4 – Bracket (Not Spared)
5 050K56600 MPT Tray Assembly
6 962K13120 Wire Harness
7 – Chute (Not Spared)
8 – Shaft (Not Spared)
9 – Spacer (Not Spared)
10 – Guide (Not Spared)
11 604K20410 Roller Kit (2/Kit)
12 – Spring (Not Spared)
13 120E22231 Actuator
14 – Lower Frame Assembly (Not
Spared)
15 – Spring (Not Spared)
16 930W00113 MPT No Paper Sensor
17 802E55201 MPT Front Cover
18 802E55212 MPT Rear Cover
19 604K20520 MPT Label Kit
To Next Page
