February, 2008
4-170
WorkCentre 5225, 5230
REP 16.3.8, REP 16.3.9
Launch Version
Repairs and Adjustments
6. Remove the Stapler. (Figure 4)
a. Release the wires from the Clip.
b. Disconnect the Connector.
c. Remove the Screws (3).
d. Remove the Stapler.

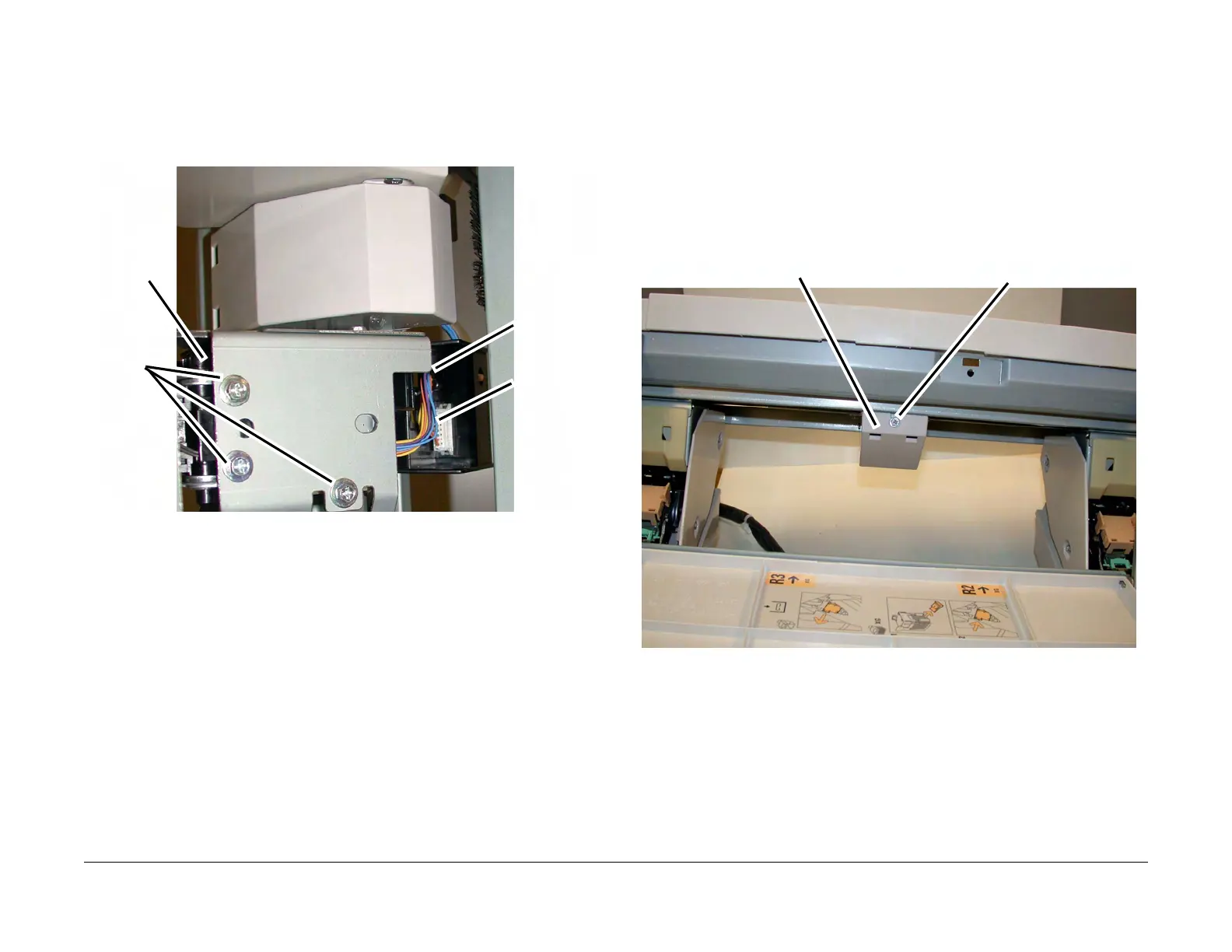

Figure 4 Removing the Stapler (j0st41678)
Replacement
1. Reverse the removal procedure for replacement.
REP 16.3.9 Booklet Stapler Move Motor
Parts List on PL 23.18
Removal
WARNING
To avoid personal injury or shock, do not perform repair or adjustment with electrical
power applied to the machine.
1. Remove the Booklet Maker Assembly from the Finisher. (REP 16.3.2)
2. Remove the Cover for the Booklet Stapler Move Motor. (Figure 1)
a. Remove the Screw (1).
b. Remove the Cover.
Figure 1 Removing the Cover (j0st41671)
Clip
Connector
Screws
Stapler
Screw
Cover
To Next Page
