February, 2008
4-87
WorkCentre 5225, 5230
REP 12.3
Repairs and Adjustments
Launch Version
REP 12.3 Feed/Retard/Nudger Roll (2TM)
Parts List on PL 12.3
Removal
WARNING
To avoid personal injury or shock, do not perform repair or adjustment with electrical
power applied to the machine.
NOTE: The Feed, Retard and Nudger Roll must be replaced at the same time.
1. Remove the Tray 3/4 Feeder.
• Tray 3 Feeder (REP 12.1)
• Tray 4 Feeder (REP 12.2)
2. Move the Front Chute in the direction of the arrow. (Figure 1)
1. Remove the Front Chute.

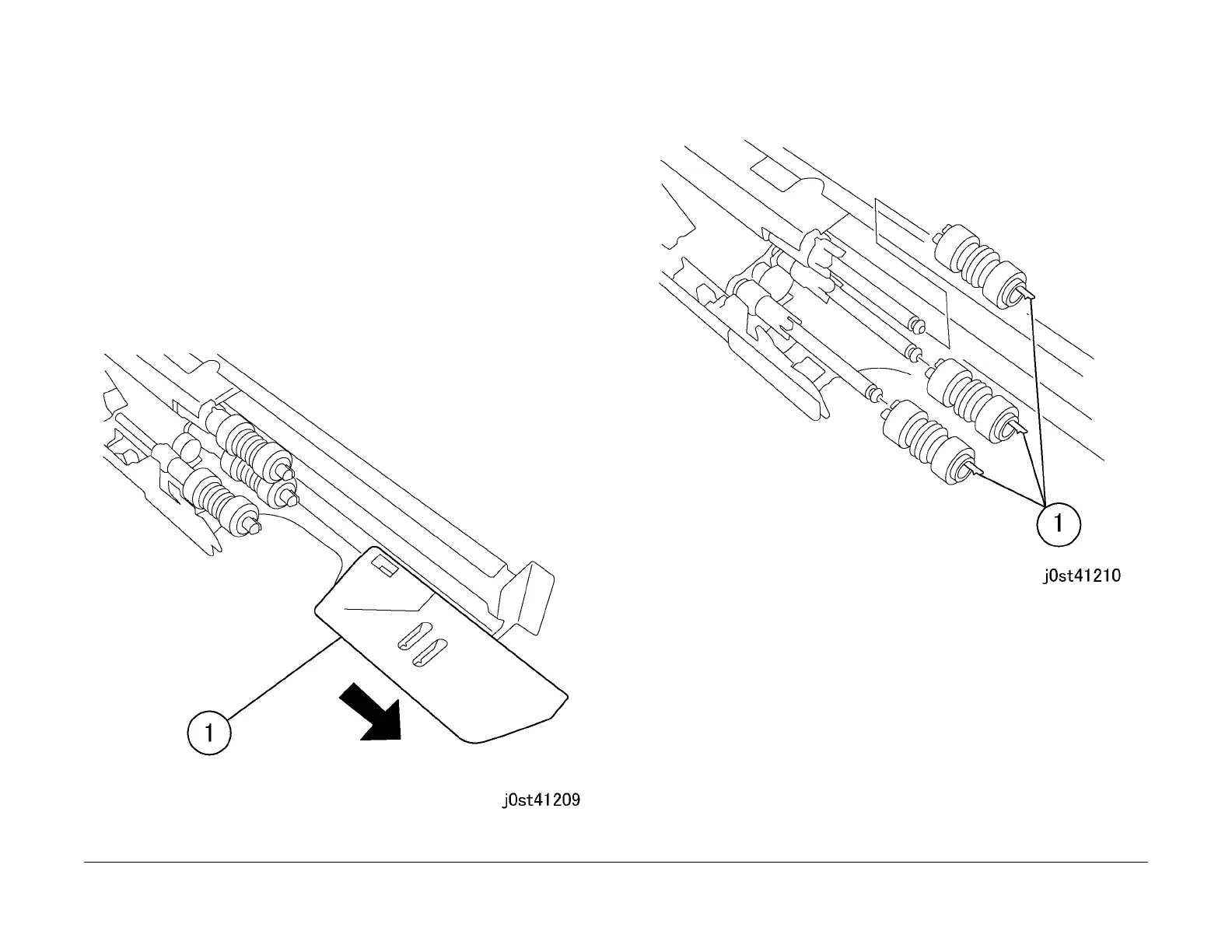

Figure 1 Moving the Front Chute (j0st41209)
3. Remove the Feed/Retard/Nudger Roll. (Figure 2)
1. Release the hooks (x3) to remove the Feed/Retard/Nudger Roll.
Figure 2 Removing the Feed/Retard/Nudger Roll (j0st41210)
Replacement
1. To install, carry out the removal steps in reverse order.
2. When replacing, enter Diagnostic mode. Clear the counter.
