Xerox WorkCentre 5230 User Manual

February, 2008
4-73
WorkCentre 5225, 5230
REP 11.5.1
Repairs and Adjustments
Launch Version

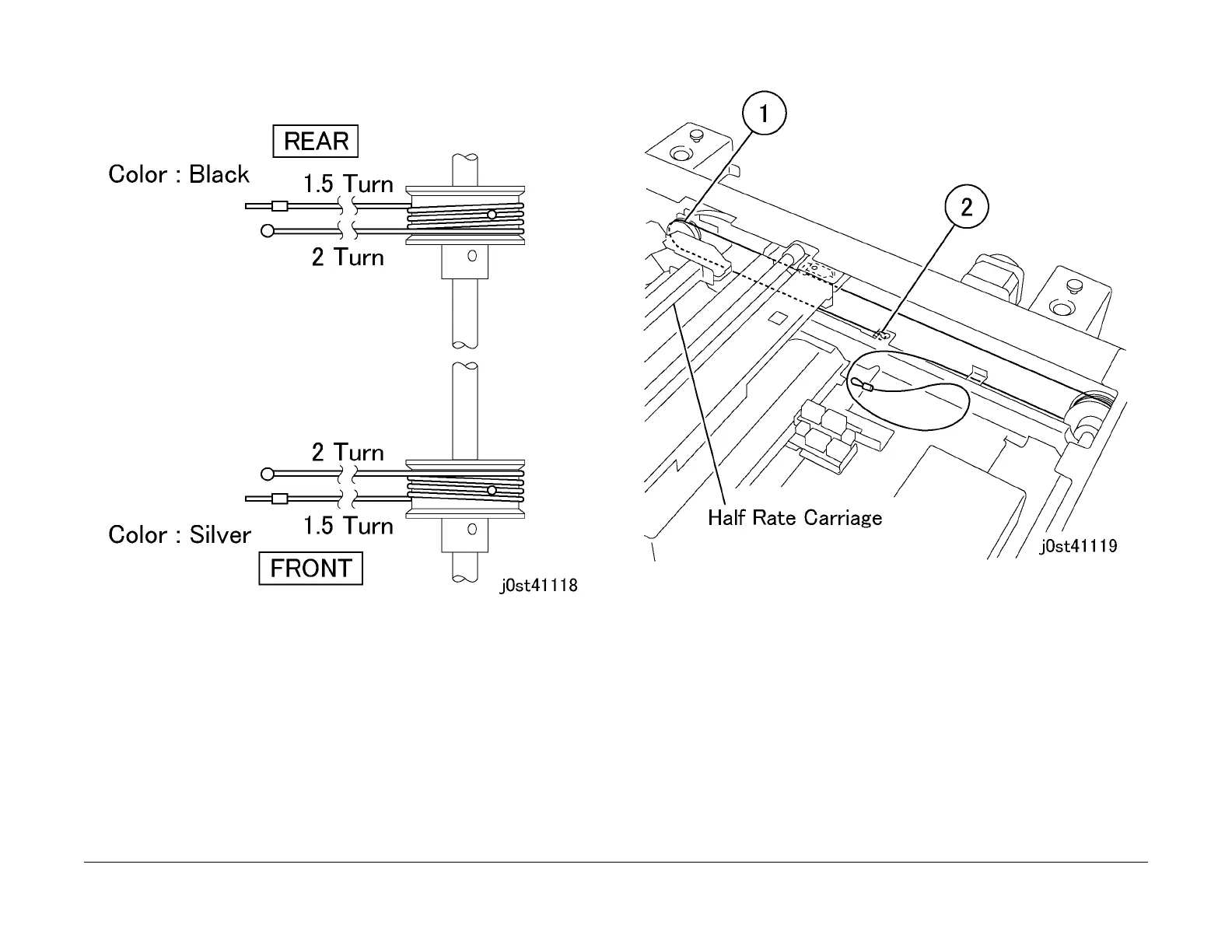

NOTE: Indicates the number of coils made by the Carriage Cable at the front and rear.
(Figure 8)
Figure 8 The number of coils made by Carriage Cable at the front and rear (j0st41118)
2. Install the ball end of the Carriage Cable. (Figure 9)
1. Route the Carriage Cable on the pulley in front of it.
2. Hang the ball on the notch of the frame.
Figure 9 Installing the Carriage Cable (j0st41119)
3. Install the spring end of the Carriage Cable. (Figure 10)
1. Route the spring end of the Carriage Cable along the frame and on the pulley.
2.Route the cable on the pulley at the rear of the Half Rate Carriage.
3.Attach the spring to the Carriage Cable and route the cable along the frame as indi-
cated.
4. Fix the Full Rate Carriage on the Carriage Cable.

Xerox WorkCentre 5230 Specifications

General

Maximum print size	A3 (297 x 420 mm)
Standard input capacity	500 sheets
Internal memory	No MB
Type	Digital copier
