Transparency Offset (80mm Pitch Ghosts), Regular
Image Quality
Launch Version
Transparency Offset (80mm Pitch
Ghosts)
Figure 1 Transparency Offset (80mm Pitch Ghosts)
Defect Sample (j0st3224)
Cause
1. Transparencies were processed in Plain Paper mode.
Corrective Action
1. Select Transparency mode.
Regular Blanks In Process Direction (Spots, Streaks, Bands etc.)

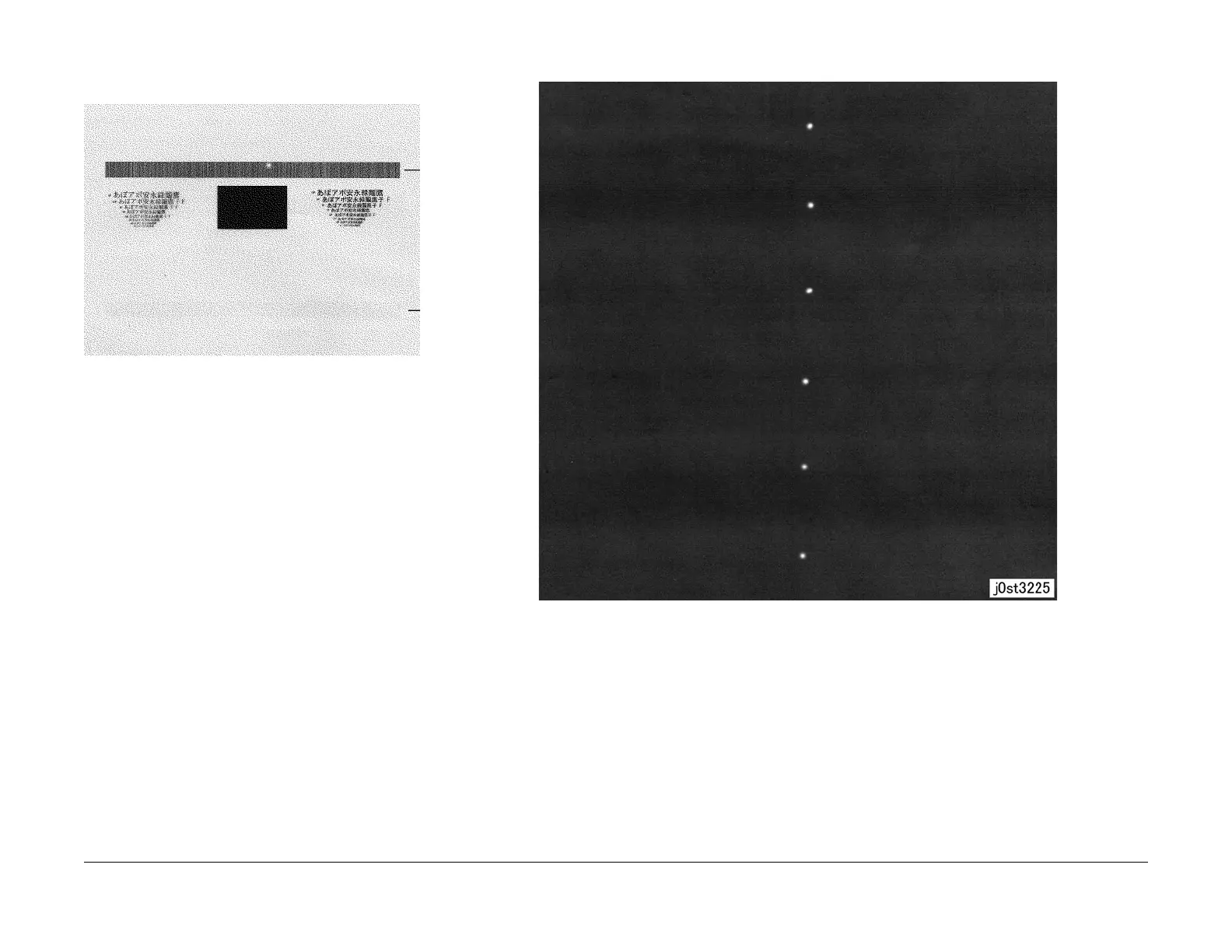

Figure 1 Regular Blanks In Process Direction (Spots, Streaks, Bands etc.) Defect Sample (j0st3225)
Cause
1. 94mm pitch -> Drum: Scratches or foreign substances
2. 28mm pitch -> Developer Roll: Developer material fixed on the Developer Roll
3. 44mm pitch -> Charger: Scratches or foreign substances
4. 80mm pitch -> Fuser H/R: Scratches or foreign substances
Corrective Action
1. 1, 4: Clean or replace the Xero/Developer Cartridge or the Fuser Unit.
2. 2, 3: Replace the Xero/Developer Cartridge.
