February, 2008
5-52
WorkCentre 5225, 5230
PL 13.3
Launch Version
Parts List

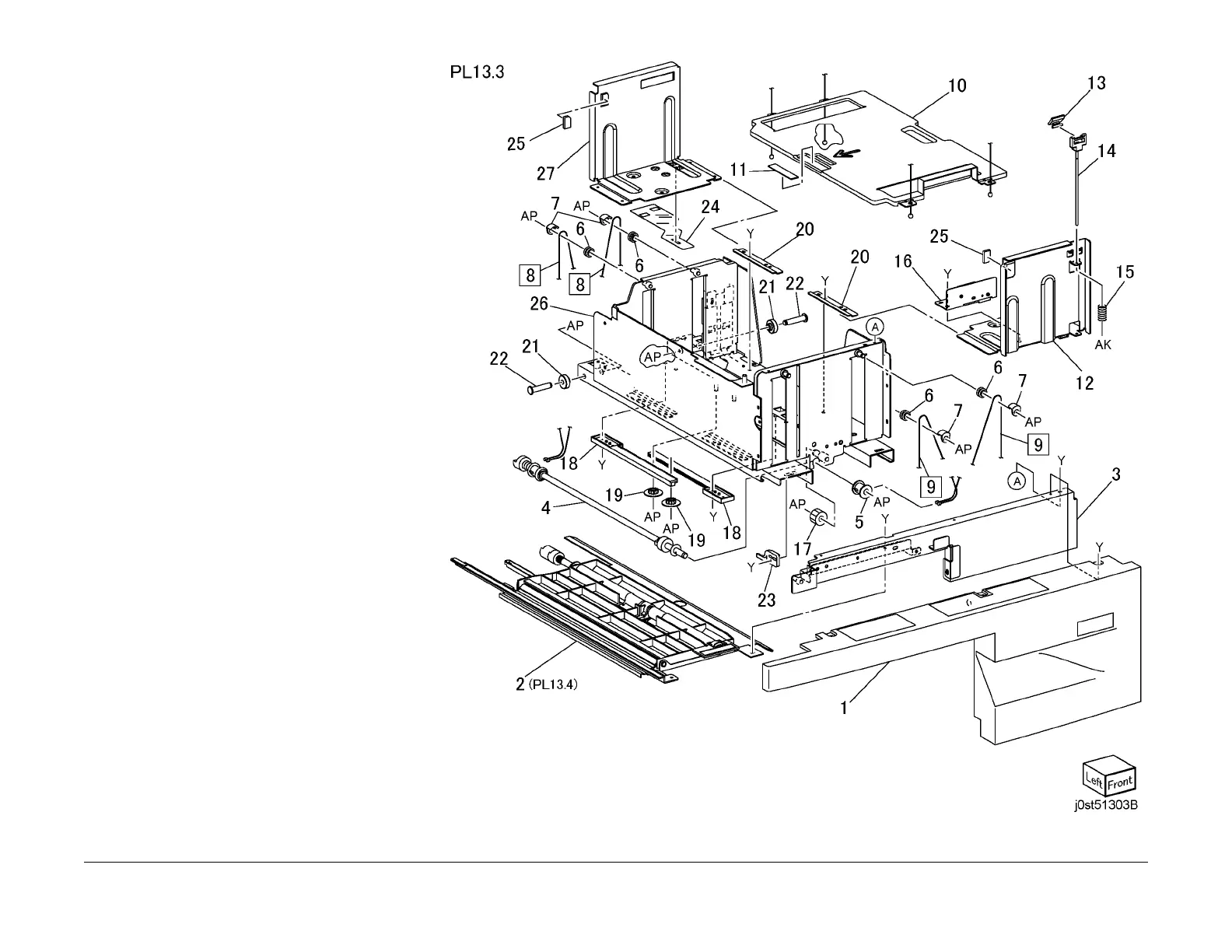

PL 13.3 Tray 4 Assembly-Tandem
Item Part Description
1 – Tray Cover (P/O PL 13.1 Item 3)
2 059K26340 Tray 4 Transport Assembly
3 – Frame (P/O PL 13.1 Item 3)
4 006K23014 Lift Shaft
5 020E36821 Pulley
6 – Pulley (P/O PL 13.2 Item 29)
7 – Cable Guide (P/O PL 13.2 Item 31)
8 – Rear Tray Cable (P/O PL 13.2 Item
30)
9 – Front Tray Cable (P/O PL 13.2 Item
30)
10 – Bottom Plate (P/O PL 13.1 Item 3)
11 – Pad (P/O PL 13.1 Item 3)
12 – Front Side Guide (P/O PL 13.1 Item
3)
13 – Knob (P/O PL 13.1 Item 3)
14 – Knob Assembly (P/O PL 13.1 Item
3)
15 – Spring (P/O PL 13.1 Item 3)
16 – Brake Bracket (P/O PL 13.1 Item 3)
17 007E78390 Gear
18 – Rack Gear (P/O PL 13.1 Item 3)
19 – Pinion (P/O PL 13.1 Item 3)
20 – Bracket (P/O PL 13.1 Item 3)
21 – Rail Roll (P/O PL 13.1 Item 3)
22 – Shaft (P/O PL 13.1 Item 3)
23 003E79750 Stopper
24 – Actuator (P/O PL 13.1 Item 3)
25 – Pad (P/O PL 13.1 Item 3)
26 – Frame (P/O PL 13.1 Item 3)
27 – Rear Side Guide (P/O PL 13.1 Item
3)
To Next Page
