February, 2008
4-19
WorkCentre 5225, 5230
REP 3.1.1
Repairs and Adjustments
Launch Version
REP 3.1.1 ROS Unit
Parts List on PL 3.1
Removal
WARNING
To avoid personal injury or shock, do not perform repair or adjustment with electrical power
applied to the machine.
1. Remove the following parts:
a. Xero/Developer Cartridge (REP 4.1.1)
b. Toner Cartridge (REP 4.1.2)
c. Top Cover Assembly (REP 10.1.1)
d. Remove the Front L/H Cover (1 screw).

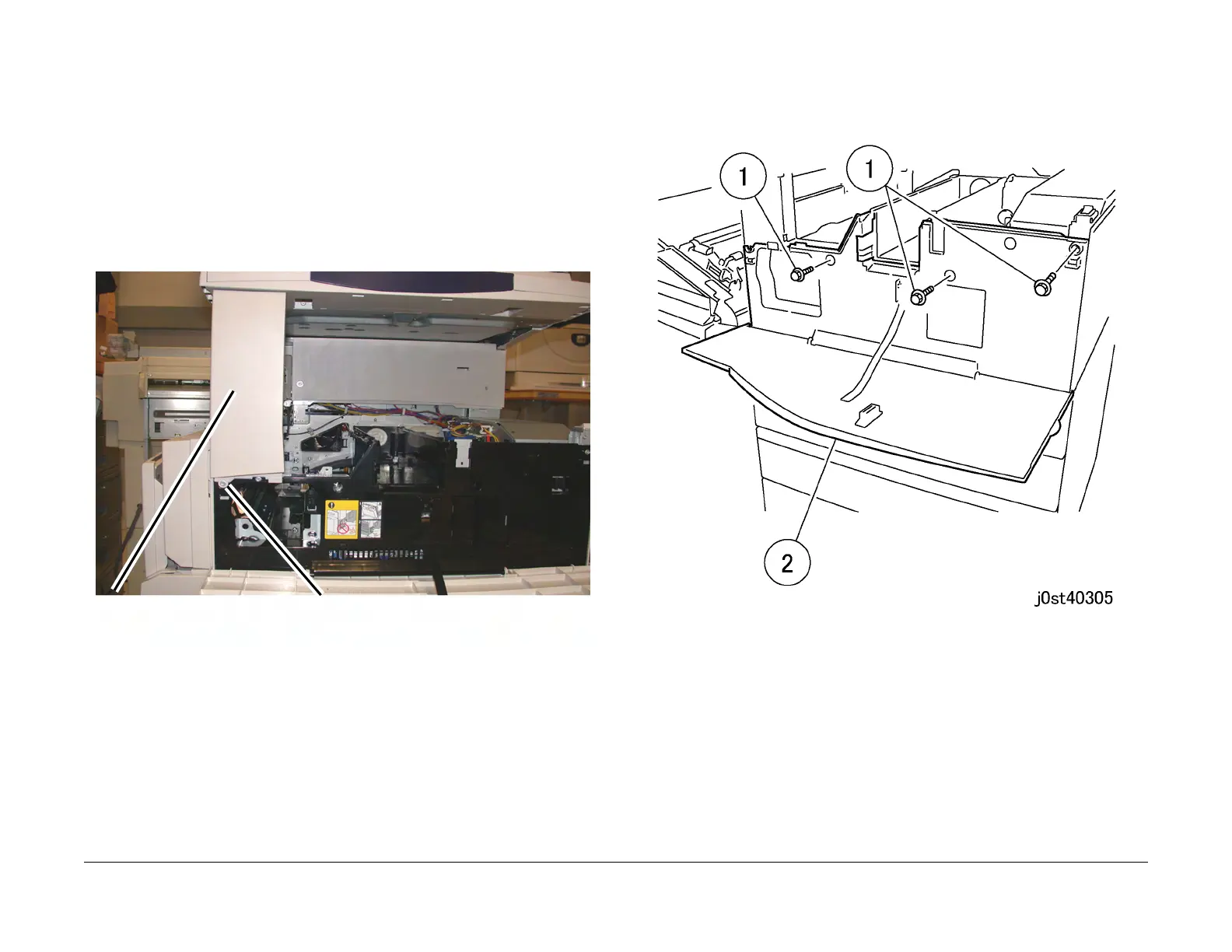

Figure 1 Removing the Front L/H Cover
2. Remove the Front Cover and the Inner Cover. (Figure 2)
1.Remove the screws (x3).
2.Remove the Inner Cover.
Figure 2 Removing the Inner Cover (j0st40305)
3. Remove the L/H Upper Cover.
4. Disconnect the connector. (Figure 3)
1.Disconnect the connector.
2.Release the Wire Harness from the Wire Harness Guide.
3.Release the Wire Harness from the Wire Harness Guide.
1
Remove the screw (1)
2
Remove the Front L/H Cover
To Next Page
