February, 2008
4-186
WorkCentre 5225, 5230
REP 22.5.1, REP 22.5.2
Launch Version
Repairs and Adjustments
REP 22.5.1 Pinch Roll
Parts List on PL 22.5
Removal
WARNING
To avoid personal injury or shock, do not perform repair or adjustment with electrical
power applied to the machine.
1. Remove the A-Finisher from the machine. (REP 22.1)
2. Remove the Compile Assembly. (REP 22.9.1)
3. Remove the Pinch Roll. (Figure 1)
(1)Raise Springs (4) in the direction of the arrow.
(2)Remove Pinch Rolls (4).

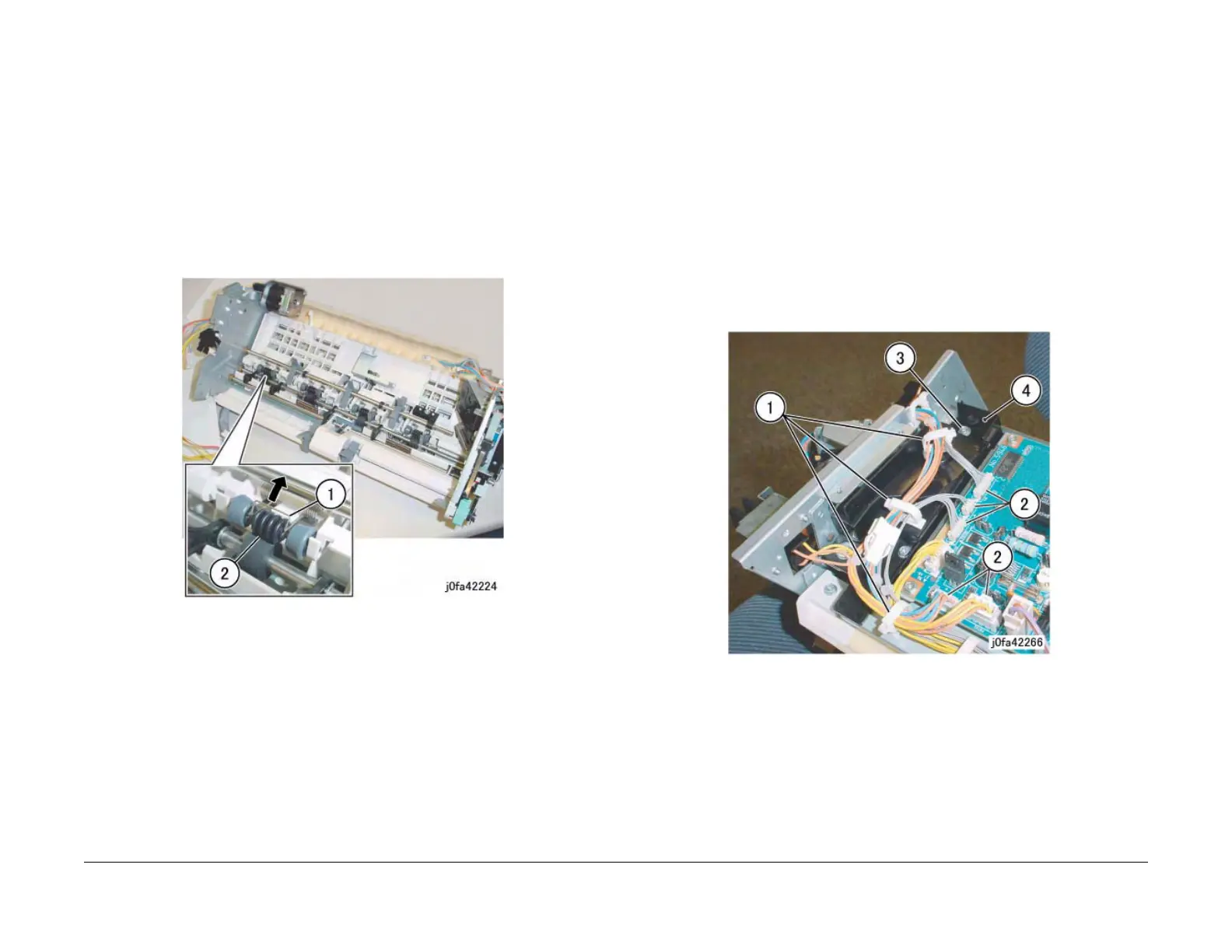

Figure 1 Removing the Pinch Rolls (j0fa42224)
Replacement
1. Reverse the removal procedure for replacement.
REP 22.5.2 Finisher Entrance Sensor
Parts List on PL 22.5
Removal
WARNING
To avoid personal injury or shock, do not perform repair or adjustment with electrical
power applied to the machine.
1. Remove the A-Finisher from the machine. (REP 22.1)
2. Turn over the A-Finisher.
3. Remove the Bottom Cover. (PL 22.2)
4. Remove the Connector Bracket. (Figure 1)
(1)Release Clamps (3) and remove the wires.
(2)Disconnect Connectors (5).
(3)Remove Screws (2).
(4)Remove Connector Bracket.
Figure 1 Removing the Connector Bracket (j0fa42266)
To Next Page
