WorkCentre 5225, 5230
PL 2.2
Parts List
Launch Version

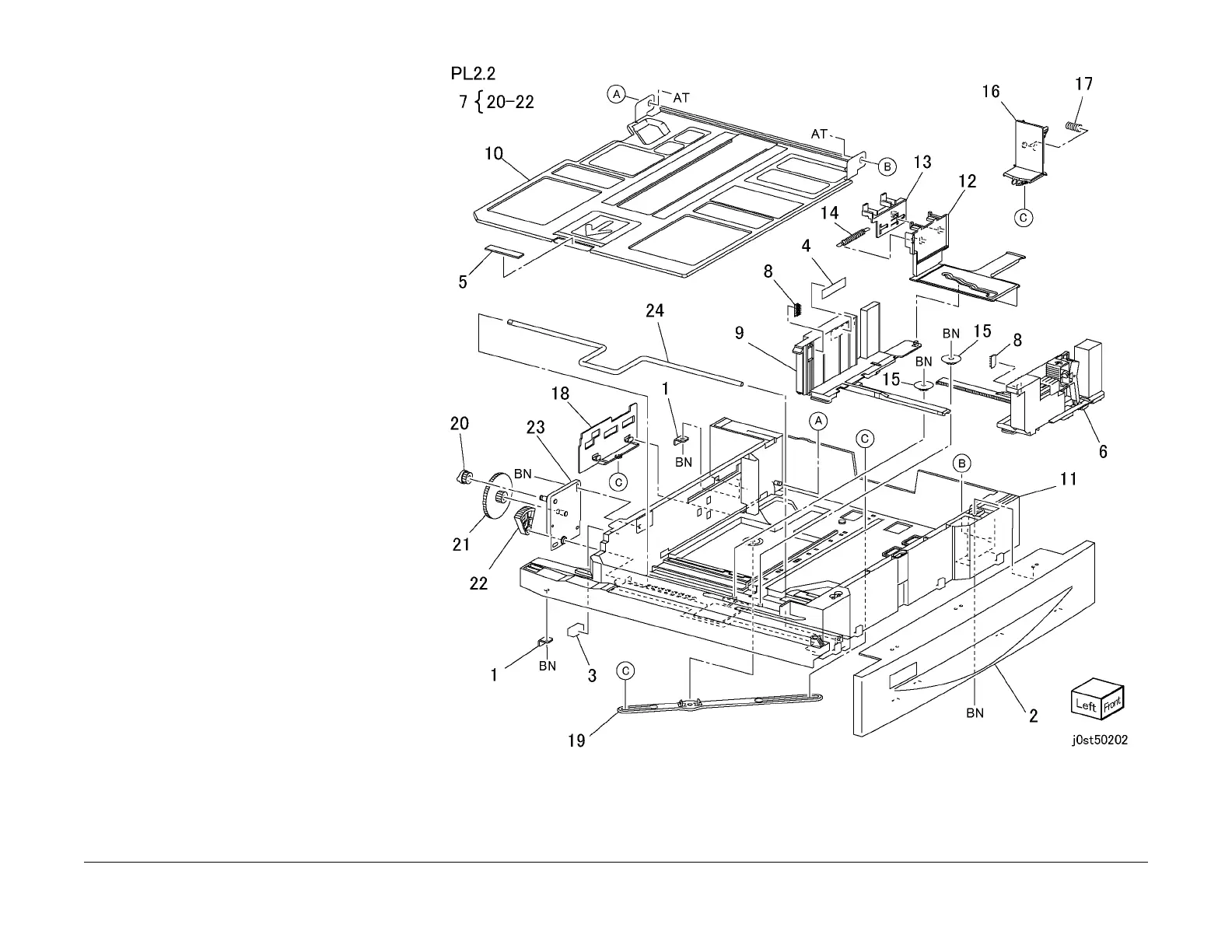

PL 2.2 Tray 1/2
Item Part Description
1 – Stopper (P/O PL 2.1 Item 3)
2 – (SCC) Tray Cover (P/O PL 2.1 Item
3)
3 – Seal (P/O PL 2.1 Item 3)
4 – Label (Max) (P/O PL 2.1 Item 3)
5 – Bottom Pad (P/O PL 2.1 Item 3)
6 – Front Side Guide (P/O PL 2.1 Item
3)
7 604K20541 Tray Gear Kit
8 – Tray Pad (P/O PL 2.1 Item 3)
9 – Rear Side Guide (P/O PL 2.1 Item
3)
10 – Bottom Plate (P/O PL 2.1 Item 3)
11 – Tray (P/O PL 2.1 Item 3)
12 – Side Guide Actuator (P/O PL 2.1
Item 3)
13 – Guide Actuator (P/O PL 2.1 Item 3)
14 – Spring (P/O PL 2.1 Item 3)
15 – Pinion Gear (P/O PL 2.1 Item 3)
16 – End Guide (P/O PL 2.1 Item 3)
17 – Spring (P/O PL 2.1 Item 3)
18 – End Guide Actuator (P/O PL 2.1
Item 3)
19 – Link (P/O PL 2.1 Item 3)
20 – Coupling Gear (P/O PL 2.2 Item 7)
21 – Gear (13T/60T) (P/O PL 2.2 Item 7)
22 – Sector Gear (P/O PL 2.2 Item 7)
23 – Bracket (P/O PL 2.1 Item 3)
24 – Lift Up Shaft (P/O PL 2.1 Item 3)
