Xerox WorkCentre 5230 User Manual

February, 2008
4-123
WorkCentre 5225, 5230
REP 15.6.1
Repairs and Adjustments
Launch Version

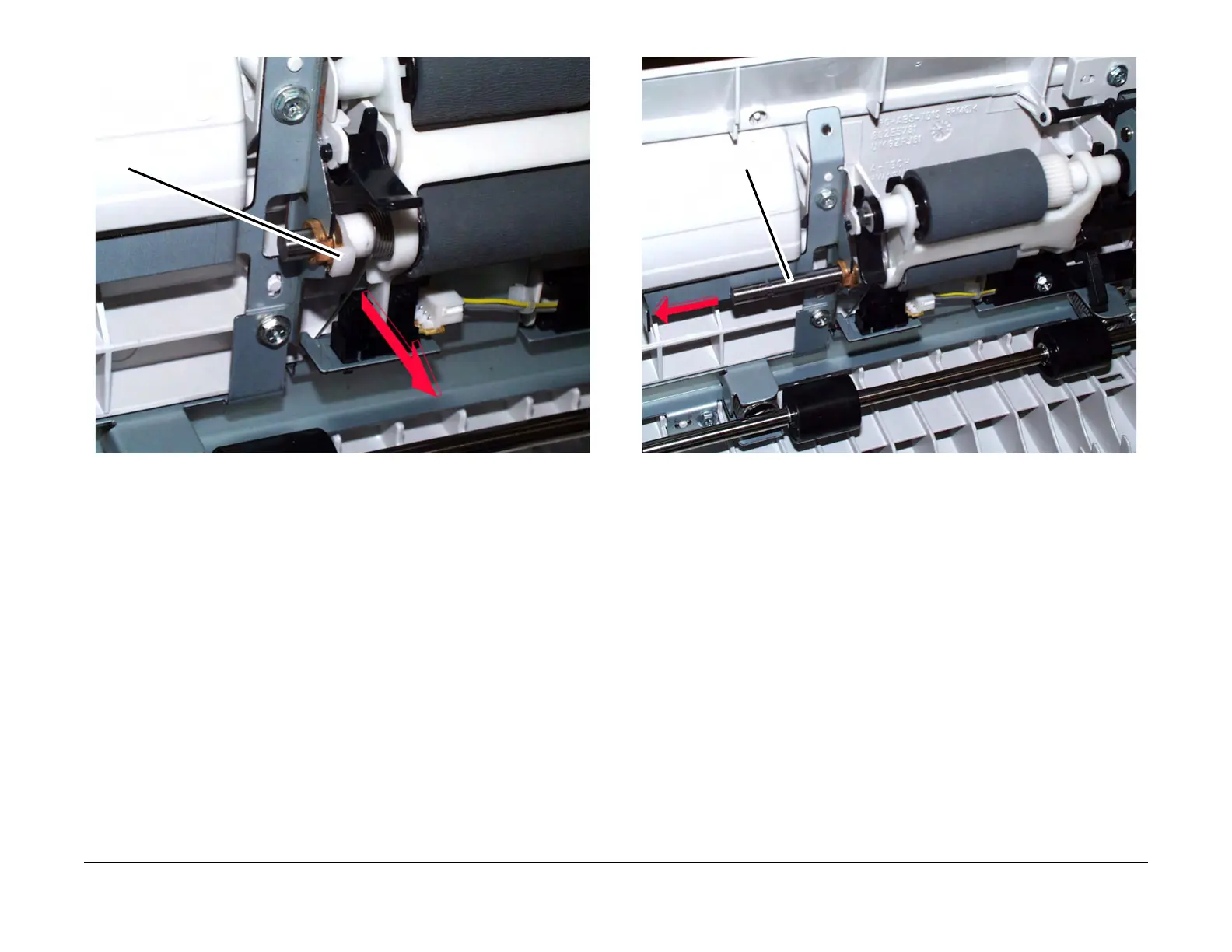

Figure 5 Removing the Feed Roll Locking Tab
8. Remove the Feed Roll Shaft and remove the Feed Roll. (Figure 6)
Figure 6 Removing the Feed Roll shaft and the Feed Roll
Replacement
1. Extend the Nudger Roll by rotating the Torque Limiter inboard gear.
2. Install the Nudger Roll and Nudger Roll shaft. The shaft is spring loaded so push in the
shaft and hold it and install the locking clip. (Figure 7)
Feed Roll Locking
Tab
Feed Roll Shaft
