4-34
WorkCentre 5225, 5230
REP 7.1.1
Launch Version
Repairs and Adjustments

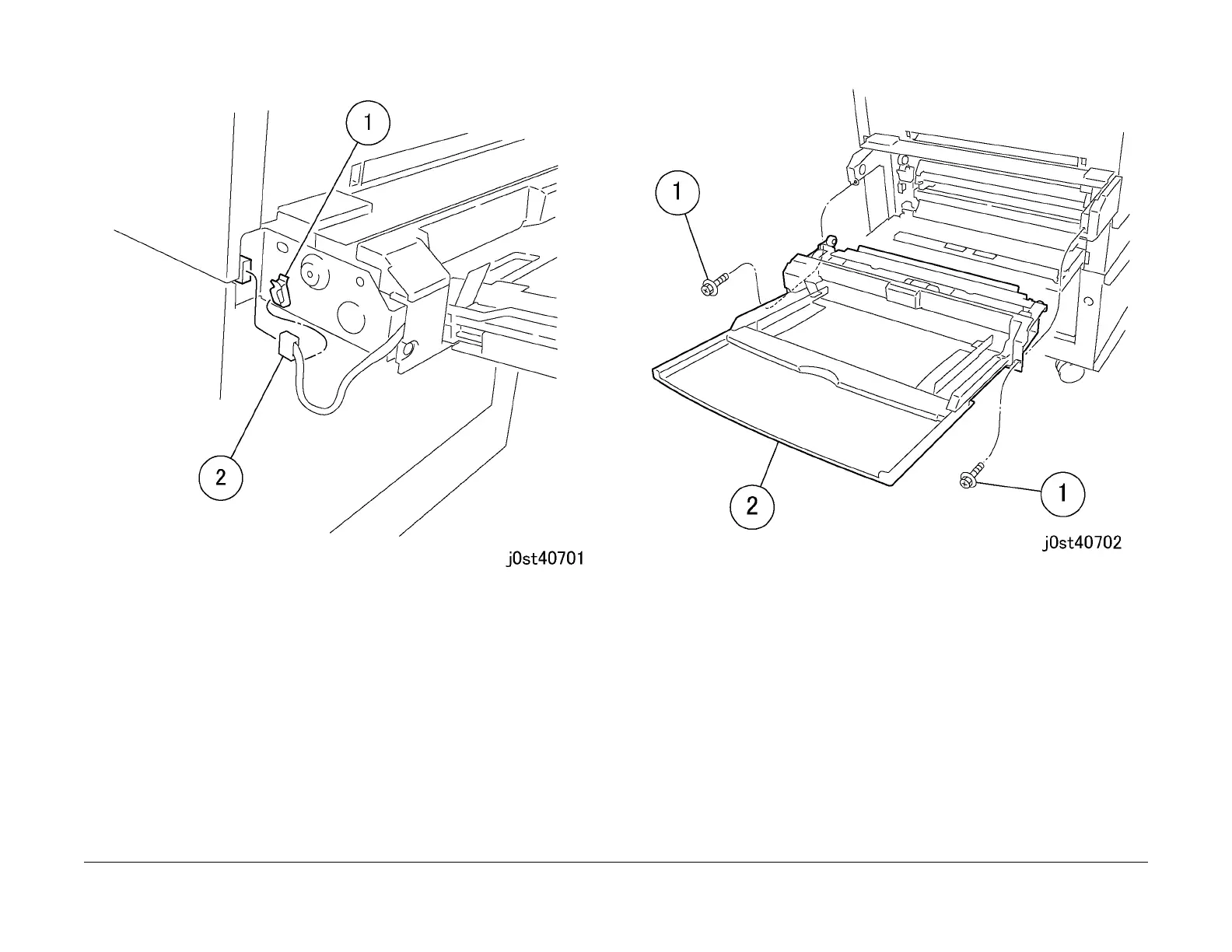

Figure 2 Disconnecting the connector (j0st40701)
3. Remove the MPT Assembly. (Figure 3)
1.Remove the screws (x2).
2.Remove the MPT Assembly.
Figure 3 Removing the MPT Assembly (j0st40702)
Replacement
1. To install, carry out the removal steps in reverse order.

Xerox WorkCentre 5230 Specifications

General

Maximum print size	A3 (297 x 420 mm)
Standard input capacity	500 sheets
Internal memory	No MB
Type	Digital copier
