February, 2008
4-8
WorkCentre 5225, 5230
REP 2.1.1
Launch Version
Repairs and Adjustments

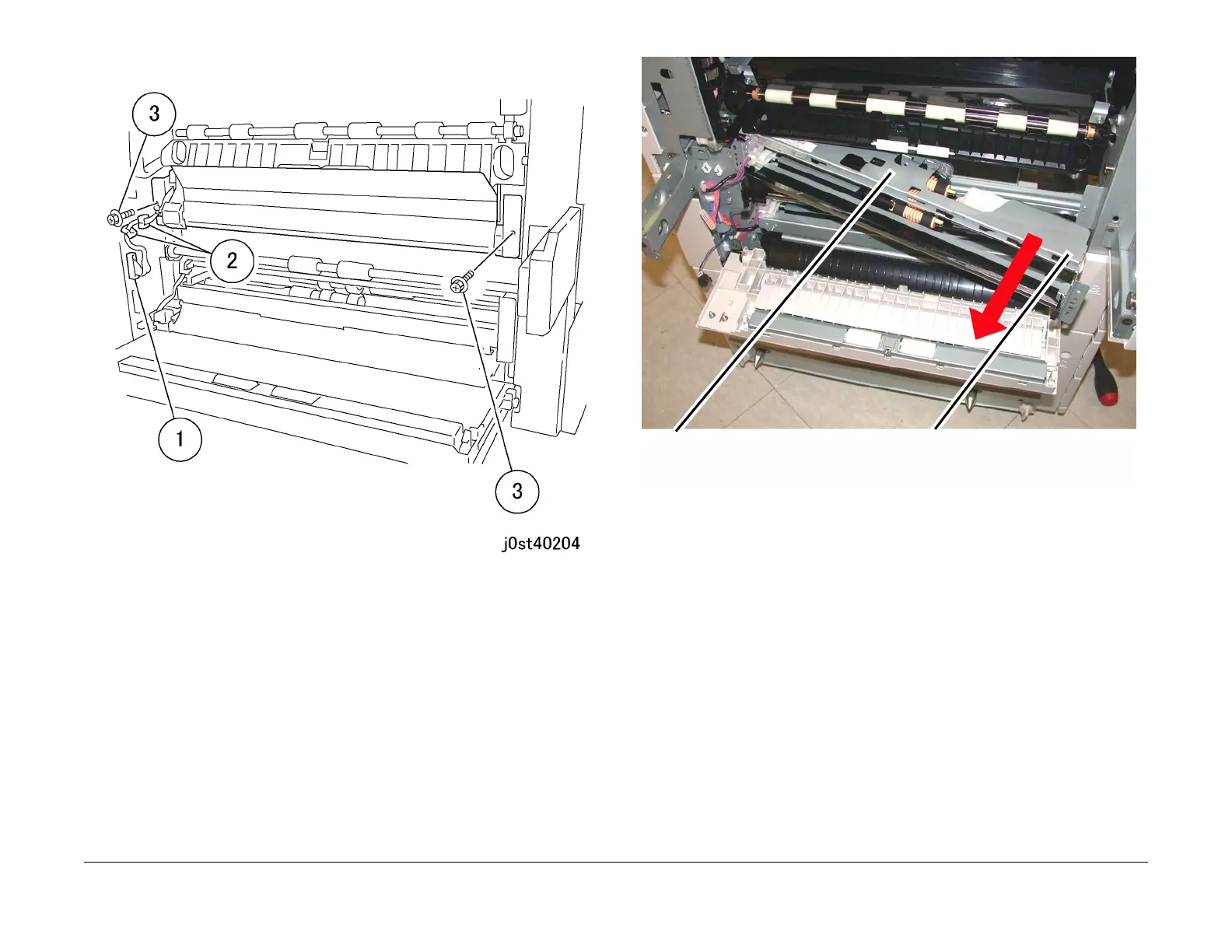

Figure 3 Preparing to removing the Feeder 1 Assembly
8. Removing the Feeder 1 Assembly. (Figure 4)
Figure 4 Removing the Feeder 1 Assembly
Replacement
1. To install, carry out the removal steps in reverse order.
1
Move the Feeder Assembly
toward the front
2
Remove the Feeder 1 Assembly
