Xerox WorkCentre 5230 User Manual

February, 2008
5-34
WorkCentre 5225, 5230
PL 9.4
Launch Version
Parts List

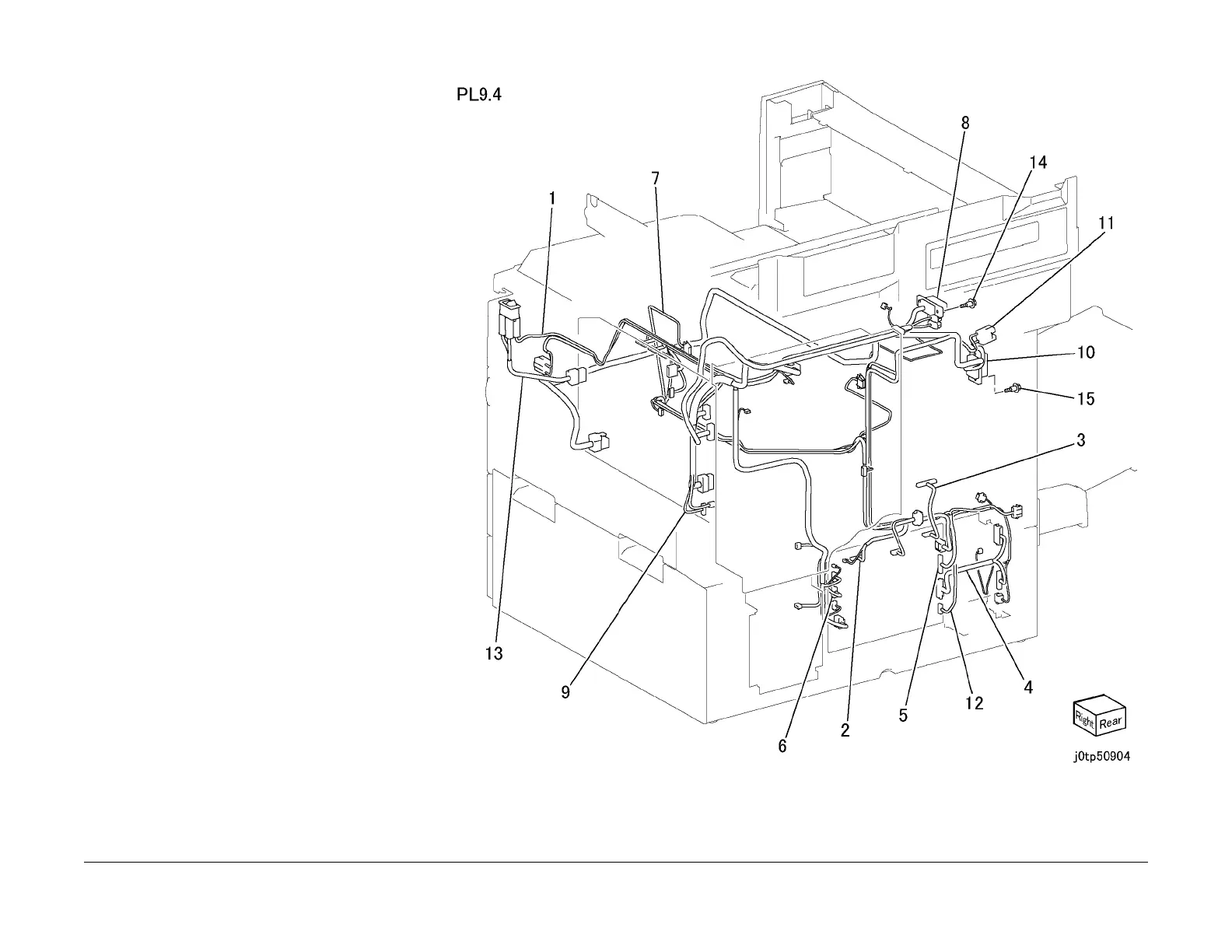

PL 9.4 Wire Harnesses
Item Part Description
1 962K13510 Wire Harness Switch 2
2 962K13080 Wire Harness ROS
3 962K13090 Wire Harness Drive
4 – Wire Harness Feeder
5 – Wire Harness PH (Not Spared)
6 962K13140 Wire Harness Size
7 962K13200 Wire Harness Crum
8 962K13211 Wire Harness Exit
9 – Wire Harness LVPS Power (Not
Spared)
10 960K16185 Wire Harness Fuser AC
11 962K19220 Wire Harness Interlock
12 962K23600 Wire Harness MPT
13 962K13500 Wire Harness Switch 1
14 – Shoulder Screw (Not Spared)
15 – Shoulder Screw (Not Spared)

Xerox WorkCentre 5230 Specifications

General

Maximum print size	A3 (297 x 420 mm)
Standard input capacity	500 sheets
Internal memory	No MB
Type	Digital copier
