Xerox WorkCentre 5230 User Manual

February, 2008
5-87
WorkCentre 5225, 5230
PL 22.10
Parts List
Launch Version

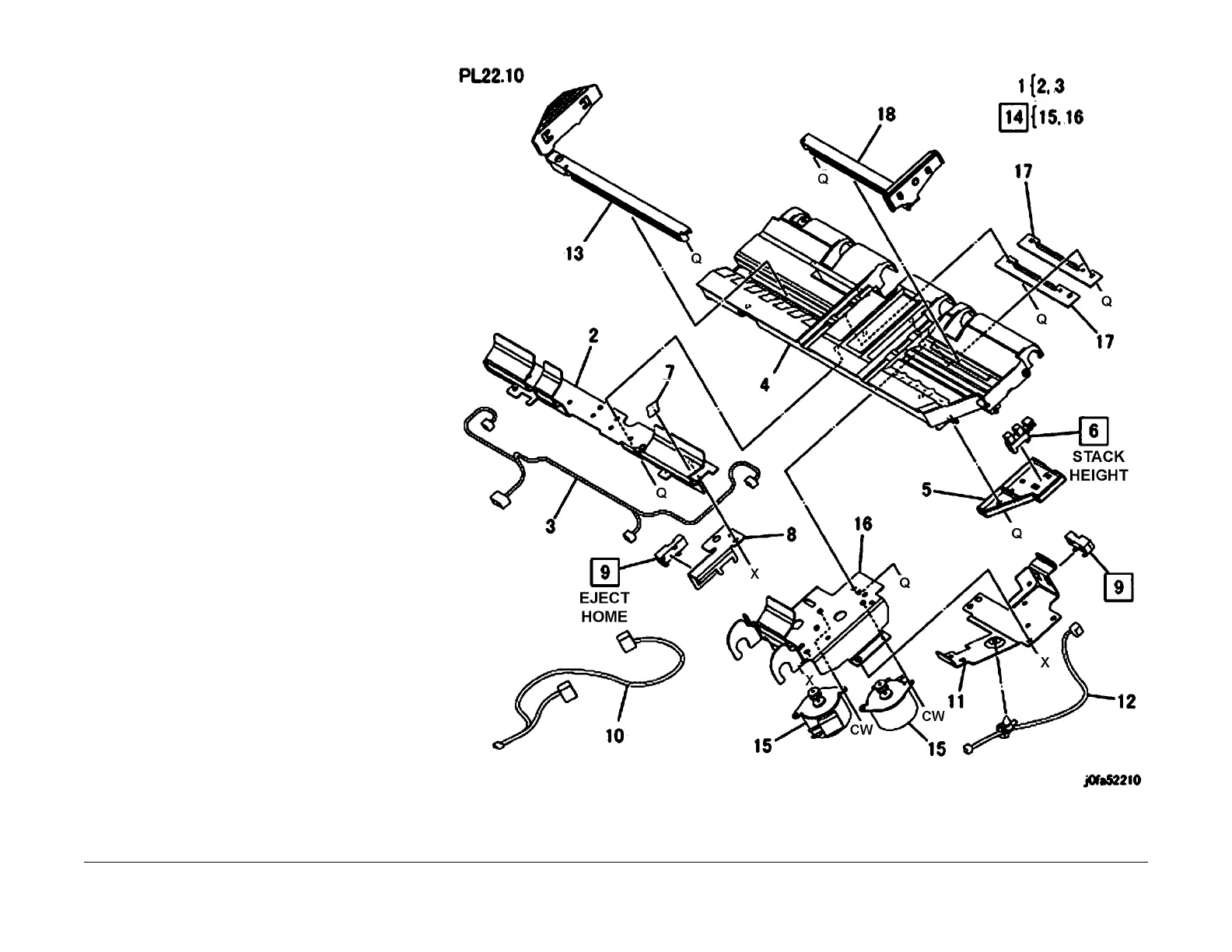

PL 22.10 Compile Assembly (Part 2 of
2)
Item Part Description
1 068K30510 Bracket Assembly
2 – Bracket (P/O PL 22.10 Item 1)
3 – Wire Harness (P/O PL 22.10 Item
1)
4 050E24260 Compile Tray
5 – Support (Not Spared)
6 930W00111 (SCC) Front Tamper Home Sensor
(REP 22.10.2)
7 038E34860 Paper Guide
8 – Bracket (Not Spared)
9 930W00212 Eject Home Sensor (P/O PL 22.10
Item 7) (REP 22.10.3)
– – Stack Height Sensor (REP 22.10.4)
10 962K42270 Wire Harness
11 – Bracket (P/O PL 22.10 Item 10)
12 – Wire Harness (P/O PL 22.10 Item
10)
13 038K88990 Tamper Guide, Rear
14 068K30740 Front/Rear Tamper Motor Assembly
(REP 22.10.1)
15 – Front / Rear Tamper Motor (P/O PL
22.10 Item 14)
16 – Bracket (P/O PL 22.10 Item 14)
17 001E70981 Rail
18 038K89260 Tamper Guide, Front
