February, 2008
4-89
WorkCentre 5225, 5230
REP 13.1.1
Repairs and Adjustments
Launch Version
REP 13.1.1 Tray 3 Assembly (TTM)
Parts List on PL 13.1
Removal
WARNING
To avoid personal injury or shock, do not perform repair or adjustment with electrical
power applied to the machine.
CAUTION
To prevent data loss when the power is turned off, please note the following.
FAX Models
Check that the “Stored Documents” lamp is not on, and press the Job Status button to ensure
that there are no jobs in progress.
Printer Models
Check that “Ready to Print/Send” is displayed on the Control Panel display.
1. Pull out Tray 3.
2. Remove the paper from Tray 3.
3. Open the Left Cover Assembly.

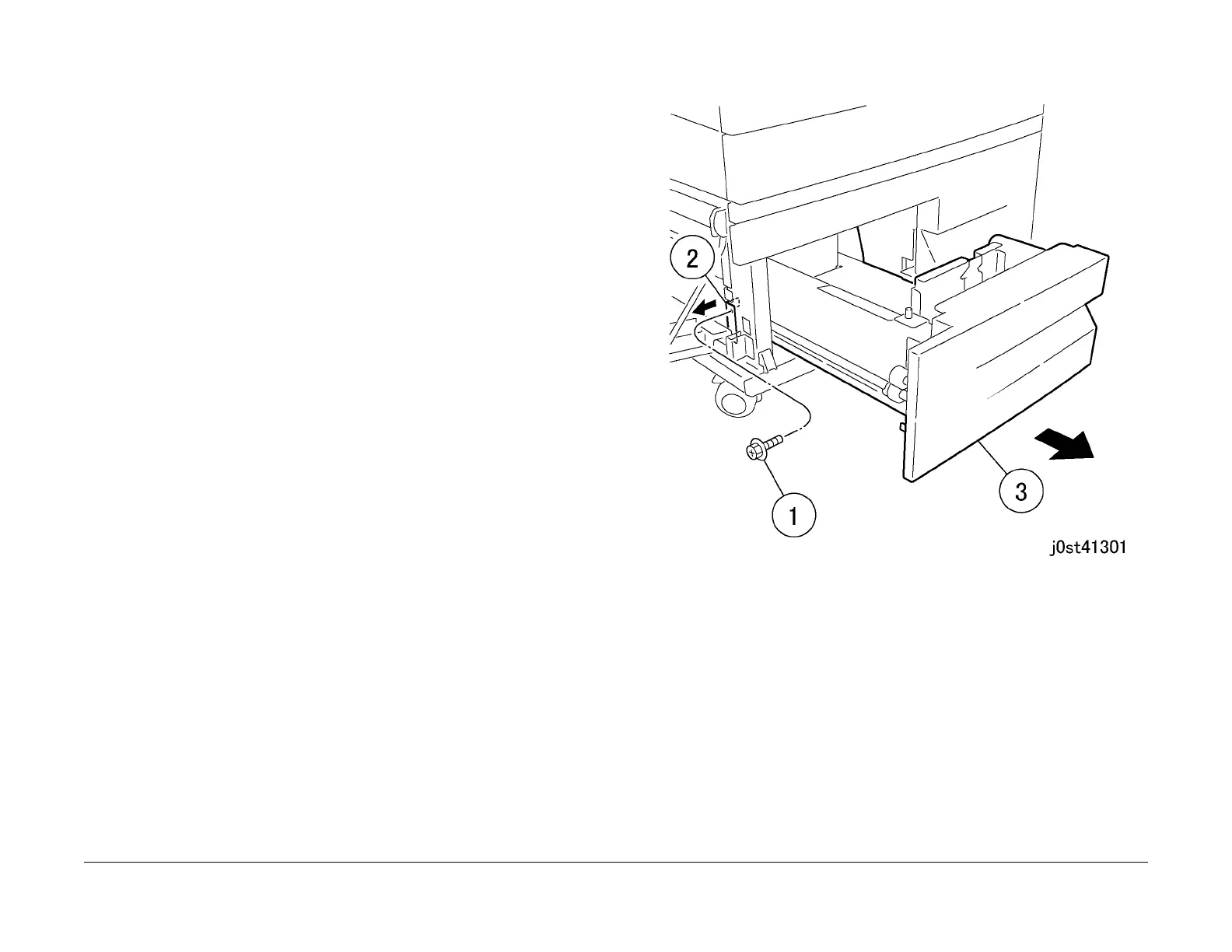

4. Remove the Tray 3 Assembly. (Figure 1)
1. Remove the screw.
2. Slide the stopper.
3. Remove the Tray 3 Assembly.
Figure 1 Removing the Tray 3 Assembly (j0st41301)
Replacement
1. To install, carry out the removal steps in reverse order.
