Xerox WorkCentre 5230 User Manual

February, 2008
4-137
WorkCentre 5225, 5230
REP 16.2.5
Repairs and Adjustments
Launch Version
2. Position the Eject Cover so that the Latch is inserted in the hole. (Figure 3)
NOTE: The Latch must be outside the hole.

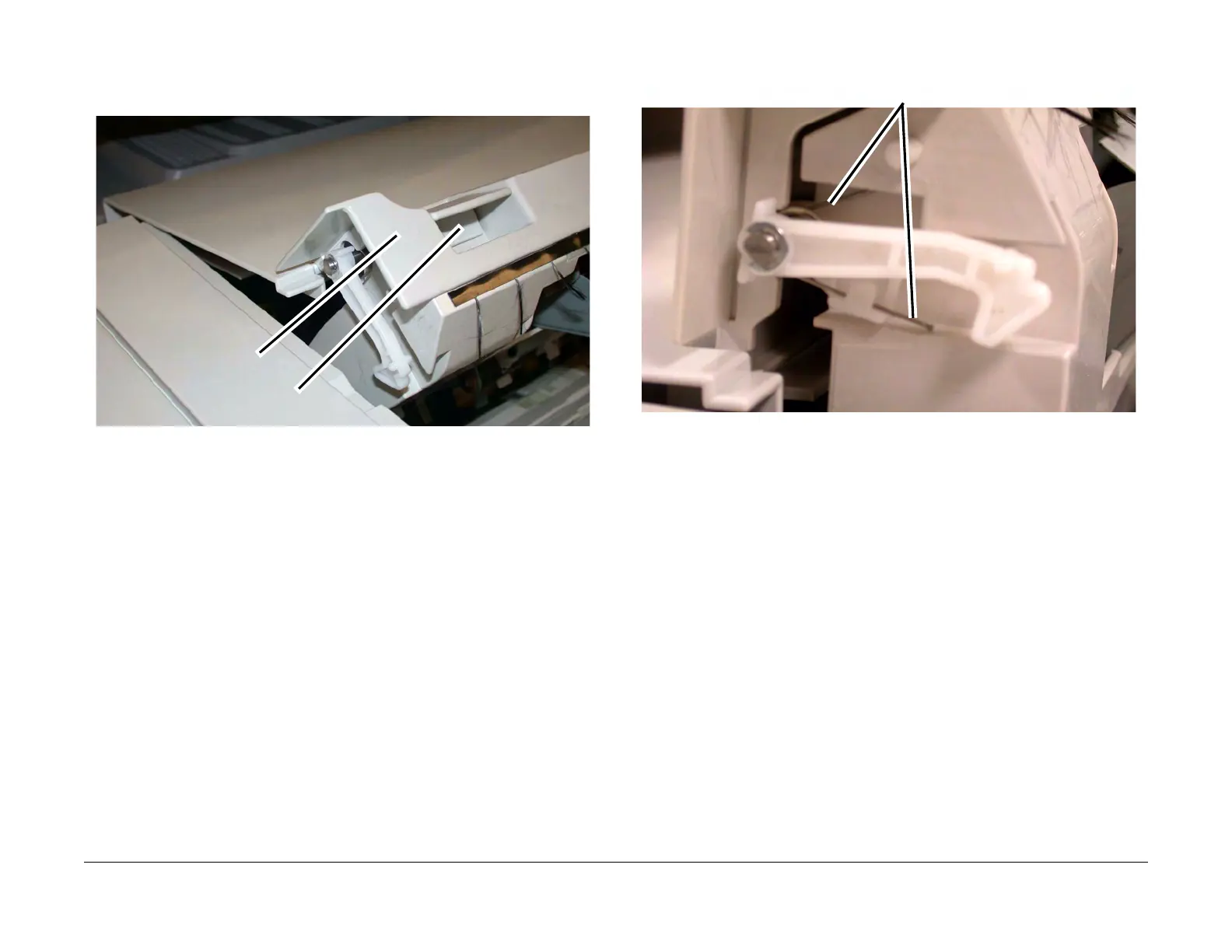

Figure 3 Inserting the Latch through the hole in the Cover (j0st41688)
3. Place the Latch Spring in the position shown. (Figure 4)
Figure 4 Positioning the Latch Spring (j0st41692)
Latch
Eject Cover
Latch Spring
