Xerox WorkCentre 5230 User Manual

February, 2008
4-76
WorkCentre 5225, 5230
REP 11.5.2
Launch Version
Repairs and Adjustments

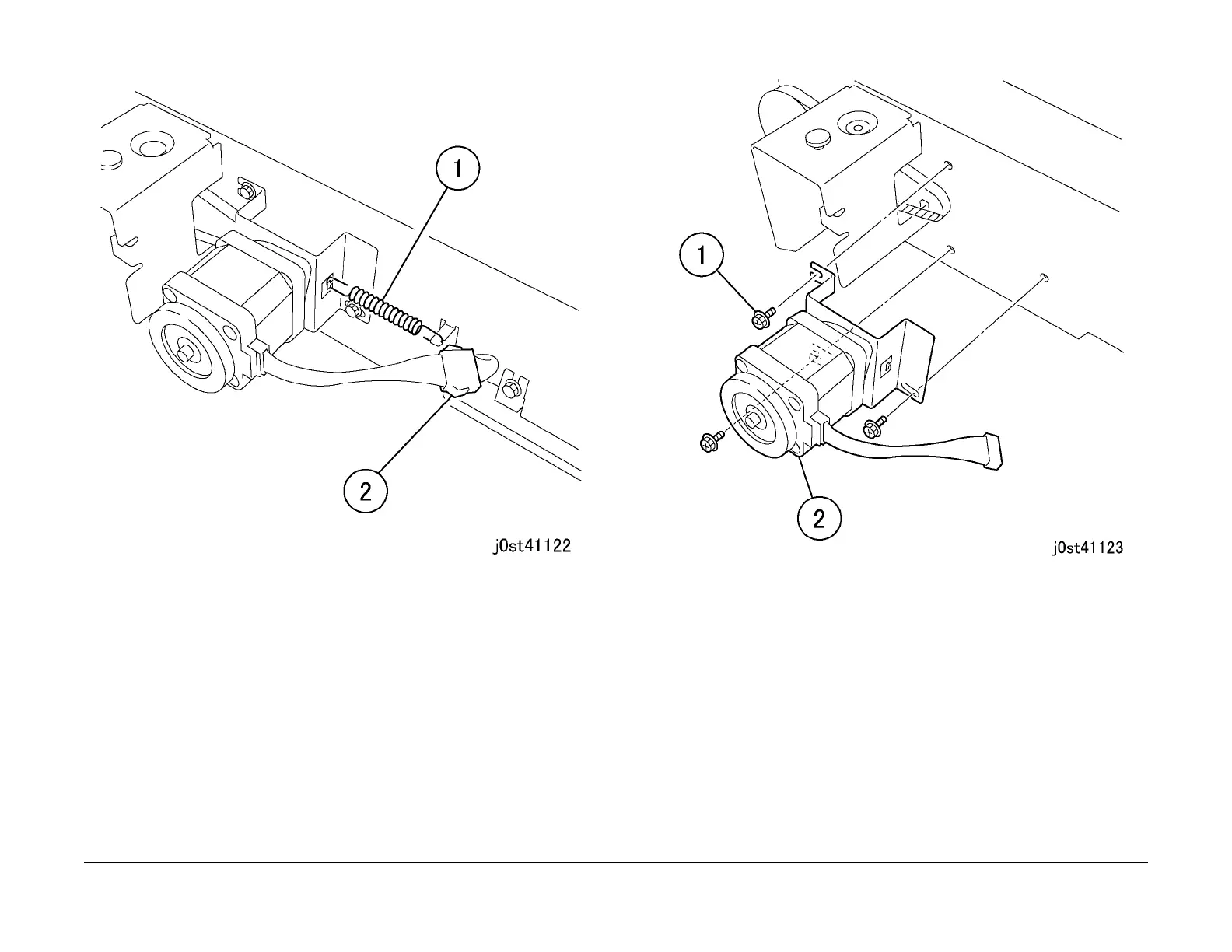

Figure 3 Disconnecting the connector (j0st41122)
4. Remove the Carriage Motor Assembly. (Figure 4)
1. Remove the screws (x3).
2. Remove the Carriage Motor Assembly.
Figure 4 Removing the Carriage Motor Assembly (j0st41123)
Replacement
1. To install, carry out the removal steps in reverse order.

Xerox WorkCentre 5230 Specifications

General

Maximum print size	A3 (297 x 420 mm)
Standard input capacity	500 sheets
Internal memory	No MB
Type	Digital copier
