Xerox WorkCentre 5230 User Manual

February, 2008
5-78
WorkCentre 5225, 5230
PL 22.1
Launch Version
Parts List

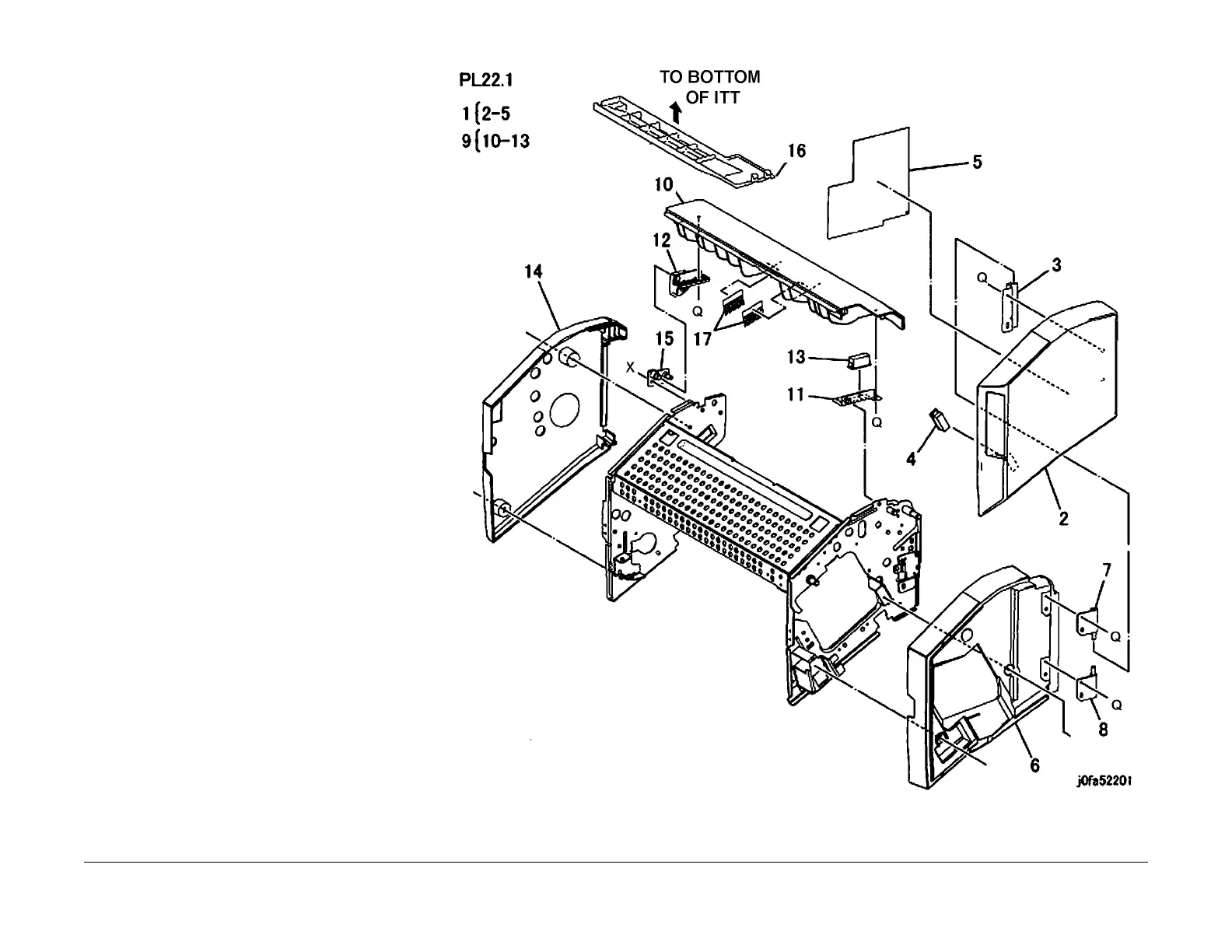

PL 22.1 Finisher Assembly (Part 1 of
2)
Item Part Description
1 848K16210 Front Cover Assembly
2 – Front Cover (P/O PL 22.1 Item 1)
3 – Bracket (P/O PL 22.1 Item 1)
4 – Magnet (P/O PL 22.1 Item 1)
5 – Label (P/O PL 22.1 Item 1)
6 – Front Inner Cover (Not Spared)
7 068K29871 Hinge
8 068K29880 Hinge
9 848K07550 Top Cover Assembly
10 – Top Cover (P/O PL 22.1 Item 9)
11 – Bracket (P/O PL 22.1 Item 9)
12 – Stopper (P/O PL 22.1 Item 9)
13 – Magnet (P/O PL 22.1 Item 9)
14 848E14680 Rear Cover
15 – Hinge (Not Spared)
16 – ITT Cover (Not Spared)
17 042E92330 Eliminator
