5-42
WorkCentre 5225, 5230
PL 11.6
Launch Version
Parts List

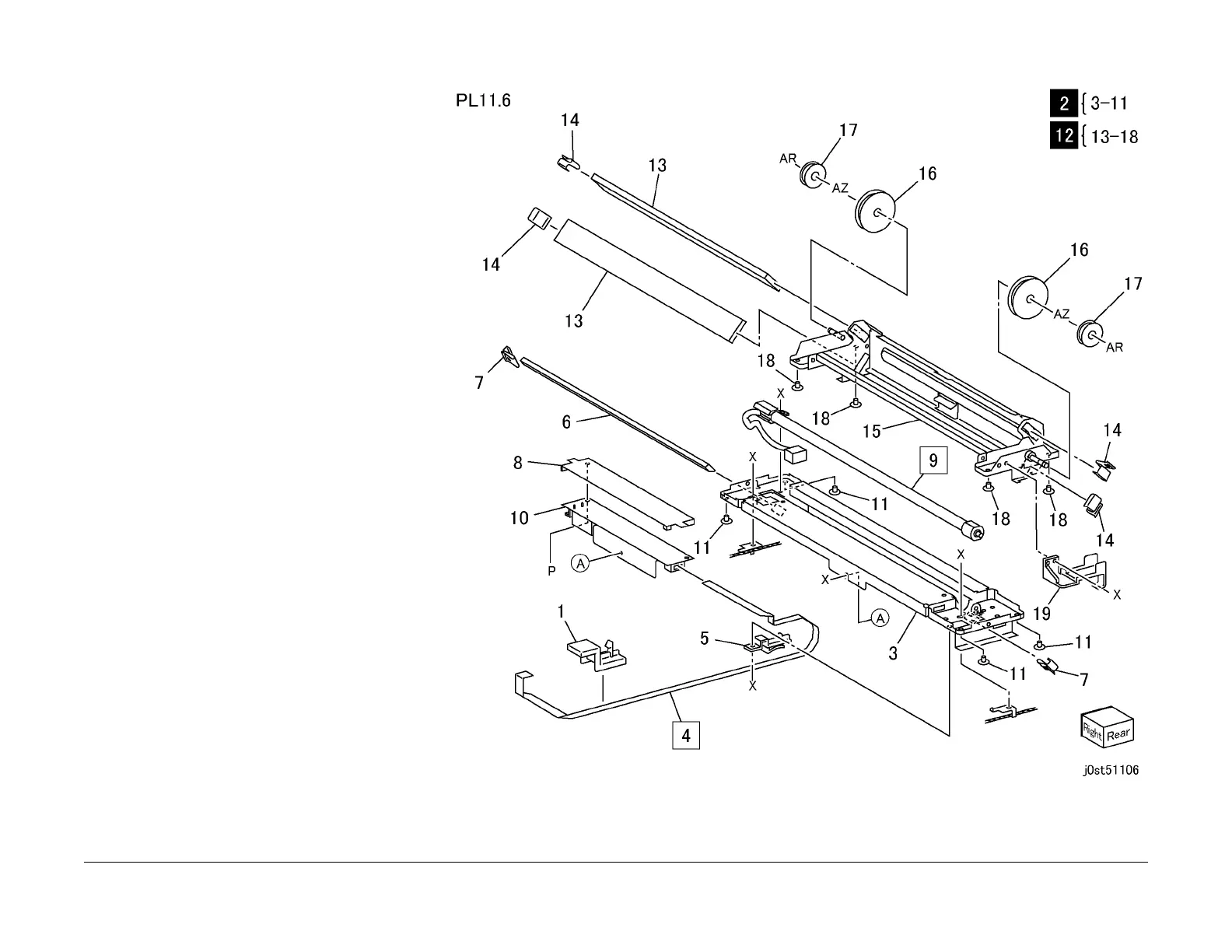

PL 11.6 Full/Half Rate Carriage
Item Part Description
1 – Harness Guide (Not Spared)
2 041K95940 Full Rate Carriage Assembly
3 – Full Rate Carriage (P/O PL 11.6
Item 2)
4 117E27590 Lamp Wire Harness (REP 11.6.2)
5 – Guide (P/O PL 11.6 Item 2)
6 062E10800 No. Mirror
7 – Clip (P/O PL 11.6 Item 2)
8 – Insulator (P/O PL 11.6 Item 2)
9 122K93780 Exposure Lamp (REP 11.6.1)
10 105E16210 Lamp Ballast PWB
11 – Pad (P/O PL 11.6 Item 2)
12 041K94910 Half Rate Carriage Assembly (ADJ
11.6.1)
13 – No.2 Mirror, No.3 Mirror (P/O PL
11.6 Item 12)
14 – Clip (P/O PL 11.6 Item 12)
15 – Half Rate Carriage (P/O PL 11.6
Item 12)
16 – Pulley (P/O PL 11.6 Item 12)
17 – Pulley (P/O PL 11.6 Item 12)
18 – Pad (P/O PL 11.6 Item 12)
19 – Guide (P/O PL 11.6 Item 12)
