Xerox WorkCentre 5230 User Manual

February, 2008
4-159
WorkCentre 5225, 5230
REP 16.2.25, REP 16.2.26
Repairs and Adjustments
Launch Version
REP 16.2.25 Front/Rear Tamper Home Sensors
Parts List on PL 23.12
Removal
WARNING
To avoid personal injury or shock, do not perform repair or adjustment with electrical
power applied to the machine.
1. Remove the Compiler Tray Assembly. (REP 16.2.13)
2. Turn the Compiler Tray over on a work surface. (Figure 1)
3. Disconnect the connector.
4. Remove the Front or Rear Tamper Home Sensor. (PL 23.12)

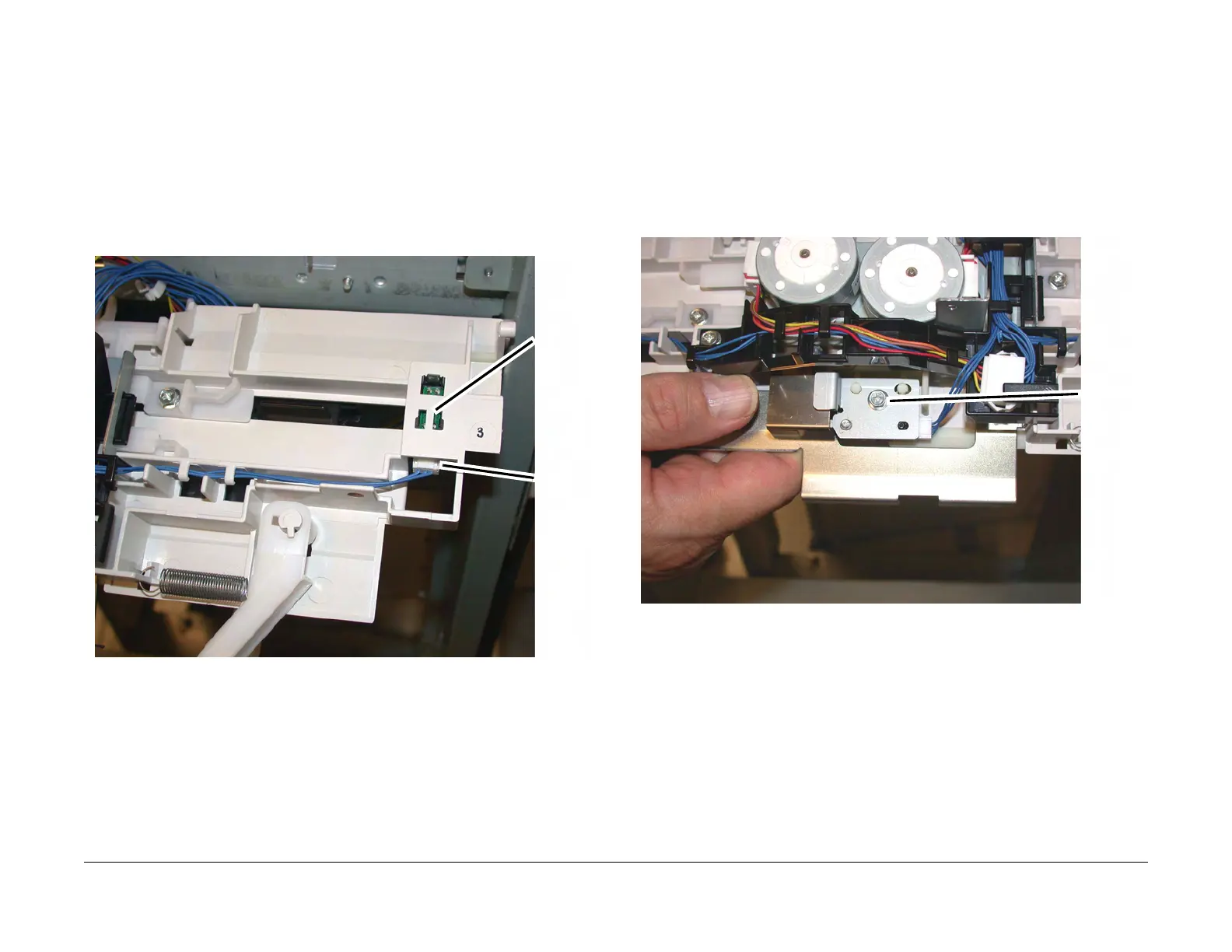

Figure 1 Removing the Front or Rear Tamper Home Sensor (j0st41733)
REP 16.2.26 Compiler No Paper Sensor
Parts List on PL 23.12
Removal
WARNING
To avoid personal injury or shock, do not perform repair or adjustment with electrical
power applied to the machine.
1. Remove the Compiler Tray Assembly. (REP 16.2.13)
2. Turn the Compiler tray over on a work surface.
3. Remove the screw (1) that secures the bracket. (PL 23.12) (Figure 1)
Figure 1 Removing the Bracket (j0st41733)
4. Disconnect the connector. (Figure 2)
5. Remove the screw (1) that secures the sensor.
6. Remove the Compiler No Paper Sensor.
1
Discon-
nect the
connec-
tor
Rear
Tamper
Home
Sensor
Remove
the
screw
(1)
