4-212
WorkCentre 5225, 5230
REP 22.9.5
Launch Version
Repairs and Adjustments
7. Remove the Bottom Plate. (Figure 2)
(1)Release Clamps (5) and remove the wires.
(2)Disconnect Connectors (8).
(3)Remove wires from Hooks (4).
(4)Remove Screw (4).
(5)Remove Bottom Plate.

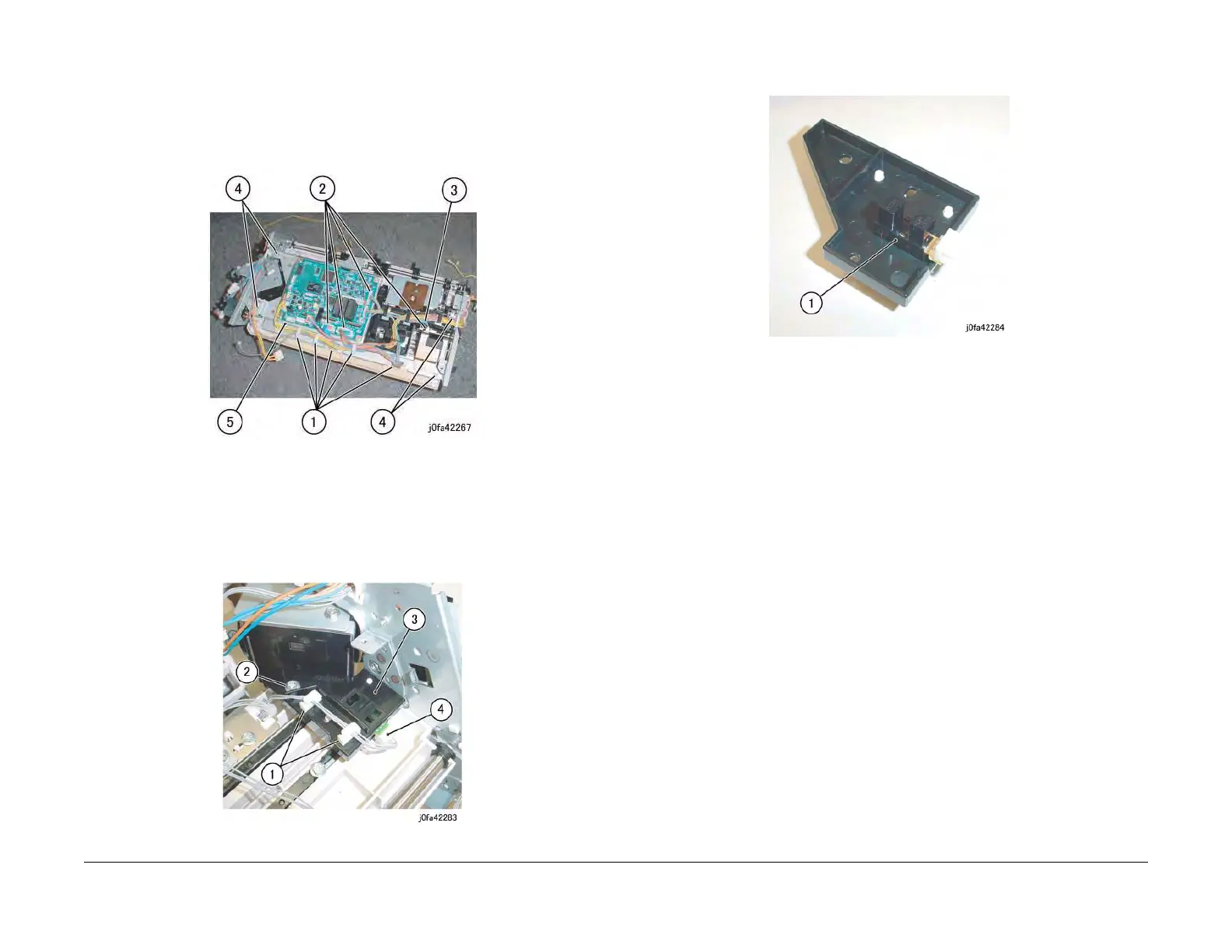

Figure 2 Moving the Bottom Plate (j0fa42267)
8. Remove the Rear Tamper Home Sensor Assembly. (Figure 3)
(1) Release Clamps (2) and remove the wires.
(2) Remove Tapping Screw.
(3) Move Rear Tamper Home Sensor Assembly.
(4) Disconnect the Connector.
Figure 3 Removing the Rear Tamper Home Sensor Assembly (j0fa42283)
9. Remove the Rear Tamper Home Sensor. (Figure 4)
(1)Remove Rear Tamper Home Sensor from the Bracket.
Figure 4 Removing the Rear Tamper Home Sensor (j0fa42284)
Replacement
1. Reverse the removal procedure for replacement.
