February, 2008
4-49
WorkCentre 5225, 5230
REP 7.3.10, REP 7.3.11
Repairs and Adjustments
Launch Version
REP 7.3.10 HCF Takeaway Roll
Parts List on PL 18.7
Removal
WARNING
To avoid personal injury or shock, do not perform repair or adjustment activities with
the power switch on or electrical power applied to the machine.
1. Remove the HCF Feed Motor. (REP 7.3.12)
2. Remove the Lower Chute. (Figure 1)
• Remove the (2) securing screws.

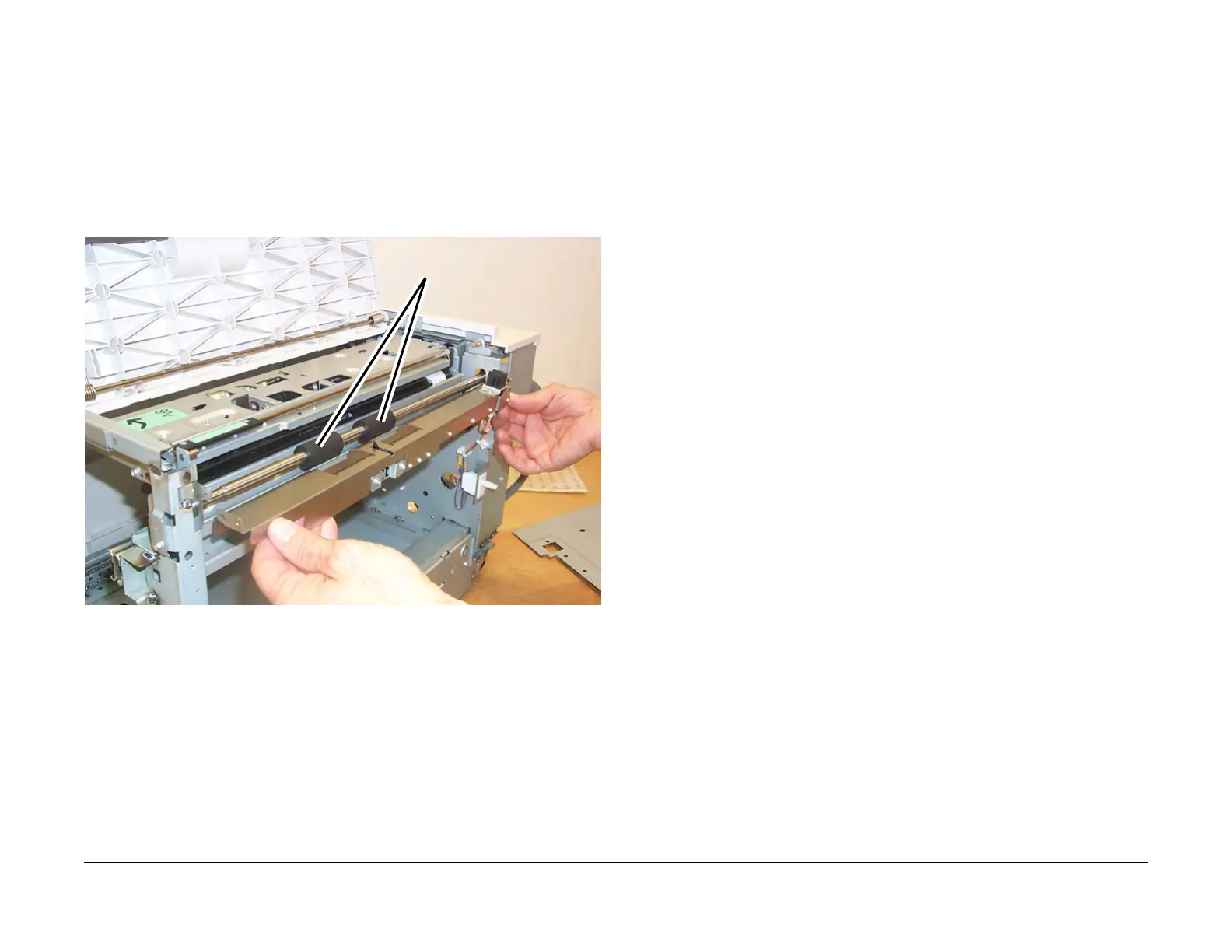

Figure 1 Removing the Lower Chute
3. Slide the Takeaway Roll to the right until the left side is released, then lower the roll to
remove.
Replacement
1. To install, carry out the removal steps in reverse order.
2. When replacing, enter into Diagnostic mode and then clear the DC135HFSI counter.
REP 7.3.11 HCF PWB
Parts List on PL 18.8
Removal
WARNING
To avoid personal injury or shock, do not perform repair or adjustment activities with
the power switch on or electrical power applied to the machine.
1. Un-dock (remove) the HCF. (REP 7.3.3)
2. Remove the plastic Rear Cover.
• Remove the (4) securing screws.
3. Disconnect all of the connectors connected to the HCF PWB.
4. Remove the (4) screws securing the HCF PWB.
5. Remove the HCF PWB.
Replacement
1. To install, carry out the removal steps in reverse order.
Takeaway Roll (includes Shaft)
To Next Page
