Xerox WorkCentre 5230 User Manual

February, 2008
4-139
WorkCentre 5225, 5230
REP 16.2.6, REP 16.2.7
Repairs and Adjustments
Launch Version
REP 16.2.6 Foot Cover
Parts List on PL 23.6
Removal
WARNING
To avoid personal injury or shock, do not perform repair or adjustment with electrical
power applied to the machine.
1. Remove the Screw (1). (Figure 1)
2. Remove the Foot Cover.

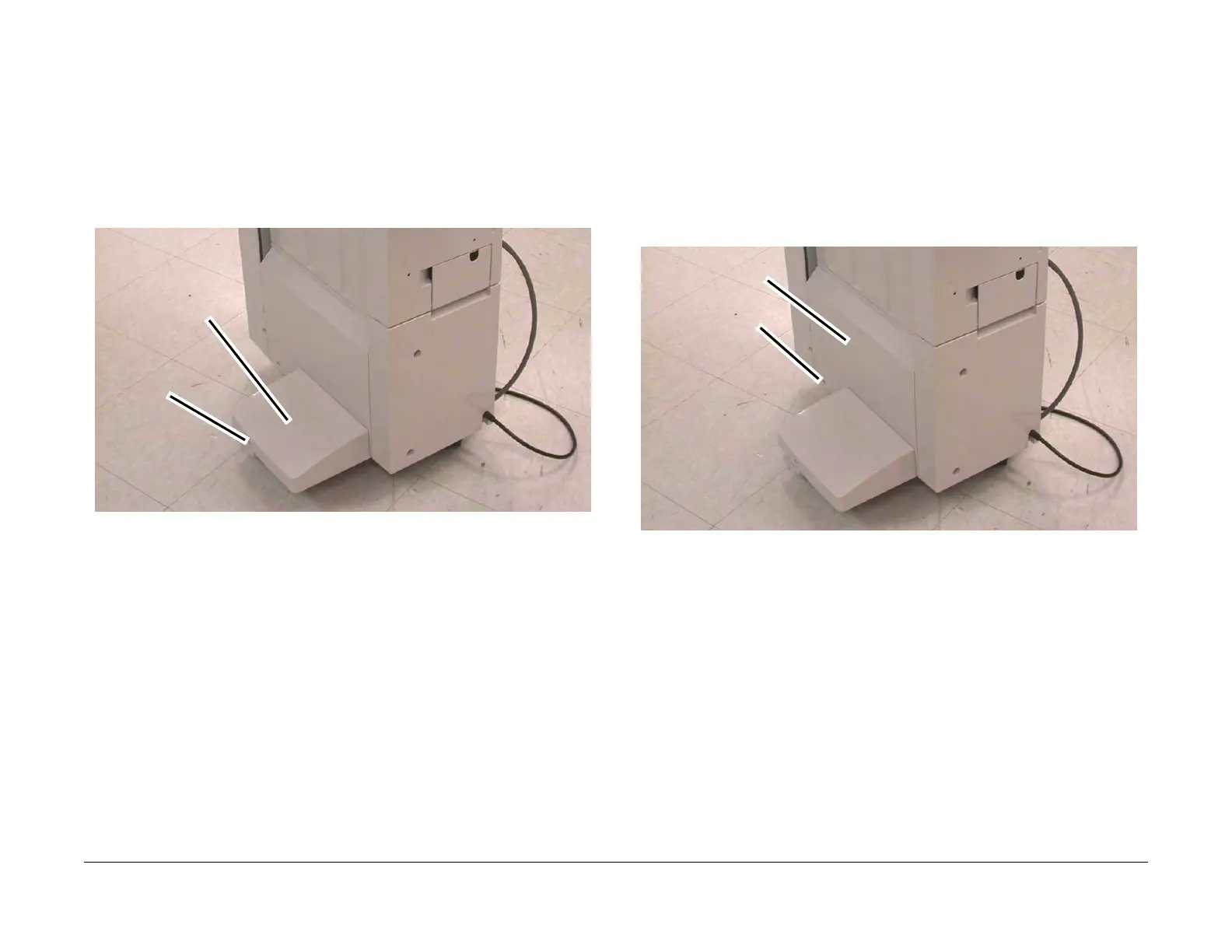

Figure 1 Removing the Foot Cover (j0st41699)
Replacement
1. Reverse the removal procedure for replacement.
REP 16.2.7 Stacker Lower Cover
Parts List on PL 23.6
Removal
WARNING
To avoid personal injury or shock, do not perform repair or adjustment with electrical
power applied to the machine.
1. Remove the Foot Cover. (REP 16.2.6)
2. Remove the Screws (2). (Figure 1)
3. Remove the Stacker Lower Cover.
Figure 1 Removing the Stacker Lower Cover (j0st41699)
Replacement
1. Reverse the removal procedure for replacement.
Screw
Foot Cover
Stacker Lower Cover
Screw (2)

Xerox WorkCentre 5230 Specifications

General

Maximum print size	A3 (297 x 420 mm)
Standard input capacity	500 sheets
Internal memory	No MB
Type	Digital copier
