WorkCentre 5225, 5230
REP 5.1.1
Repairs and Adjustments
Launch Version
REP 5.1.1 Fuser Unit
Parts List on PL 5.1
Removal
WARNING
To avoid personal injury or shock, do not perform repair or adjustment with electrical
power applied to the machine.
CAUTION
To prevent data loss when the power is turned off, please note the following.
FAX Models
Check that the “Stored Documents” lamp is not on, and press the Job Status button to ensure
that there are no jobs in progress.
Printer Models
Check that “Ready to Print/Send” is displayed on the Control Panel display.
CAUTION
Do not start servicing until the Fuser has cooled down.
1. Open the L/H Upper Cover.
2. Remove the Fuser Unit. (Figure 1)
1.Free the knobs (x2) by turning them.
2.Hold the Fuser by the handles (x2).

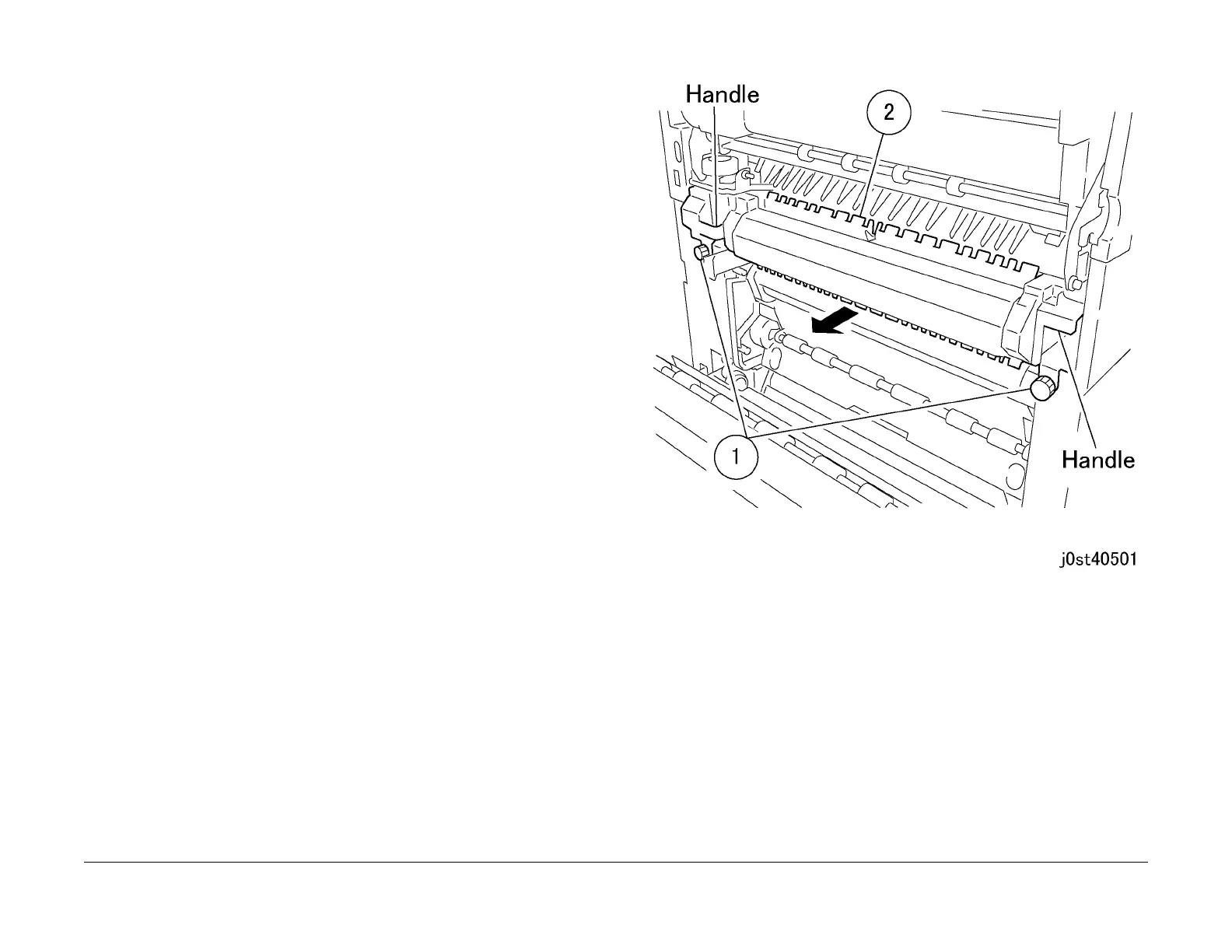

Figure 1 Removing the Fuser Unit (j0st40501)
Replacement
1. To install, carry out the removal steps in reverse order.
