Xerox WorkCentre 5230 User Manual

February, 2008
4-169
WorkCentre 5225, 5230
REP 16.3.8
Repairs and Adjustments
Launch Version
3. Remove the Stapler Lower Cover. (Figure 2)
a. Remove the Screw (1).
b. Remove the Stapler Lower Cover.

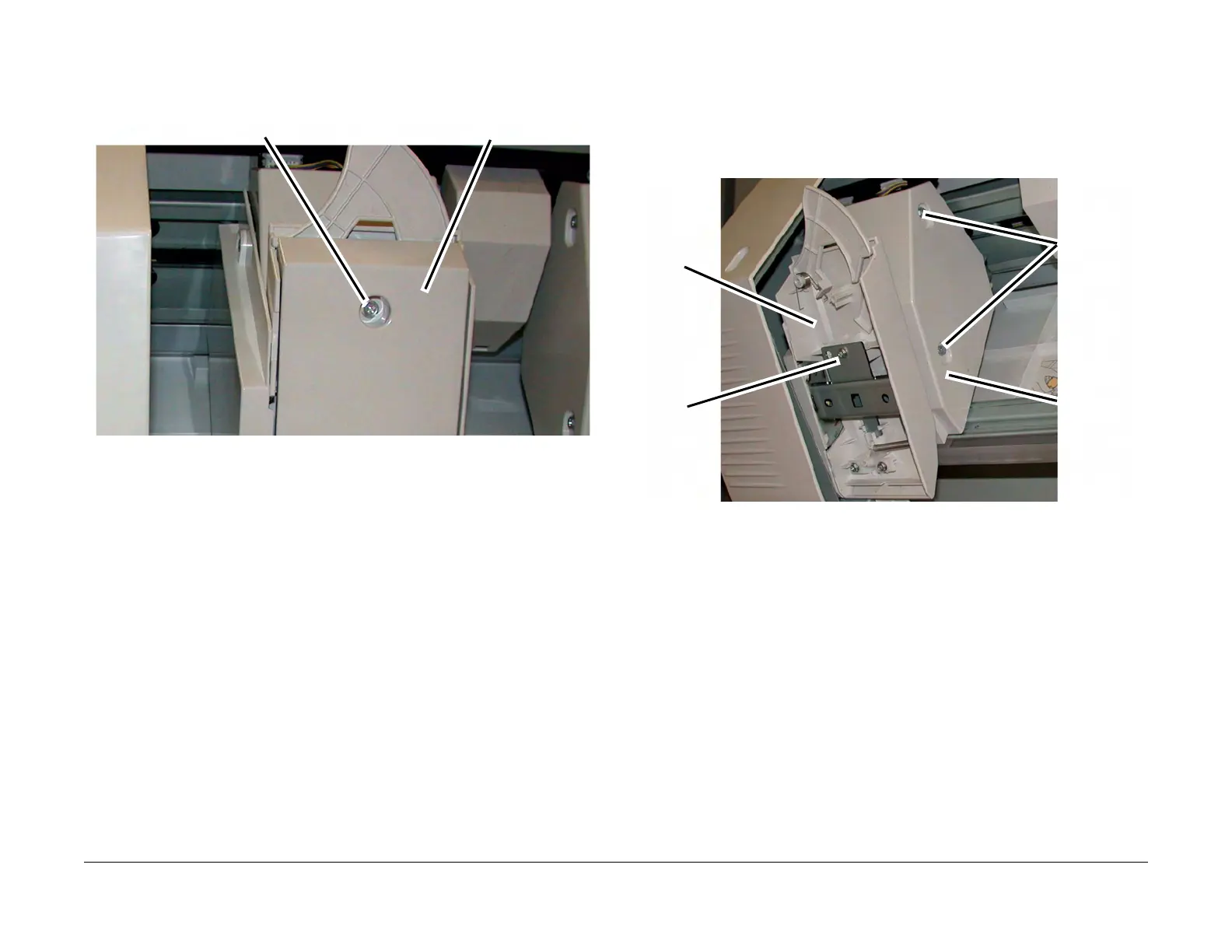

Figure 2 Removing the Stapler Lower Cover (j0st41695)
4. Remove the Chute. (Figure 3)
a. Remove the Screw (1).
b. Remove the Chute.
5. Remove the Stapler Rear Cover. (Figure 3)
a. Remove the Screws (2).
b. Remove the Stapler Rear Cover.
Figure 3 Removing the Chute and Stapler Rear Cover (j0st41694)
Screw
Stapler Lower Cover
Chute
Screw
Screws
Stapler
Rear Cover

Xerox WorkCentre 5230 Specifications

General

Maximum print size	A3 (297 x 420 mm)
Standard input capacity	500 sheets
Internal memory	No MB
Type	Digital copier
